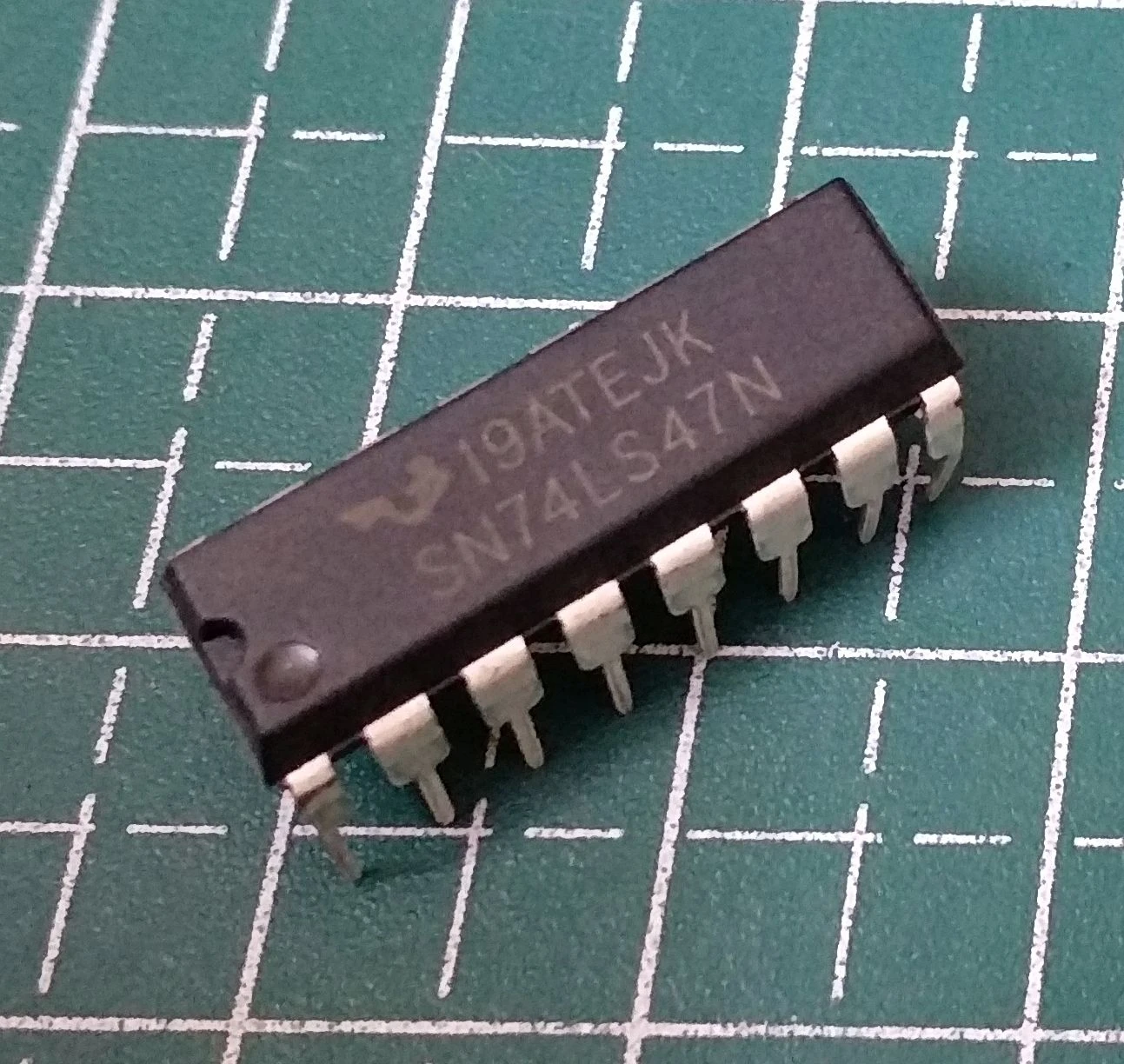

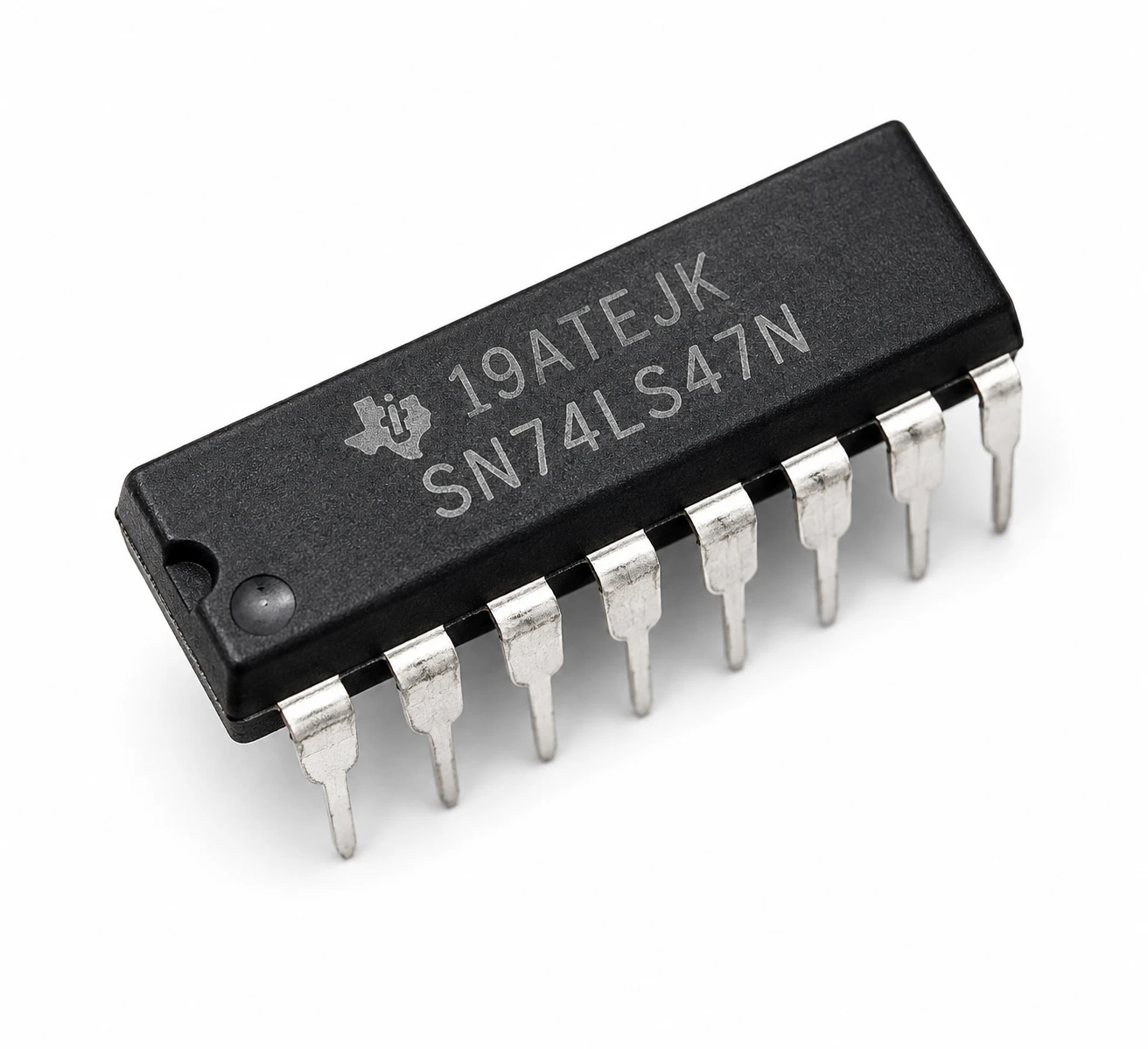

The SN74LS47N is a BCD to 7-Segment Decoder/Driver IC designed for controlling common-anode 7-segment LED displays in digital electronic systems. It converts Binary Coded Decimal (BCD) inputs into the required segment outputs for numeric display applications.
Built using Low Power Schottky TTL technology, this IC is widely used in digital counters, clocks, calculators, industrial display systems, embedded systems, and educational electronics projects.
| Specification | Details |
|---|---|
| Model | SN74LS47N |
| IC Type | BCD to 7-Segment Decoder/Driver |
| Logic Family | LS TTL |
| Display Type | Common Anode |
| Output Type | Open Collector |
| Package Type | DIP-16 |
| Mount Type | Through Hole |
| Operating Voltage | 5V Typical |
| HSN Code | 85423900 |
