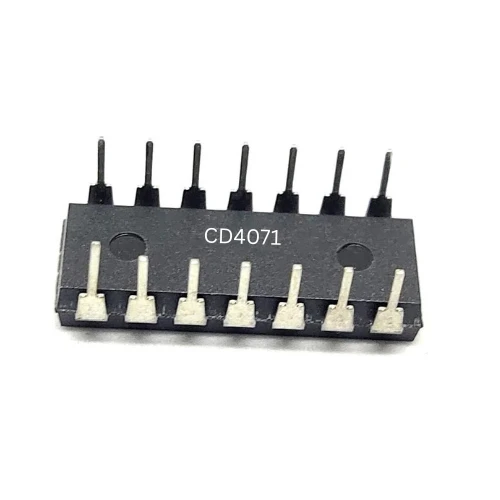

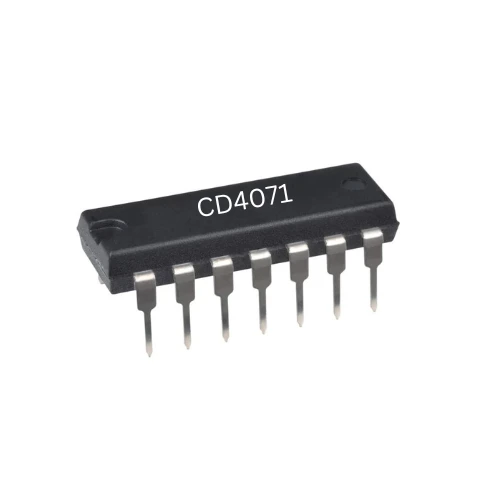

CD4071 Quad 2-Input OR Gate IC DIP-14 Package
SKU: 166837
(0) 0 Reviews 0 Orders 0 Wish listed
₹22.00 (Excluded Tax)
Quantity:
Total price :
  (Tax : )
Out of stock

The CD4071 IC is a quad 2-input OR gate and is part of the CD4000 IC series. It is built using complementary MOS (CMOS) technology, which incorporates N-channel and P-channel enhancement-mode transistors.

Technical Specifications:

  • Typical Operating Voltage: 5V
  • Operating Voltage Range: -0.5V to +20V
  • DC Input Current (Max): ±10mA
  • Power Dissipation (Max): 500mW
  • Minimum Logic Low Voltage (@ 5V): 1.5V
  • Minimum Logic High Voltage (@ 5V): 3.5V
  • Propagation Delay (@ 5V, Max): 250ns
  • Transition Time (@ 5V, Max): 200ns

Features:

  • Four independent 2-input OR gates
  • Buffered outputs
  • Wide operating voltage range
  • Low power consumption with TTL compatibility

Applications:

  • Designing basic logic circuits or alarm systems
  • Encoders and decoders
  • Designing multiplexers and de-multiplexers of any size
