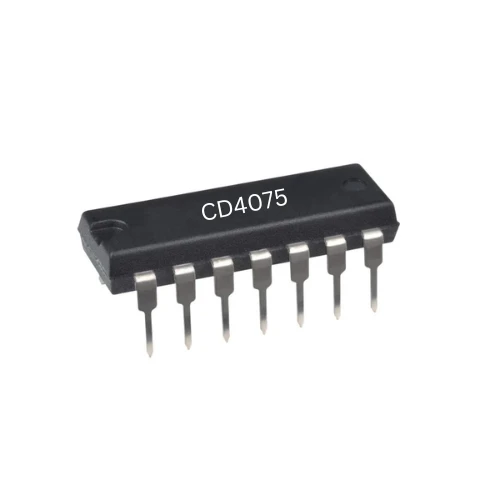

CD4075 Triple 3-Input OR Gate IC DIP-14 Package
SKU: 105365
(0) 0 Reviews 0 Orders 0 Wish listed
₹12.00 (Excluded Tax)
Quantity:
Total price :
  (Tax : )

The CD4075 IC, part of the CD4000 series, is a triple 3-input OR gate. Built with standard CMOS technology, it integrates positive-logic OR functionality, making it a valuable addition to the family of CMOS logic gates for digital system designs.

Technical Specifications:

  • Supply Voltage (VCC): 3V to 18V
  • Number of Channels: 2
  • Inputs per Channel: 4
  • Input Type: Standard CMOS
  • Output Type: Push-Pull
  • Speed: Standard (Propagation Delay > 50ns)
  • Max Low-Level Output Current (IOL): 6.8mA
  • Max High-Level Output Current (IOH): -6.8mA
  • Max Data Rate: 8Mbps
  • Operating Temperature Range: -55°C to 125°C

Key Features:

  • Three independent 3-input OR gates
  • Medium-speed operation for efficient logic processing
  • Wide operating voltage range for flexible system integration
  • Low power consumption with CMOS technology

Applications:

  • Industrial automation and plant control systems
  • Safety and protective measurement circuits
  • Temperature or pressure threshold detection systems
