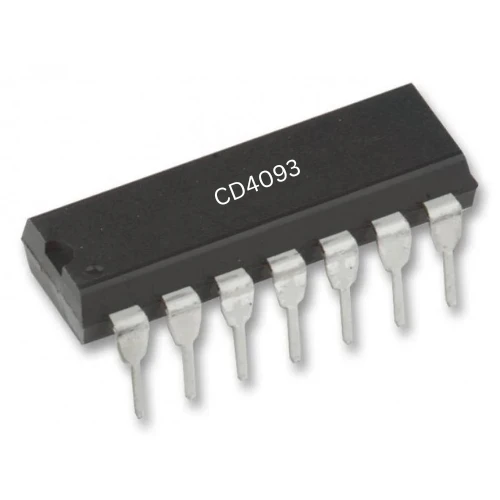

CD4093 - Quad 2-Input NAND Schmitt Trigger IC

In Stock

SKU: 189028

CD4093 - Quad 2-Input NAND Schmitt Trigger IC

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹15.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Download Data Sheet

Overview
Reviews

The CD4093BE is a versatile Quad 2-Input NAND Schmitt Trigger IC, designed for various applications where signal shaping and noise immunity are critical. Each gate in the IC functions as a two-input NAND gate with Schmitt-trigger action on both inputs. The IC switches at different voltage levels for positive- and negative-going signals, with the hysteresis voltage (VH) representing the difference between these points.

Key Features

Integrated Schmitt Trigger Action: Ensures noise immunity and clean transitions in signal processing.
Four Independent Gates: Each circuit operates as a 2-input NAND gate with Schmitt-trigger inputs.
Wide Operating Voltage Range: Functions efficiently between 3V to 18V.
Low Power Consumption: CMOS technology minimizes power requirements.
Standard Package Options: Available in DIP-14 and other standard formats for flexibility in mounting and integration.

Specifications

Manufacturer Part No: CD4093BE
Manufacturer: Texas Instruments
Logic Family: CD4000
Series: CD4093B
Logic Function: NAND
Logic Type: CMOS
Output Type: CMOS
Number of Bits: 4
Number of Gates: 4
Input Lines per Gate: 2
Output Lines per Gate: 1
Propagation Delay Time: 380 ns
Input Type: Schmitt Trigger
Supply Voltage: 3V to 18V
Operating Supply Current: 60 µA
Quiescent Current: 40 nA
Operating Temperature Range: -55°C to +125°C
Mounting Style: Through Hole
Package/Case: PDIP-14
Weight: 1 gm

Applications

Wave and pulse shaping circuits
High-noise environment systems
Monostable multivibrators
Astable multivibrators
NAND logic implementations

The CD4093BE is ideal for applications requiring stable operation in noisy environments and precise signal conditioning. Its robust design and wide operating range make it a preferred choice for engineers and designers in digital and analog circuit systems.
