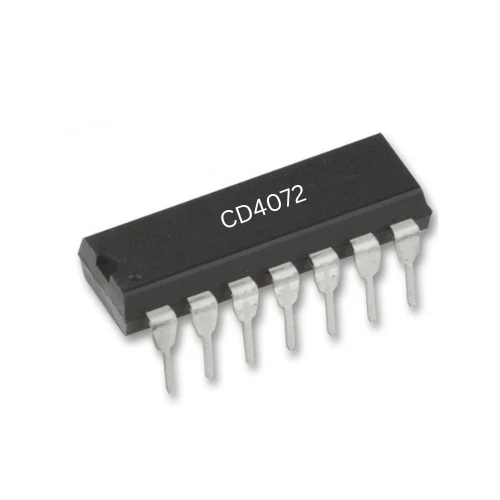

CD4072 Dual 4-input OR Gate IC DIP-14 Package

In Stock

SKU: 108391

CD4072 Dual 4-input OR Gate IC DIP-14 Package

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹16.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

The CD4072 IC, a member of the CD4000 series, is a triple 3-input OR gate. It provides a reliable solution for implementing the positive-logic OR function and extends the capabilities of the CMOS gate family, making it suitable for various digital logic applications.

Technical Specifications:

Supply Voltage (VCC): 3V to 18V
Number of Channels: 2
Inputs per Channel: 4
Input Type: Standard CMOS
Output Type: Push-Pull
Speed: Standard (Propagation Delay > 50ns)
Max Low-Level Output Current (IOL): 6.8mA
Max High-Level Output Current (IOH): -6.8mA
Max Data Rate: 8Mbps
Operating Temperature Range: -55°C to 125°C

Key Features:

Three independent 3-input OR gates
Buffered output for signal integrity
Supports a wide range of operating voltages
Low power consumption with TTL compatibility

Applications:

Doorbell systems
Industrial plantation automation
Safety and protective circuits
