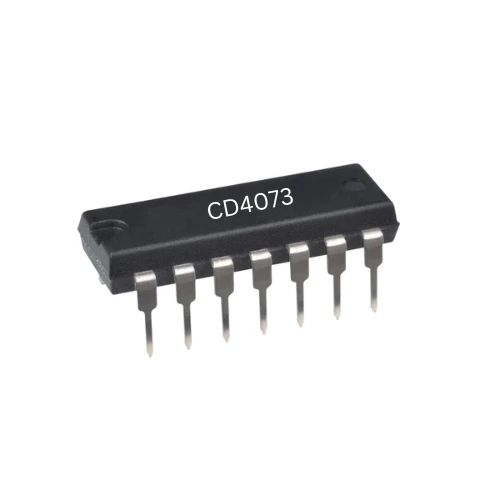

CD4073 Triple 3-Input AND Gate IC DIP-14 Package

In Stock

SKU: 181289

CD4073 Triple 3-Input AND Gate IC DIP-14 Package

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹12.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

The CD4073 IC is a triple 3-input AND gate designed using complementary MOS (CMOS) technology, incorporating P-type and N-type MOSFETs. This IC enables system designers to implement the AND gate logic function and expands the capabilities of the CMOS gate family.

Technical Specifications:

Number of Bits: 3-bit
Number of Input Lines: 3 inputs
Number of Output Lines: 1 output
High-Level Output Current: -1.5mA
Low-Level Output Current: 1.5mA
Propagation Delay Time: 120ns
Operating Supply Voltage: 3V to 18V
Operating Supply Current: 25µA
Quiescent Current: 20nA
Operating Temperature Range: -55°C to +125°C

Key Features:

Three independent 3-input AND gates
Medium-speed operation for versatile applications
Wide operating voltage range for flexibility
Low-power CMOS design for energy efficiency

Applications:

Frequency measurement
Enable and inhibit gate logic
