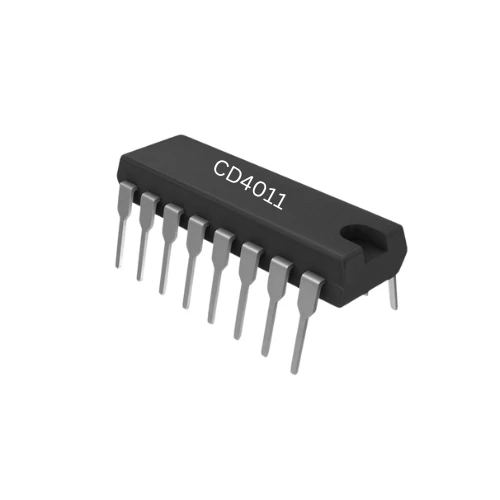

CD4011 Integrated circuit NAND gate

In Stock

SKU: 114795231

CD4011 Integrated circuit NAND gate

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹45.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

The CD4026B ICs are made up of a 5-stage Johnson decade counter and an output decoder. The decoder changes the Johnson counter's signals into a format that can directly control a 7-segment display. These ICs are especially useful for display applications where low power consumption and fewer components are needed.

Features of CD4026 Decade Counters/Dividers:

Combines counting and 7-segment display decoding in a single package.
Simple connection to 7-segment displays.
Works across a wide range of frequencies, from DC up to 6 MHz (typical) at a supply voltage of 10 V.
Perfect for low-power display applications.
Includes display enable output (specific to CD4026B).
Features "ripple blanking" and lamp test functions (specific to CD4033B).
Tested for low standby power consumption at 20 V.
Consistent, balanced output performance.
Supports operation at 5 V, 10 V, and 15 V supply levels.
Clock inputs are designed with Schmitt trigger functionality for better signal stability.

Applications of CD4026 Decade Counters/Dividers:

Counting and displaying numbers on 7-segment decimal displays.
Dividing frequencies and displaying results on 7-segment displays.
Used in clocks, watches, and timers (e.g., counters for hours, minutes, and seconds).
Drives displays in meter and measurement applications.
