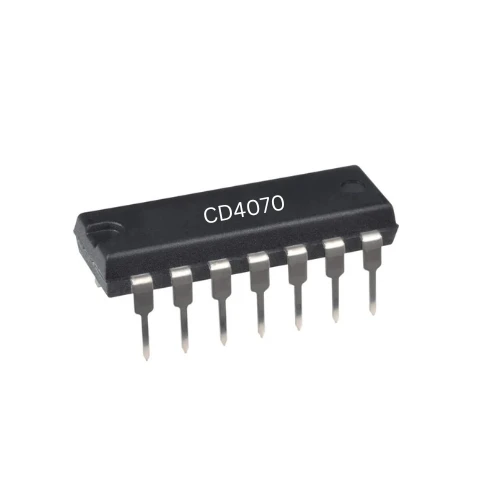

CD4070 Quad 2-Input Exclusive-OR (XOR) Gate IC DIP-14 Package

CD4070 Quad 2-Input Exclusive-OR (XOR) Gate IC DIP-14 Package
SKU: 154699

(0) 0 Reviews 0 Orders 0 Wish listed

₹36.00 (Excluded Tax)

Quantity:

Total price :

(Tax : )

Overview
Reviews

The CD4070 is a versatile digital logic IC that provides four independent XOR (exclusive OR) gates, each with two inputs. XOR gates output a high signal (1) only when the number of high inputs is odd. This IC is commonly used in applications such as binary addition, error detection, and data manipulation in digital systems.

Key Features

Quad XOR Gates: Contains four independent 2-input XOR gates, ideal for multiple simultaneous operations.
Wide Operating Voltage Range: Functions efficiently within 3V to 15V, making it compatible with a variety of logic levels.
Low Power CMOS Technology: Ensures minimal power consumption, suitable for battery-operated devices.
High Noise Immunity: Provides strong noise margins, ensuring reliable performance in noisy environments.
Standard Pin Configuration: Packaged in a DIP-14 format for straightforward integration into breadboards and prototyping setups.

Specifications

Logic Family: CMOS
Number of Gates: 4
Inputs per Gate: 2
Operating Voltage Range: 3V to 15V
Propagation Delay: Approximately 70ns at VDD = 10V
Input Voltage Thresholds (VIH/VIL): Typically 70%/30% of VDD
Output Voltage Levels (VOH/VOL): Close to VDD/VSS
Package Type: DIP-14
Operating Temperature Range: -40°C to +85°C (standard version)

The CD4070 is an essential IC for digital circuit design, offering flexibility and reliability for a wide range of applications. Its compatibility with CMOS logic and low power consumption makes it a popular choice for both hobbyists and professional engineers.
