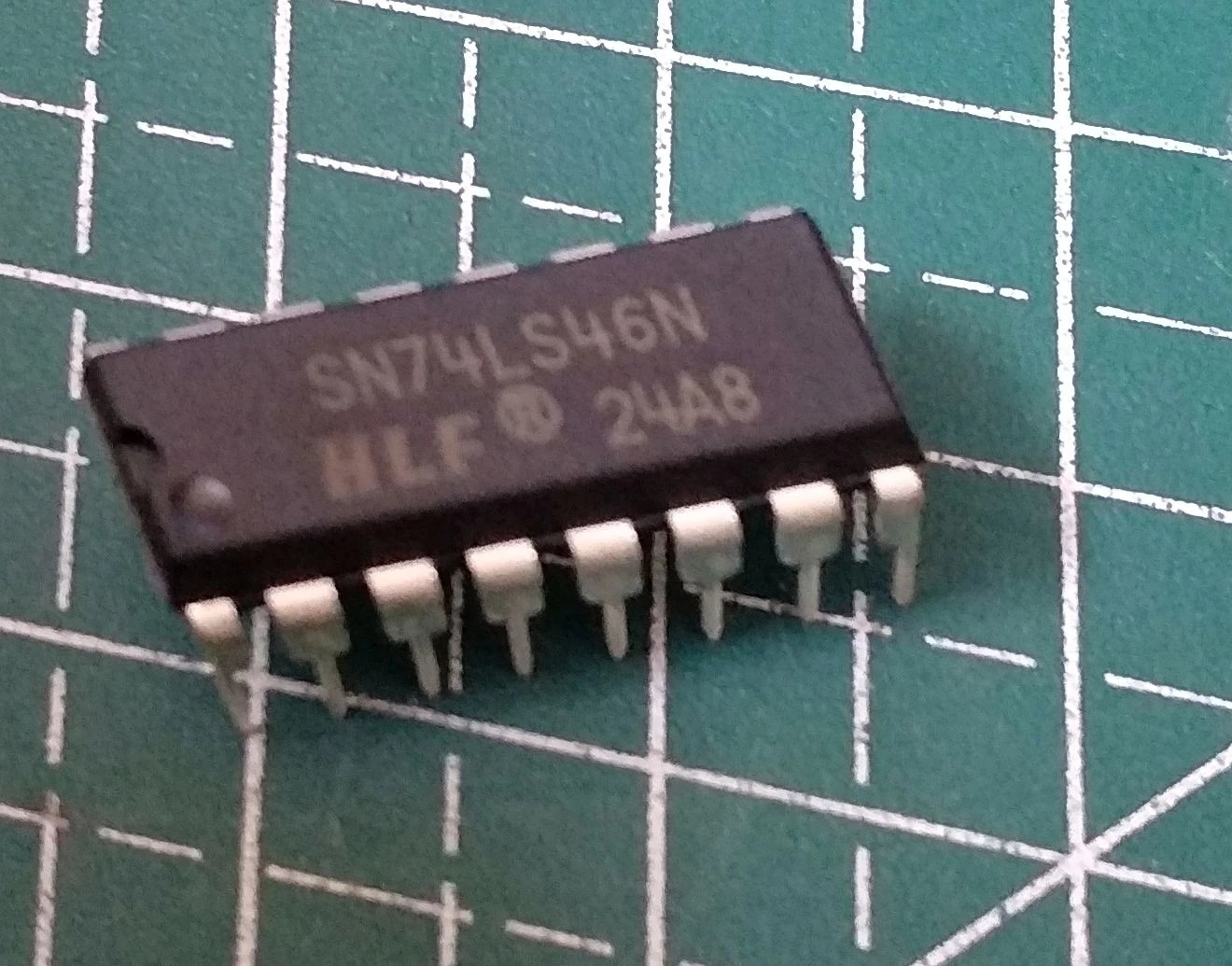

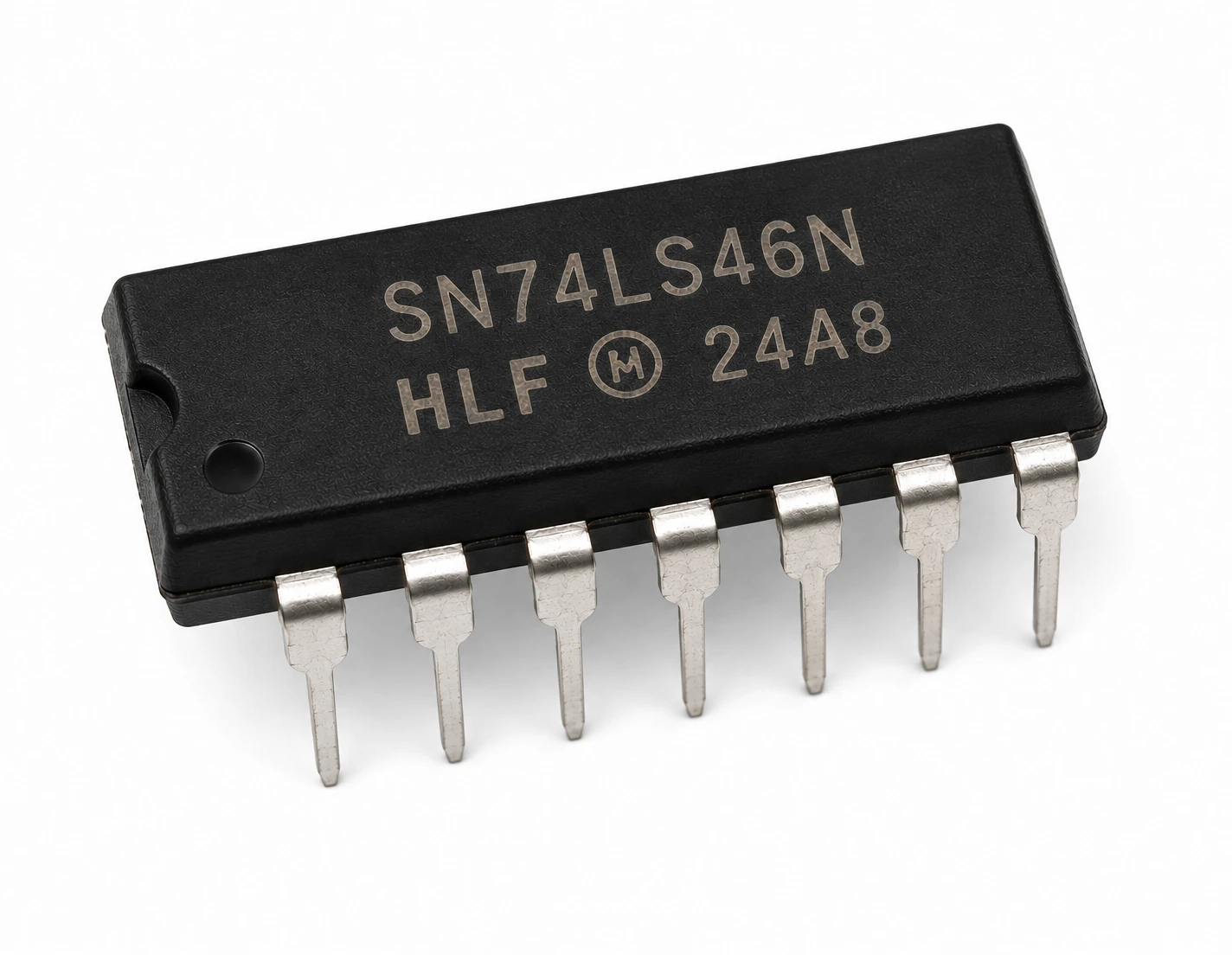

SN74LS46N BCD to 7-Segment Decoder/Driver IC

SN74LS46N BCD to 7-Segment Decoder/Driver IC
SKU: R4-D-6-11

(0) 0 Reviews 0 Orders 0 Wish listed

₹390.00 (Excluded Tax)

Quantity:

Total price :

(Tax : )

Overview
Reviews

Description

The SN74LS46N is a BCD to 7-Segment Decoder/Driver IC designed for driving common-cathode 7-segment LED displays in digital electronic systems. It converts Binary Coded Decimal (BCD) input data into corresponding segment control outputs for numeric display applications.

Built using Low Power Schottky TTL technology, this IC is widely used in digital counters, clocks, calculators, embedded systems, industrial display systems, and educational electronics projects.

Features

BCD to 7-segment decoder/driver
Supports common-cathode displays
Low Power Schottky TTL technology
High-speed logic operation
Reliable display driving capability
TTL compatible inputs and outputs
DIP-16 through-hole package
Suitable for numeric display systems

Product Specifications

Specification	Details
Model	SN74LS46N
IC Type	BCD to 7-Segment Decoder/Driver
Logic Family	LS TTL
Display Type	Common Cathode
Package Type	DIP-16
Mount Type	Through Hole
Operating Voltage	5V Typical
HSN Code	85423900
