Description

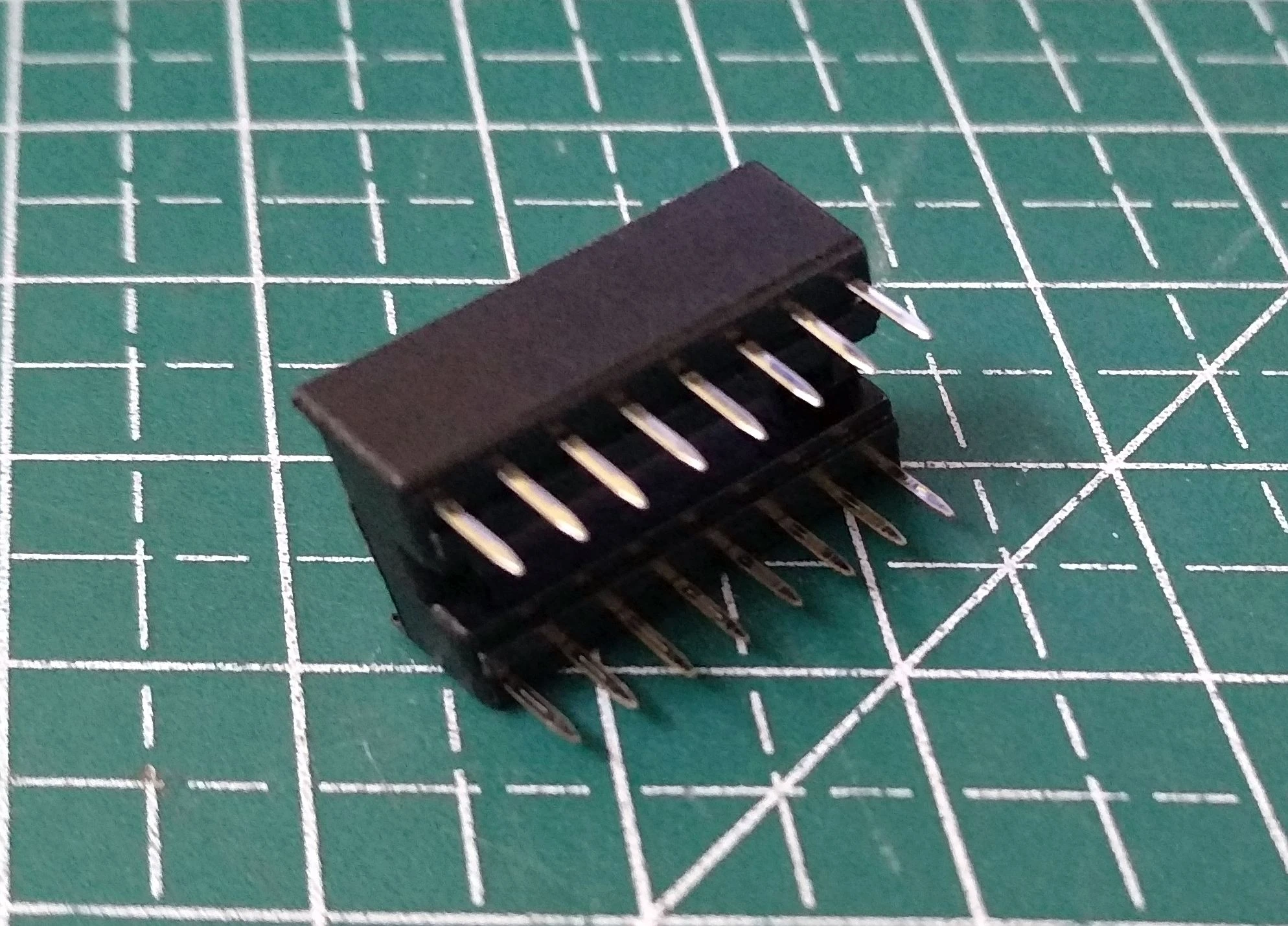

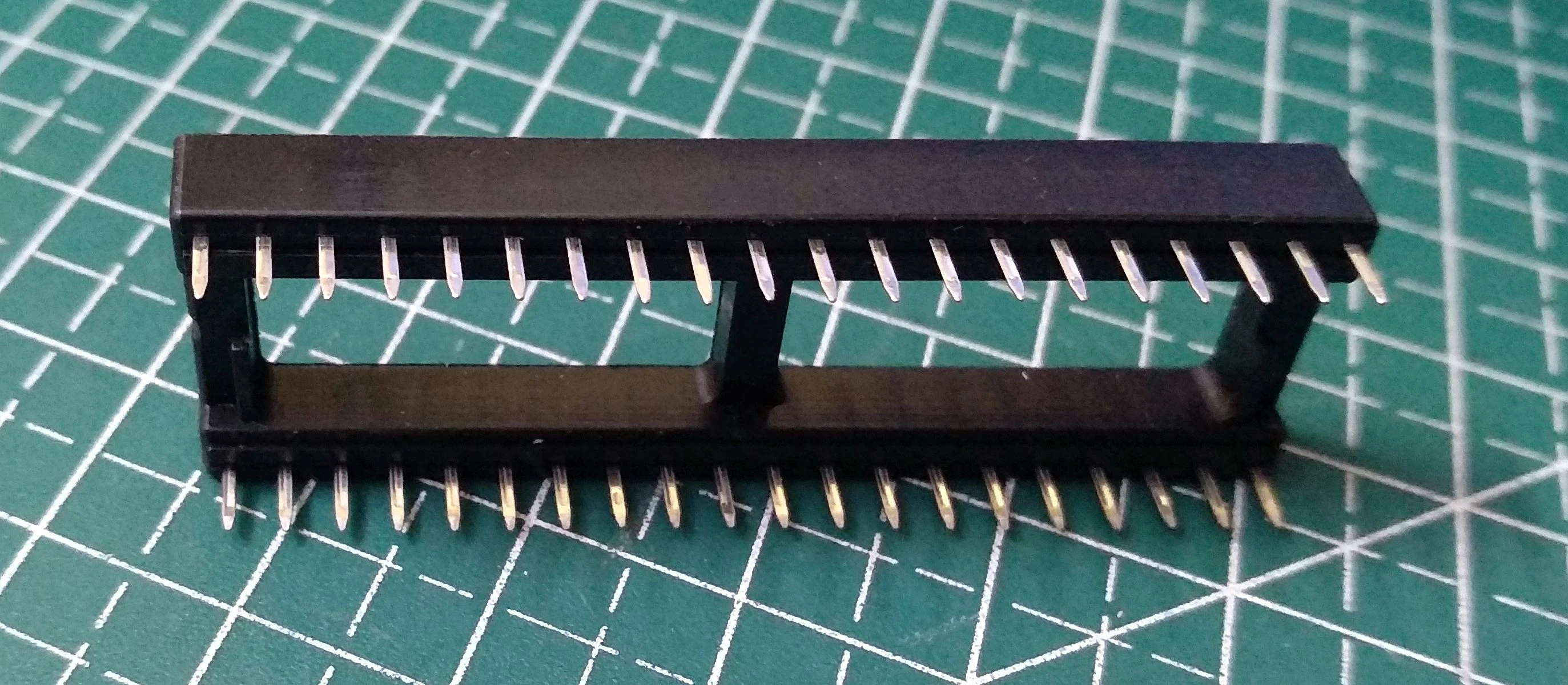

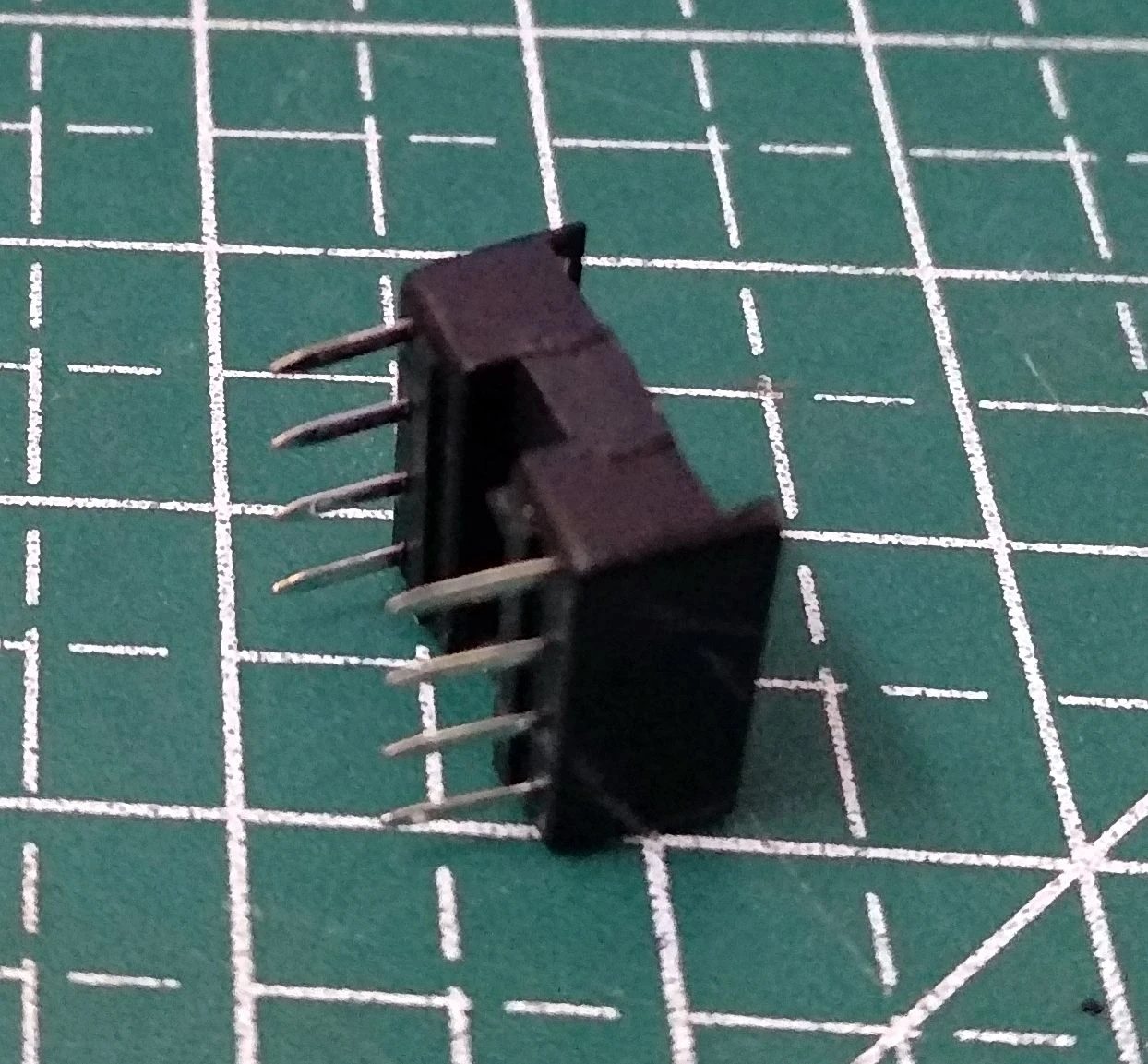

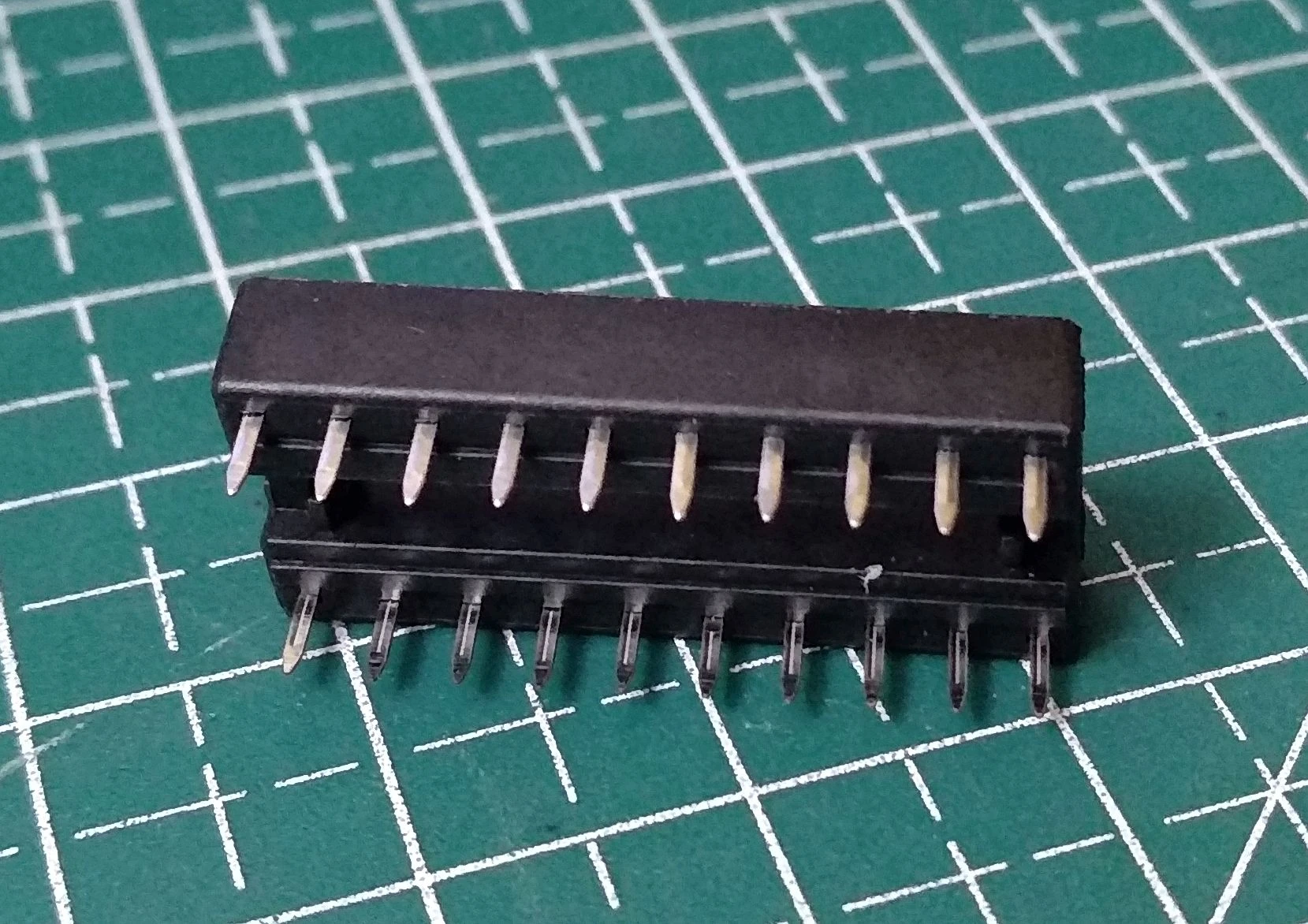

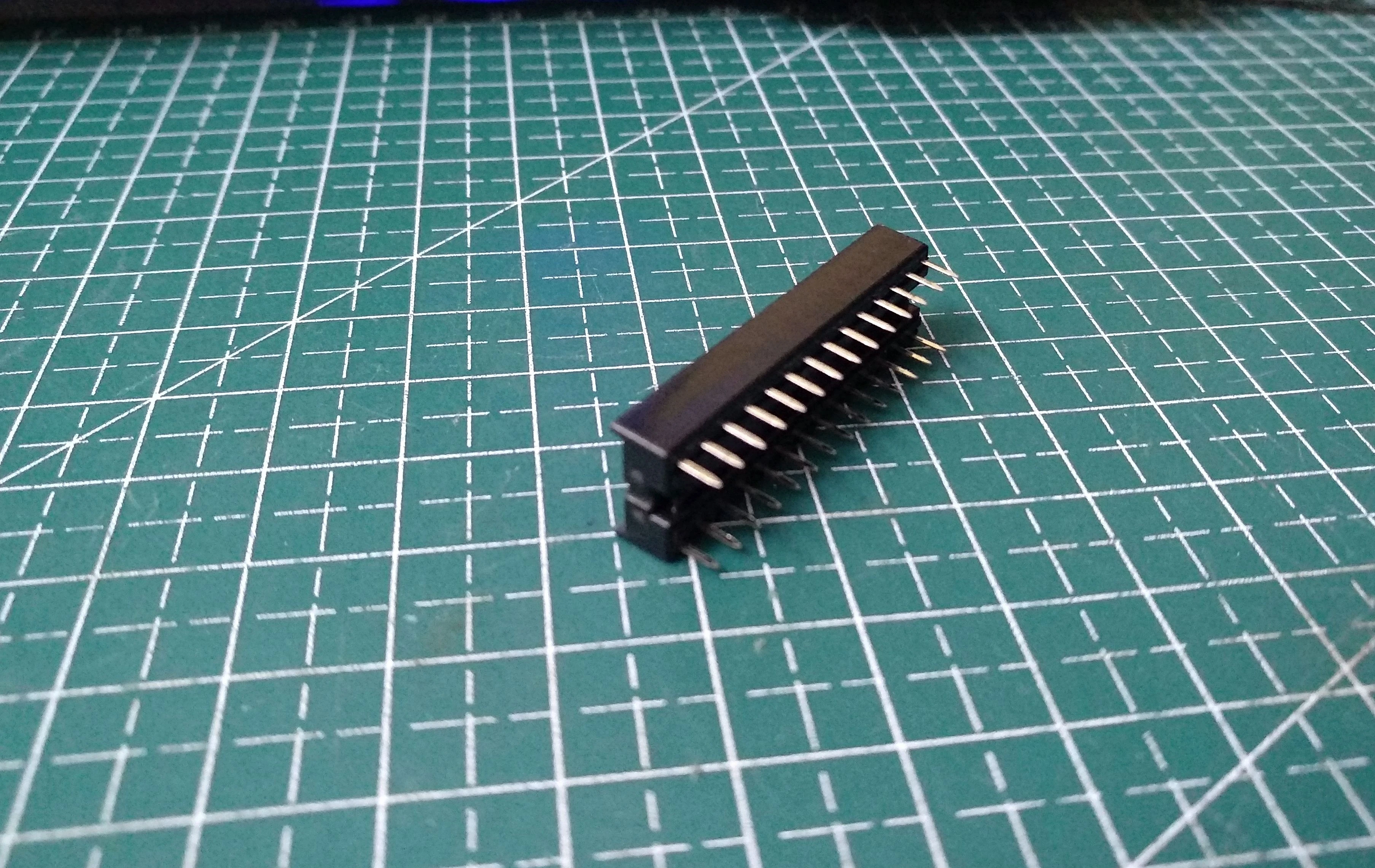

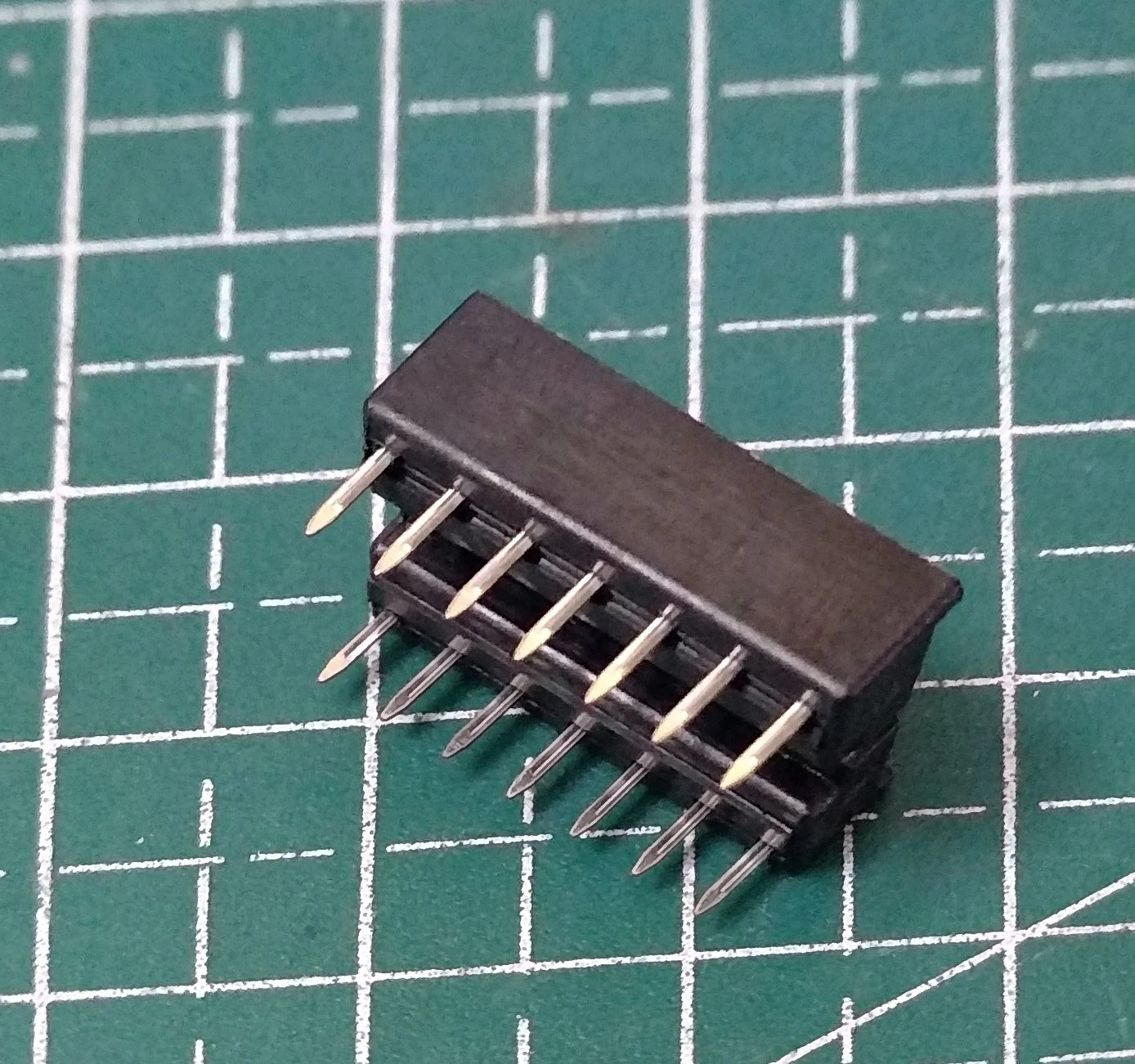

The IC Base / DIP IC Socket Series is designed for securely mounting DIP integrated circuits on PCBs without directly soldering the IC. These sockets help protect ICs from heat damage during soldering and allow easy replacement, testing, and maintenance of components.

Manufactured using durable insulating material with high-quality metal contacts, these IC bases are widely used in electronics prototyping, embedded systems, Arduino projects, repair work, and industrial PCB applications.

Available in multiple pin configurations including 8 pin, 14 pin, 16 pin, 20 pin, 28 pin, and 40 pin variants.

Features

Standard DIP IC socket design
Through-hole PCB mounting
Easy IC insertion and removal
Prevents IC damage from soldering heat
Durable plastic body construction
Reliable metal contact pins
Reusable and long-lasting
Compatible with standard DIP package ICs
Ideal for prototyping and repair applications

Product Specifications

Specification	Details
Product Type	DIP IC Base / IC Socket
Mount Type	Through Hole
Pitch	2.54mm
Body Material	Industrial Plastic
Contact Material	Metal Alloy
Color	Black
Socket Type	DIP Socket
Available Variants	8 / 14 / 16 / 20 / 28 / 40 Pin

Applications

Arduino projects
Microcontroller circuits
Embedded systems
Electronics prototyping
Educational projects
DIY electronics
PCB development
IC testing and replacement
Industrial electronics repair

Package Includes

1 × Selected IC Base Variant

Disclaimer

Product appearance and color may slightly vary depending on manufacturing batch. Please select the correct pin configuration before placing the order.
