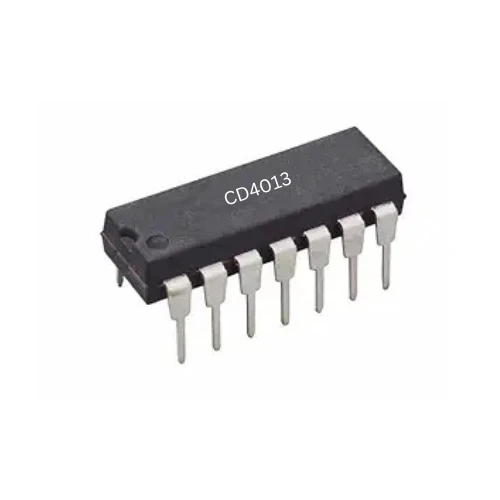

CD4013 Flip-Flop

CD4013 Flip-Flop
SKU: 180762

(0) 0 Reviews 0 Orders 0 Wish listed

₹99.00 (Excluded Tax)

Quantity:

Total price :

(Tax : )

Overview
Reviews

The CD4013 Flip-Flop is a versatile and widely used CMOS IC designed to provide two independent D-type flip-flop modules. Here's a breakdown of its features and applications:

Key Features:

Dual D-Type Flip-Flops:
- The IC contains two identical D-type flip-flops.
- Each flip-flop has dedicated pins for Data (D), Clock (C), Set (S), Reset (R), and complementary outputs Q and Q̅.
Functionality:
- D-type flip-flops store binary data on the application of a clock pulse.
- They toggle their output states based on the input logic levels.
Stable States:
- Flip-flops have two stable states, making them ideal for binary data storage.
- Data stored in the flip-flop can be changed or retained based on the control signals applied.
Technology:
- Built on CMOS technology for low power consumption and high noise immunity.

Working:

The data at the D input is latched and reflected at the output Q when a clock pulse is applied to the C (Clock) pin.
Connecting the Clock and Q output appropriately enables toggling, making it suitable for counting or dividing frequency signals.

Applications:

Simple Touch Operated Flip-Flop Switch:
- Can be used to build touch-sensitive switches that toggle between ON and OFF states.
Clap Switch:
- Ideal for sound-activated switches, where a clap triggers the state change.
Frequency Dividers:
- Used in digital circuits to divide clock frequencies.
Data Storage:
- Functions as a basic memory element in digital systems.
Counters:
- When configured properly, the IC can act as a binary counter.

Pin Configuration (General Overview):

Pins for Each Flip-Flop:
- Data (D): Input for the data to be stored.
- Clock (C): Triggers the data storage on a rising or falling edge.
- Set (S): Forces the Q output to HIGH.
- Reset (R): Forces the Q output to LOW.
- Q and Q̅: Complementary outputs.
