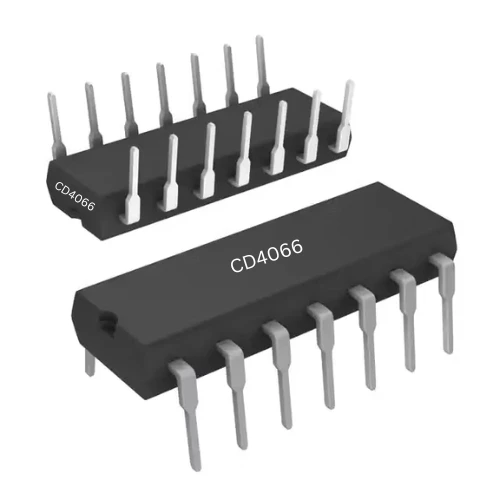

CD4066 Quad Bilateral Switch

In Stock

SKU: 134246

CD4066 Quad Bilateral Switch

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹9.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Download Data Sheet

Overview
Reviews

Product Description
The CD4066BE is a high-performance analog switch featuring four SPST (Single-Pole Single-Throw) circuits. It offers low on-state resistance and excellent channel-to-channel matching, making it ideal for signal switching applications. Operating over a wide voltage range (3V to 18V) with a bandwidth of 40MHz, this IC is designed for efficient multiplexing and demultiplexing.

Basic Information

Model Number: CD4066BE
Functionality: Multiplexer/Demultiplexer Circuit (1:1)
Number of Circuits: 4
On-State Resistance (Max): 240Ω
Channel-to-Channel Matching (ΔRon): 5Ω
Supply Voltage Range (V+): 3V ~ 18V
-3dB Bandwidth: 40MHz
Channel Capacitance (CS(off), CD(off)): 8pF
Package Type: DIP
Operating Temperature Range: -55°C ~ 125°C

Specifications

Category: Integrated Circuits (ICs)
Type: Analog Switches, Multiplexers, Demultiplexers
Series: 4000B
Packaging: Tube
Part Status: Active
Mounting Type: Through Hole
Package / Case: 14-DIP (0.300", 7.62mm width)
Supplier Device Package: 14-PDIP

Packaging & Delivery

Package Size: 10cm x 10cm x 10cm
Gross Weight: 1.000kg
Production Capacity: 10,000 PCS/Day
