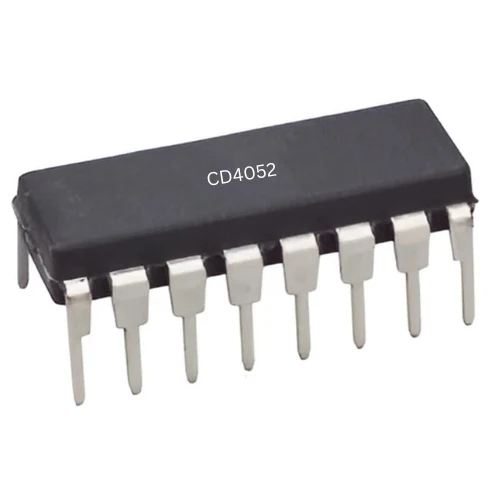

CD4052 - Differential 4-channel Multiplexer/Demultiplexer IC

CD4052 - Differential 4-channel Multiplexer/Demultiplexer IC
SKU: 186412

(0) 0 Reviews 0 Orders 0 Wish listed

₹17.00 (Excluded Tax)

Quantity:

Total price :

(Tax : )

Overview
Reviews

Key Features:

Digitally Controlled Analog Switches: Low ON resistance and minimal OFF leakage current.
Wide Signal Range: Controls analog signals up to 15Vp-p with digital signals of 3−15V.
Differential Channels: Supports four differential channels for multiplexing or demultiplexing.
Low Power Consumption: Consumes extremely low quiescent power across the full supply voltage range, independent of logic states.
Inhibit Input: Disables all channels when a logical "1" is applied.
Versatile Supply Voltage: Operates with VDD up to 18V and supports differential signals within ±VEE.

Overview:

The CD4052 IC is a differential 4-channel multiplexer/demultiplexer that efficiently switches and routes analog or digital signals. With two binary control inputs (A, B) and an inhibit input, it selects one of the four differential channel pairs for connection to the common output. The IC is designed for high-performance applications requiring low distortion and precise signal control.

Applications:
