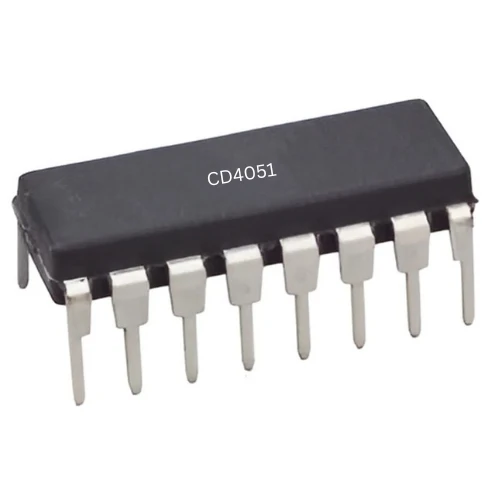

CD4051 - Single 8-channel Multiplexer/Demultiplexer IC

In Stock

SKU: 148638

CD4051 - Single 8-channel Multiplexer/Demultiplexer IC

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹16.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Key Features:

Digitally Controlled Analog Switches: Enables switching between analog signals with low ON resistance (125Ω typical) and minimal OFF leakage current (0.3 µA max).
Low Power Consumption: Consumes very low quiescent power across the entire supply voltage range, regardless of control signal logic states.
Break-Before-Make Feature: Prevents signal overlap during switching to ensure reliable operation.
Wide Operating Temperature Range: Designed to operate reliably between -55°C and 125°C.
High Bandwidth: Operates at up to 20 MHz, suitable for high-frequency applications.

Overview:

The CD4051 IC is a single 8-channel multiplexer/demultiplexer ideal for switching and routing analog or digital signals. It is constructed with CMOS technology, making it efficient and versatile for low-power and high-frequency applications. The IC can select one of the eight input/output lines and connect it to a common terminal, controlled by 3 digital input lines.

Applications:
