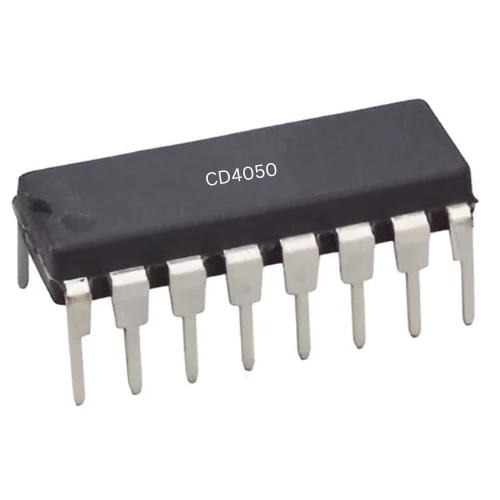

CD4050 - Hex Non-Inverting Buffer IC

In Stock

SKU: 129545

CD4050 - Hex Non-Inverting Buffer IC

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹18.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Download Data Sheet

Overview
Reviews

Key Features:

Monolithic CMOS Design: Constructed with complementary N- and P-channel enhancement mode transistors.
Logic-Level Conversion: Operates using a single supply voltage (VDD), with the input signal high level (VIH) capable of exceeding the VDD voltage.
Versatile Applications:
- Hex buffer IC
- CMOS to DTL/TTL converter
- CMOS current driver
- High-to-low logic level converter
Direct Drive Capability: At VDD = 5.0V, it can drive up to two DTL/TTL loads across the full operating temperature range.
Input Clamp Diode: Protects the IC from over-voltage conditions.

Overview:

The CD4050 Hex Non-Inverting Buffer IC is part of the CD4x CMOS series, designed for logic-level conversion and efficient buffering. With the ability to handle input signals exceeding the supply voltage, it ensures reliable performance for CMOS to DTL/TTL conversions, logic level shifting, and current driving applications.

Applications:
