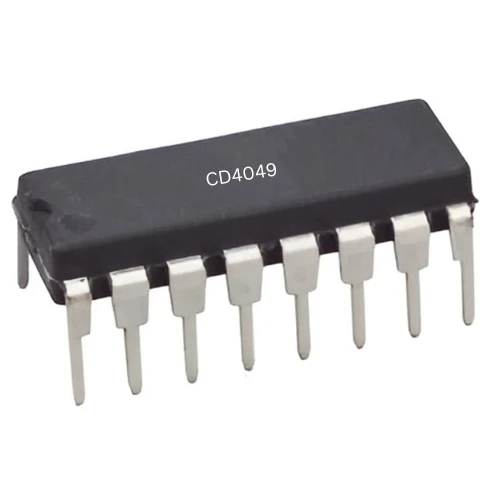

CD4049 - Hex Inverting Buffer/Converter IC

CD4049 - Hex Inverting Buffer/Converter IC
SKU: 160774

(0) 0 Reviews 0 Orders 0 Wish listed

₹19.00 (Excluded Tax)

Quantity:

Total price :

(Tax : )

Download Data Sheet

Overview
Reviews

Key Features:

Monolithic CMOS Design: Built with complementary N- and P-channel enhancement mode transistors.
Logic-Level Conversion: Operates with a single supply voltage (VDD), allowing input signal levels to exceed VDD.
Versatile Functionality:
- Hex buffer
- CMOS to DTL/TTL converter
- CMOS current driver
- High-to-low logic level converter
Direct Driving Capability: At VDD = 5.0V, supports up to two DTL/TTL loads across the full operating temperature range.
Over-Voltage Tolerant Inputs: Ensures compatibility with higher input voltages.

Overview:

The CD4049 hex inverting buffer is part of the CD4x CMOS IC series, designed for efficient logic-level conversion and signal buffering. This IC is highly flexible, supporting applications like CMOS to DTL/TTL conversions, current driving, and logic level shifting. With its unbuffered design and standard speed, it ensures reliable operation in various digital circuit implementations.
