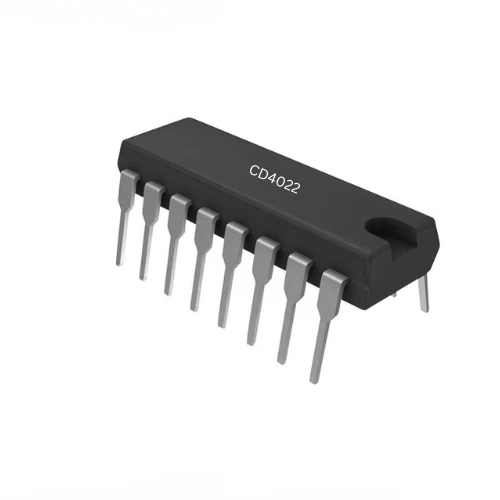

CD4022 Divide by 8 Counter/Divider

Out of Stock

SKU: 109737

CD4022 Divide by 8 Counter/Divider

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹28.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Out of stock

Overview
Reviews

The CD4022B is a 4-stage Johnson counter with 8 decoded outputs. It features inputs for CLOCK, RESET, and CLOCK INHIBIT signals. The CLOCK input circuit incorporates Schmitt trigger action, enabling pulse shaping and accommodating clock input pulses with unlimited rise and fall times.

Specifications of CD4022 Divide-by-8 Counter:

Fully static operation for reliable performance.
Medium-speed operation: 10 MHz (typical) at VDD = 10 V.
Standardized symmetrical output characteristics.
Quiescent current is 100% tested at 20 V.
Operates at 5 V, 10 V, and 15 V parametric ratings.
Complies with JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices."
