CD4016 Quad Bilateral Switch

In Stock

SKU: 104437

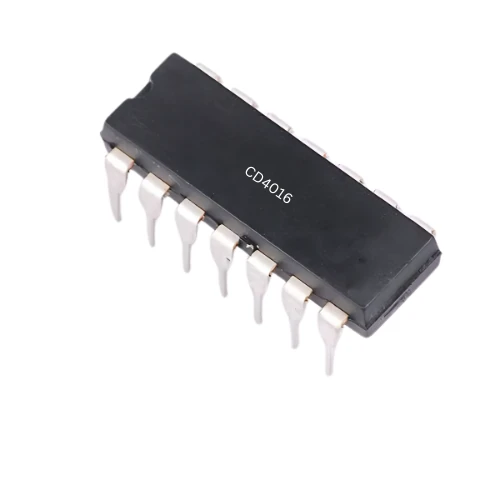

CD4016 Quad Bilateral Switch

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹18.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

The CD4016 is a quad bilateral switch designed for the transmission or multiplexing of both analog and digital signals. It is fully compatible with the CD4066B in terms of pin configuration.

Key features include:

Supply voltage range: 3V to 15V
Wide switching capability: ±7.5 VPEAK for both analog and digital signals
Typical “ON” resistance: 400Ω at 15V operation
Matched “ON” resistance: ∆RON = 10Ω (typ.) for 15V signal input
High linearity: 0.4% distortion (typ.) at fIS = 1 kHz, VIS = 5 Vp-p, VDD - VSS = 10V, RL = 10 kΩ
Low “OFF” leakage current: 0.1 nA (typ.) at VDD - VSS = 10V, TA = 25°C
High input control impedance: 1012Ω (typ.)
Low crosstalk: -50 dB (typ.) at fIS = 0.9 MHz, RL = 1 kΩ
Switch frequency response: 40 MHz (typ.) when the switch is "ON"
