Description:

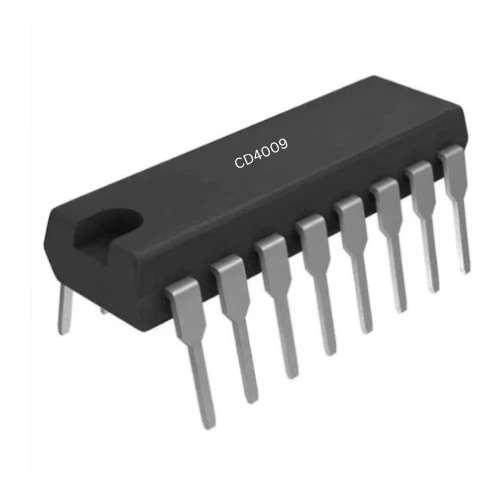

The CD4009 Hex Buffer/Converters are versatile integrated circuits designed to serve as CMOS to TTL or DTL logic-level converters. In addition to this, they can function as CMOS high-sink-current drivers, making them highly adaptable for a variety of digital logic applications. These devices are ideal for situations where logic level shifting or driving high-current loads is required. Available in 16-lead packaging options, the CD4009 is suited for a range of voltage levels and offers flexible performance for various electronic applications.
Key Features:
CMOS to TTL/DTL Logic-Level Conversion for seamless interface between different logic families
CMOS Current Sink/Source Driver capability for high-current driving applications
Highly Reliable with 100% testing for quiescent current at 20 V
Low Input Current: Maximum 1 µA at 18 V across the full temperature range and 100 nA at 18 V at 25°C
Parametric Ratings: Supports 5 V, 10 V, and 15 V operation
High-Speed Performance: Propagation delay (tpd) at nominal voltage of 140 ns
Applications:
CMOS to DTL/TTL Hex Logic-Level Conversion
CMOS Current Sink or Source Driver Applications
CMOS High-to-Low Logic-Level Conversion
Multiplexer Functionality for 1-to-6 or 6-to-1 operations
Specifications:
Technology Family: CD4000
Number of Channels: 6
Nominal Voltage: 5 V
High-Level Output Current (IOH): -1.1 mA (Max)
Low-Level Output Current (IOL): 16 mA (Max)
Operating Frequency (Max): 12 MHz
Quiescent Current (ICC): 0.03 mA (Max)
Propagation Delay (tpd): 140 ns (typical at nominal voltage)
Package Options:
16-lead Hermetic Dual-in-Line Ceramic Packages (F3A suffix)
16-lead Dual-in-Line Plastic Packages (E suffix)
Disclaimer:
Product specifications, features, and design may change over time due to product updates or improvements.
