74LS85 4-Bit Magnitude Comparator IC

In Stock

SKU: R4-D-8-4

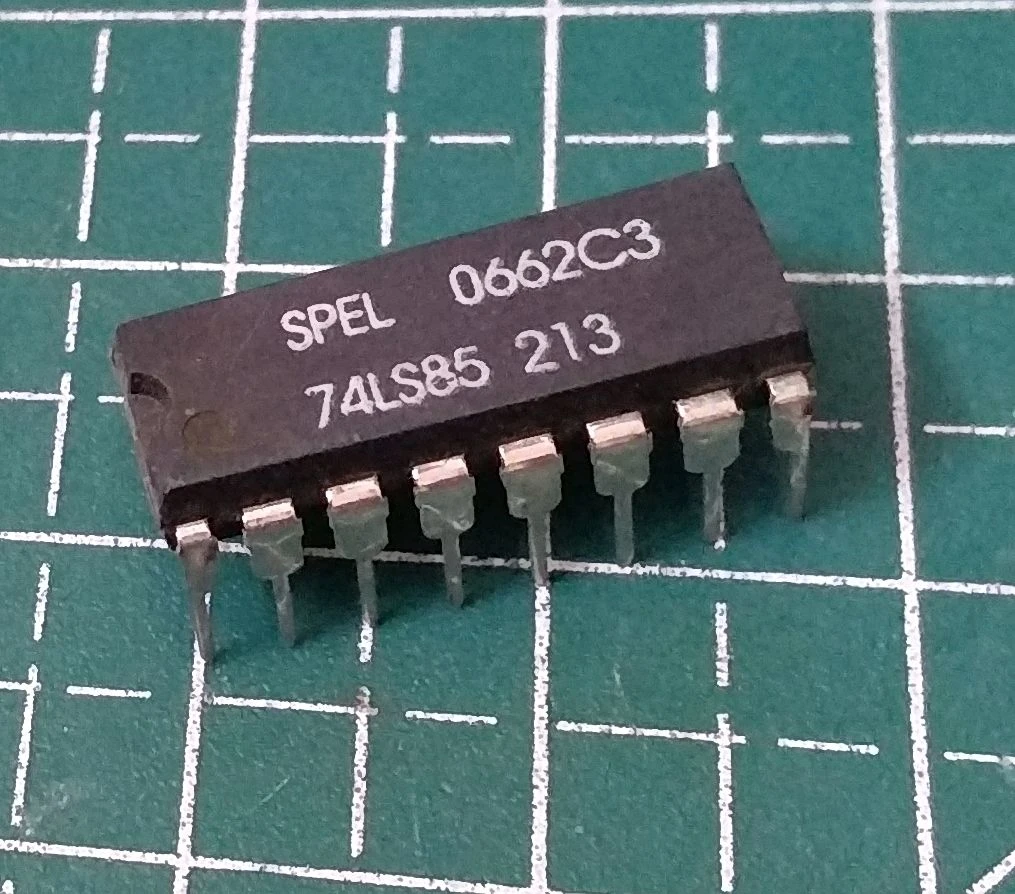

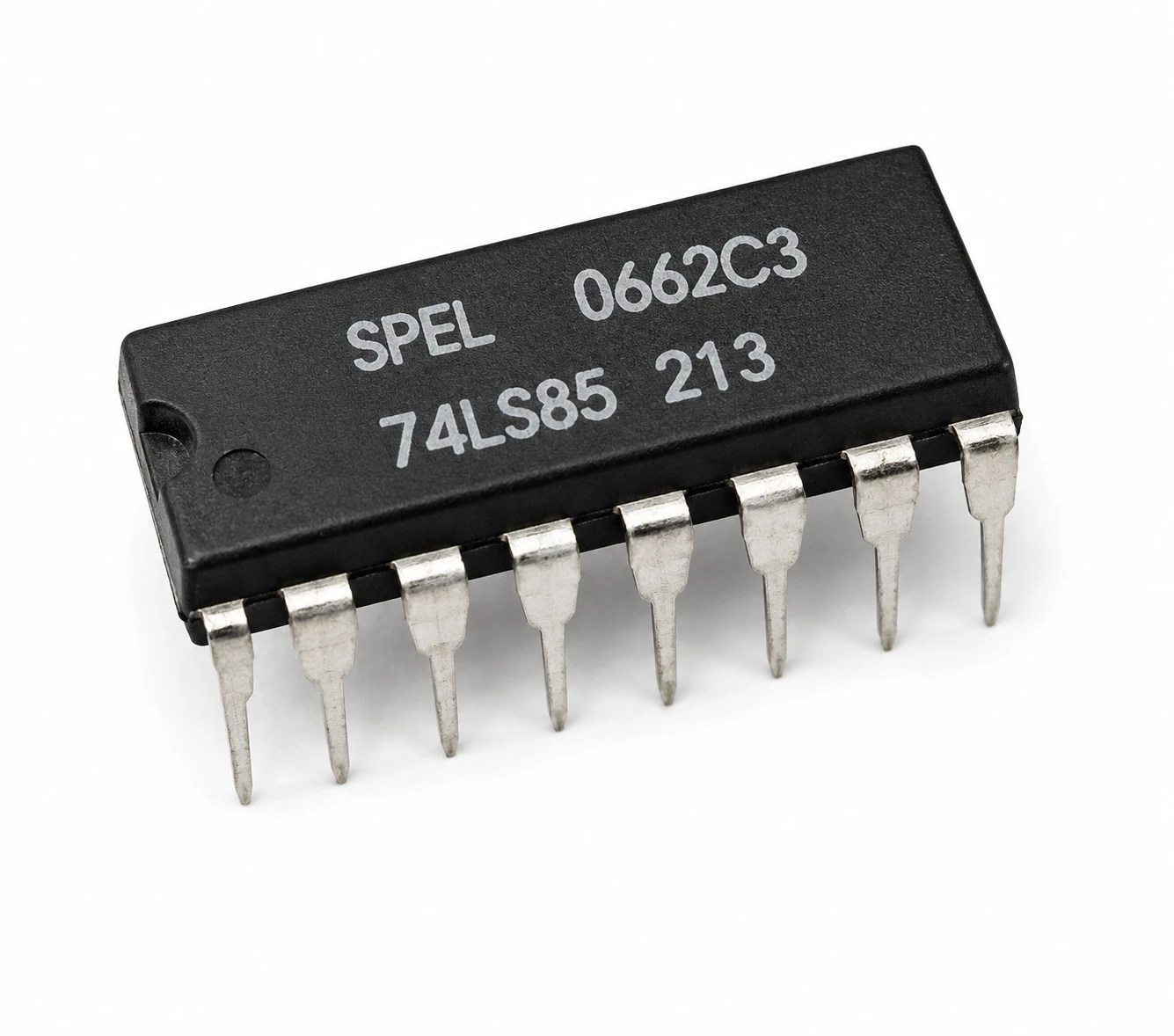

74LS85 4-Bit Magnitude Comparator IC

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹89.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description

The 74LS85 is a 4-Bit Magnitude Comparator IC from the 74LS low-power Schottky TTL logic family. It compares two 4-bit binary or BCD numbers and provides outputs indicating whether one input is greater than, less than, or equal to the other.

This IC is commonly used in digital comparison systems, arithmetic logic circuits, address matching, and data processing applications. Multiple comparator ICs can be cascaded for comparing larger binary values.

Its DIP through-hole package makes it suitable for prototyping, educational projects, industrial control systems, and embedded electronics.

Features

4-bit binary magnitude comparator
Compares two binary inputs
Outputs for Greater Than, Less Than, and Equal conditions
Cascadable for larger bit comparisons
Low-power Schottky TTL logic
High-speed operation
Reliable digital comparison
Through-hole DIP package

Product Specifications

Specification	Details
Model	74LS85
IC Type	4-Bit Magnitude Comparator
Logic Family	74LS TTL
Package Type	DIP
Mounting Type	Through Hole
Operating Voltage	5V
Technology	Low-Power Schottky TTL
Number of Bits	4-Bit
Output Functions	A>B, A
HSN Code	85423900
