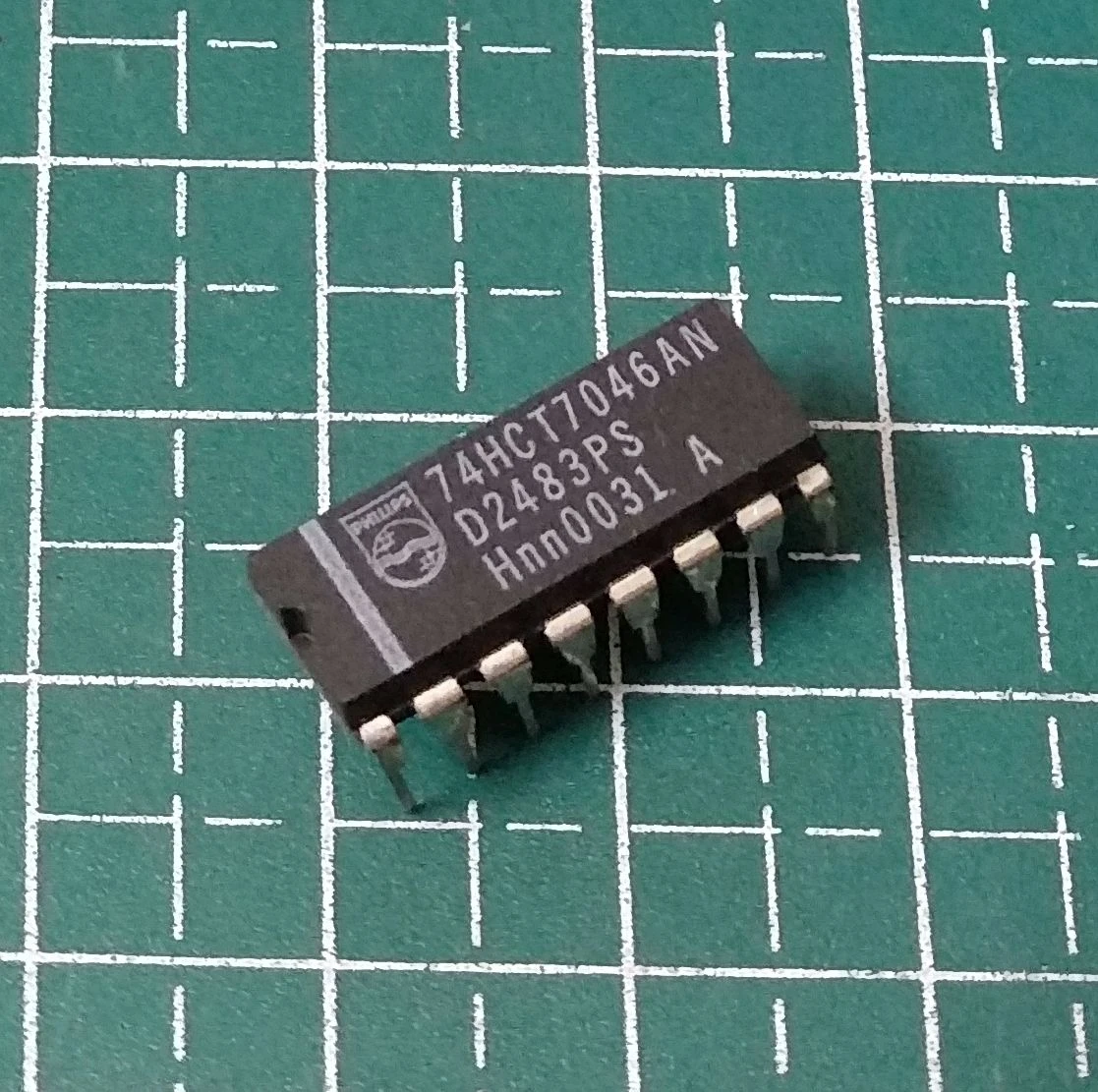

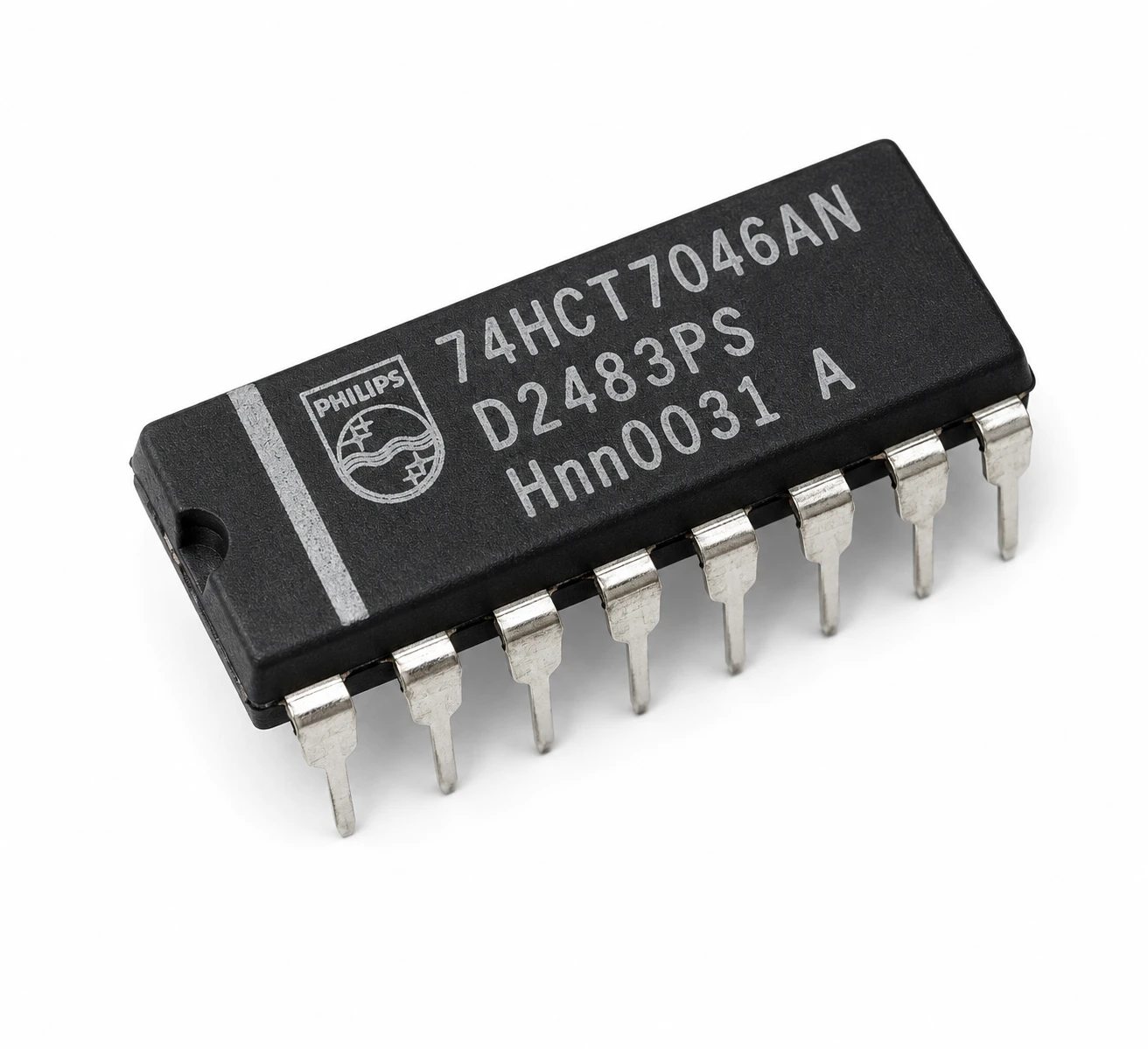

The 74HCT7046A is a Phase-Locked Loop (PLL) IC designed for frequency synthesis, clock generation, tone decoding, frequency multiplication, and synchronization applications. It combines a voltage-controlled oscillator (VCO) with phase comparators in a single integrated circuit.
Built using High-Speed CMOS HCT technology, this IC offers low power consumption with TTL-compatible inputs, making it suitable for interfacing with both CMOS and TTL logic systems.
The DIP through-hole package allows easy integration into prototyping, industrial electronics, communication systems, and embedded applications.
| Specification | Details |
|---|---|
| Model | 74HCT7046A |
| IC Type | Phase-Locked Loop (PLL) |
| Logic Family | HCT CMOS |
| Package Type | DIP |
| Mounting Type | Through Hole |
| Operating Voltage | 4.5V – 5.5V |
| Technology | High-Speed CMOS |
| Input Compatibility | TTL Compatible |
| Application | Frequency & Clock Control |
| HSN Code | 85423900 |
Product appearance, markings, and manufacturer branding may vary depending on stock availability.
