Vibration Sensor Module

In Stock

SKU: VIB_SNR_R2-D-7

Vibration Sensor Module

(0) | 0 Reviews | 2 Orders | 0 Wish Listed

₹50.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:

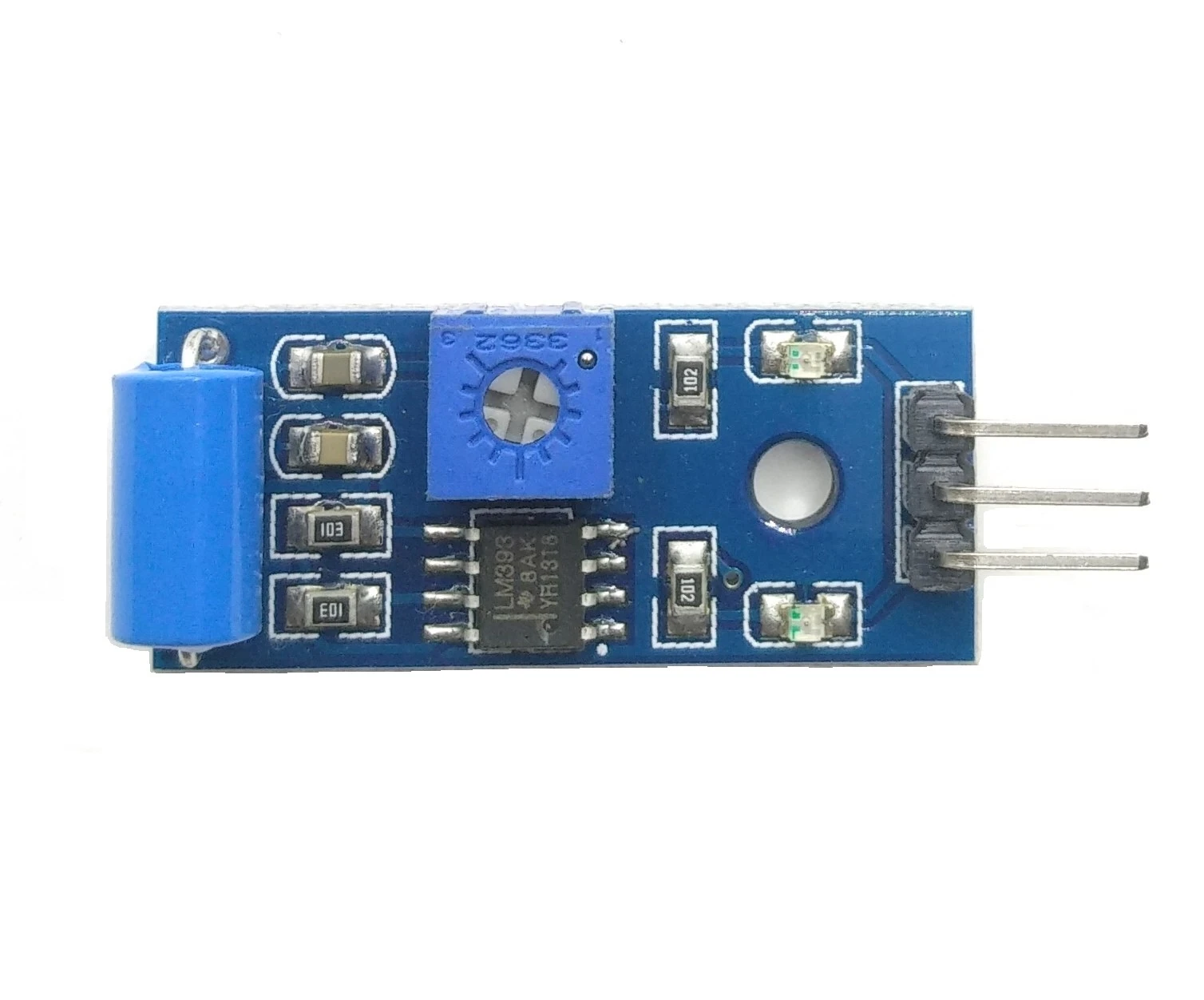

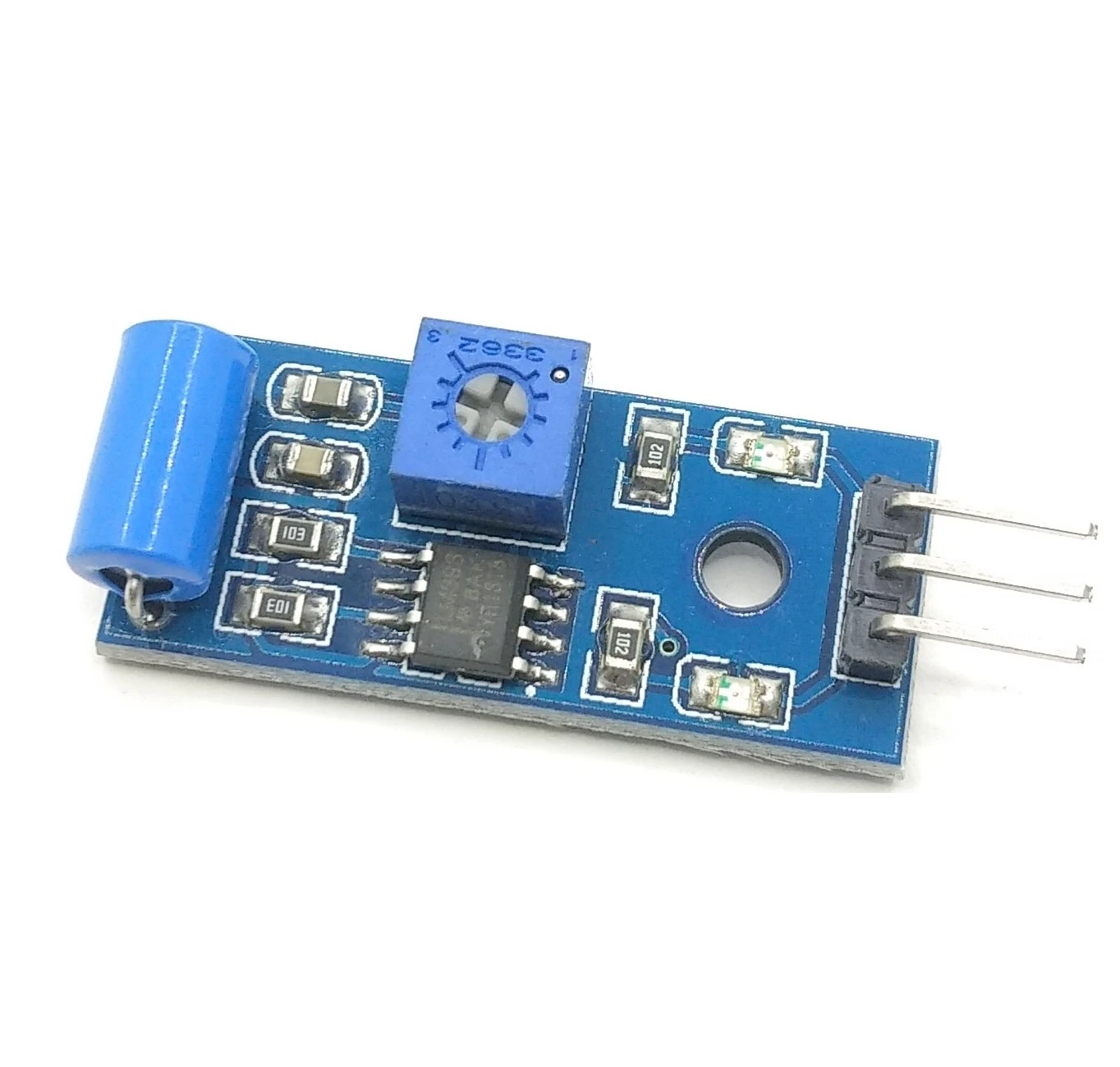

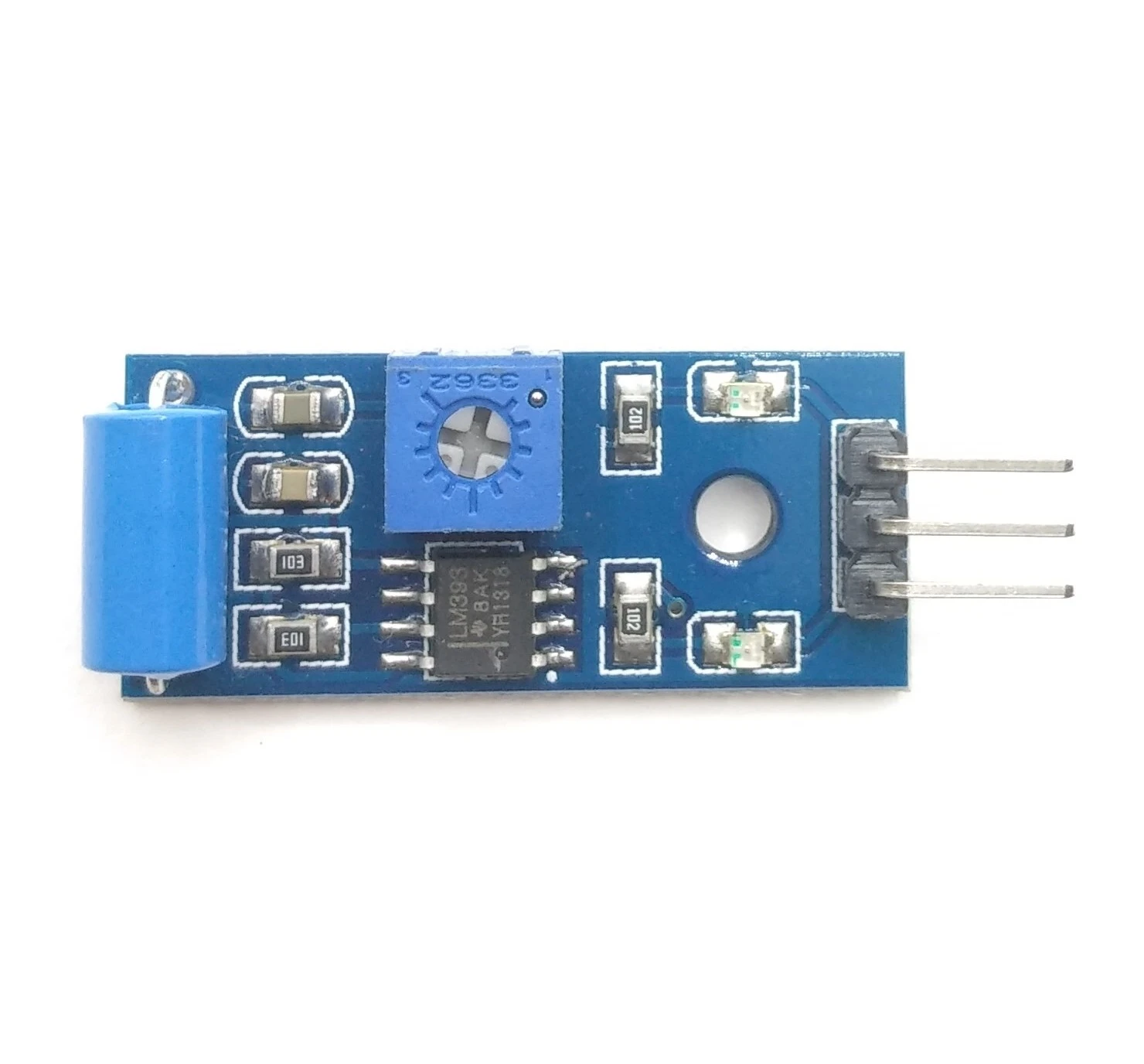

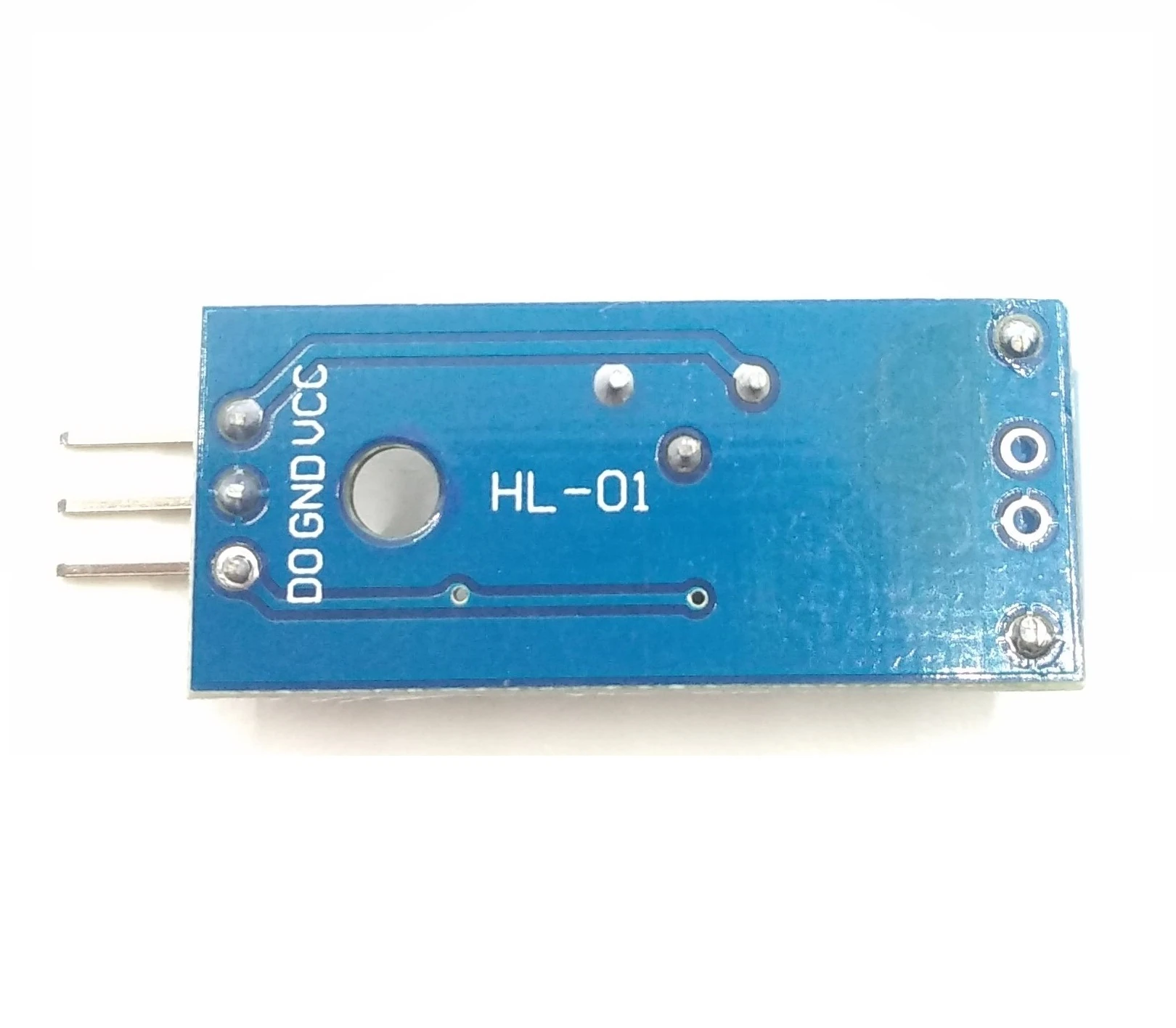

The Vibration Sensor Module is designed to detect vibrations and trigger an output signal when the threshold level of vibration is exceeded. Using the SW-420 vibration sensor and LM393 comparator, the module provides a digital output that can be directly interfaced with a microcontroller to monitor vibrations. The threshold sensitivity is adjustable via an onboard potentiometer, making it versatile for various applications, including alarm systems.

Features:

Adjustable threshold for vibration sensitivity using onboard potentiometer.
Digital switching output (0 or 1) indicating vibration detection.
Strong driving ability with an output current greater than 15mA.
Clean signal with good waveform for reliable operation.
Compact design with bolt holes for easy installation.
Low voltage operation, suitable for 3.3V to 5V systems.
Ideal for triggering alarms, motion detection, and smart vehicle applications.

Product Specifications:

Operating Voltage: 3.3V to 5V DC
Output Type: Digital switching output (0 and 1)
Comparator: LM393 for clean signal output
Output Current: >15mA
Installation: Bolt holes for secure mounting
Vibration Sensor: SW-420

Application:

Used for shock detection in alarm systems (e.g., theft alarm, earthquake alarm).
Can be integrated into smart vehicle systems, motion detection projects, and security devices.
Suitable for applications like motorcycle alarms, smart cars, and vibration-triggered events.
Ideal for integration with microcontrollers such as Arduino or Raspberry Pi for automatic responses to vibrations.

Disclaimer:
Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
