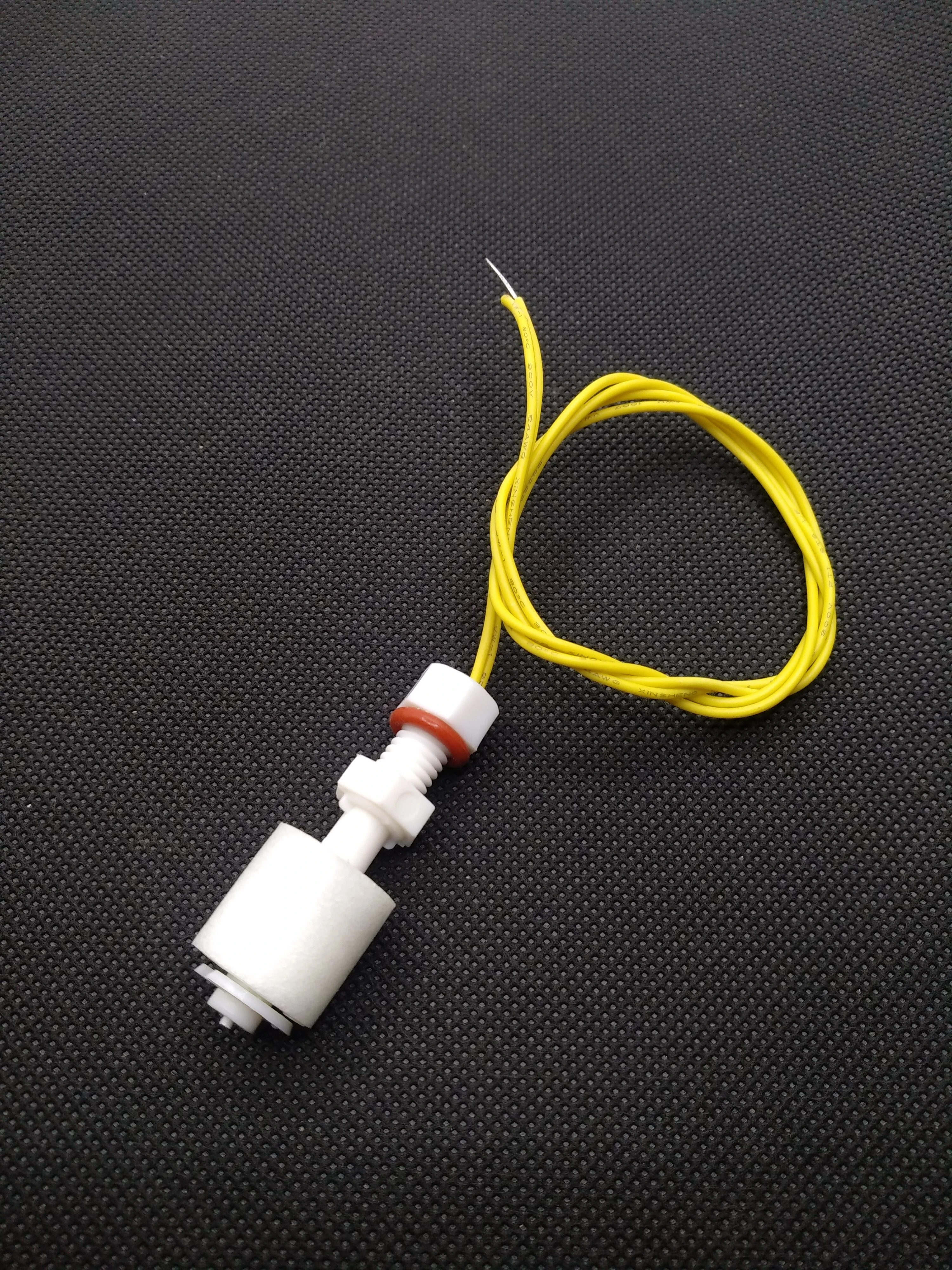

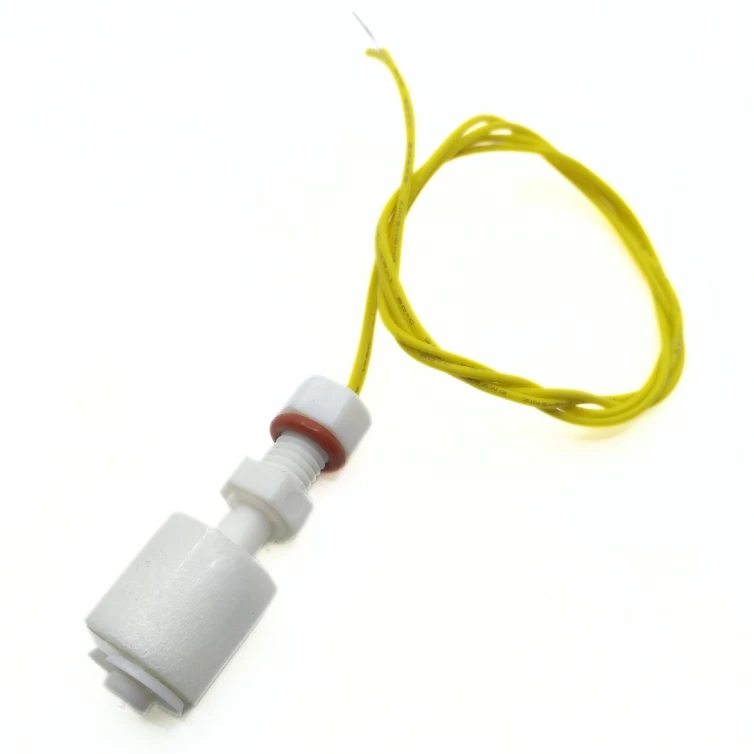

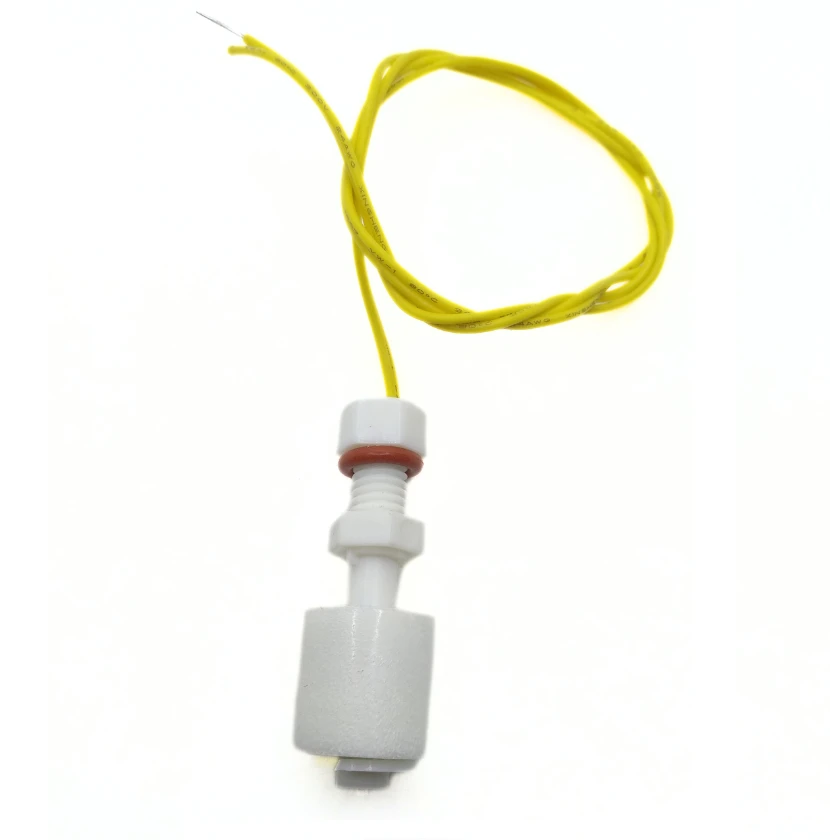

Water Level Float Switch Sensor P35 P35 Small Float Level Control Switch Plastic Float Switch is a type of level sensor, a device used to detect the level of liquid within a tank. It is a simple structure, easy to use level control device; moreover, it is neither a complicated circuit nor does it provide power. This switch has a mechanical switch than the average small sized switches. As long as the material used is in the correct shape and nature of any liquid or pressure, you can control the temperature. Applications of this Switch include shipbuilding industry, generating equipment, petrochemical and food industry, water treatment equipment, dyeing, and finishing industry, and hydraulic machinery. Specifications: Max. Contact Rating: 10 W Max. Switching Voltage: 220 V Max. Switching Current: 0.5 A Max. Breakdown Voltage: 220 VDC Max. Carry Current: 1 A Max. Contact Resistance: 100 mΩ Temperature Rating(˚C): -10 ~ 60 Float Ball Material: P.P. Float Body Material: P.P. Length of Body (mm): 46 Outer diameter (mm): 17.5 Cable Length (cm): 35 Weight (gm) : 8
Water Level Detection: Designed for detecting water levels in tanks, reservoirs, or other containers with precision.
Float level switch is a kind of liquid level control device with simple structure,convenient to use.
Thread Dia(Approx): M8 mm ; Float Ball Size(Approx): 18 x 18mm/0.7" x 0.7" (L*D) ; Total Length : 46mm / 1.81" ; Cable Length: 36cm/14.2"
The switch has the advantages of high sensitivity and durability. PP material is environmentally friendly and has excellent acid and alkali resistance.
Versatile Application: Suitable for a wide range of applications including industrial, agricultural, and home automation projects.
