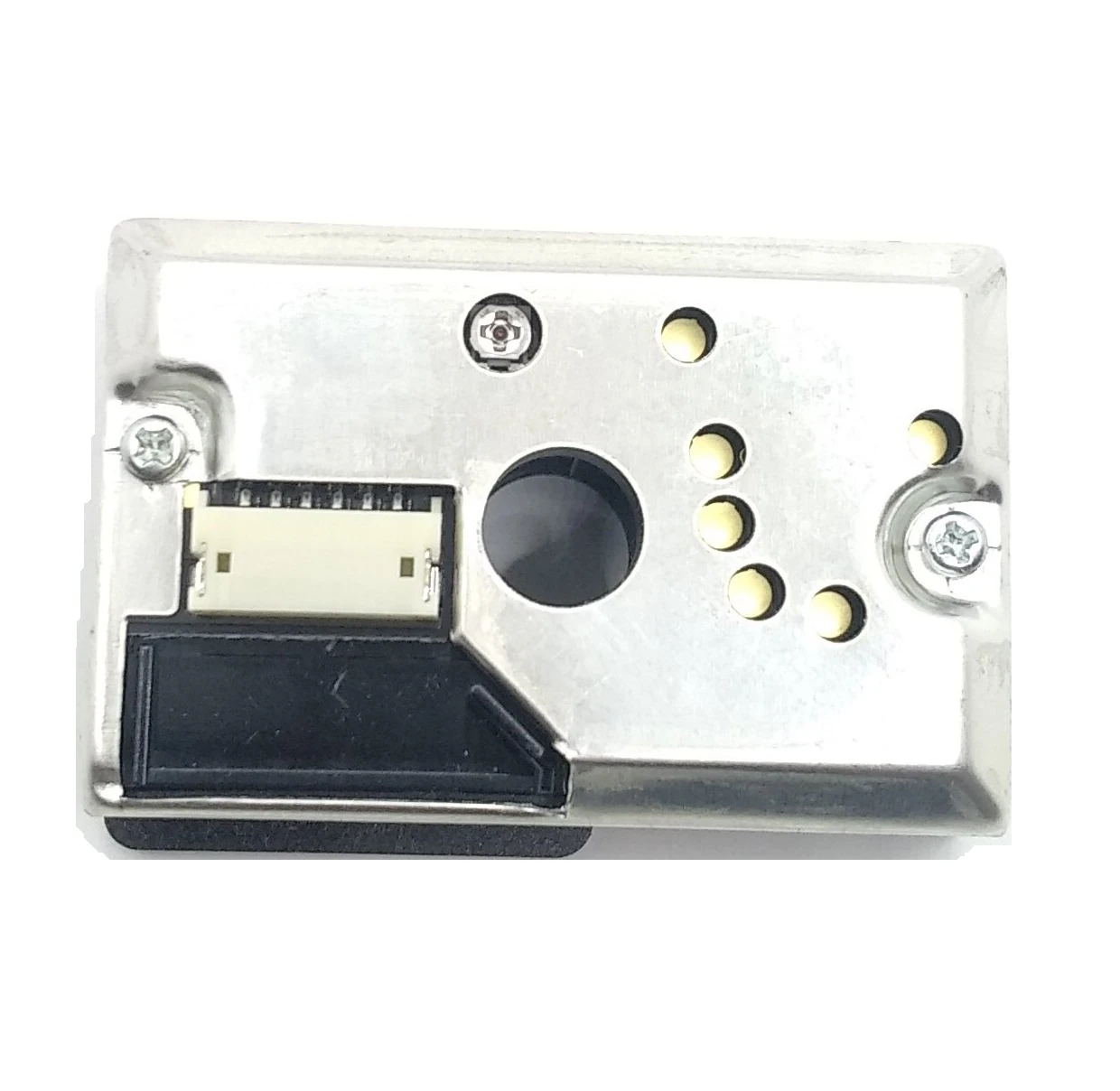

The GP2Y1010AU0F Optical Dust Sensor Kit is a compact and effective solution for detecting dust particles in the air. Utilizing photometry to detect reflected light from dust, it is particularly sensitive to fine particles like cigarette smoke. This sensor can distinguish smoke from other forms of dust based on the pulse pattern of the output voltage. Ideal for air quality monitoring and air purification systems, this sensor offers precise detection for fine particulate matter.

Features

Detects dust particles as small as 0.8 microns
Effective for detecting smoke, house dust, and fine particulate matter
Operates within a temperature range of -10°C to +65°C
Low power consumption, with a maximum current of 20mA
Output voltage pulse pattern to distinguish between different types of particles
Sensitivity range of 0.5V / (0.1mg/m³)
Simple integration for air quality monitoring systems

Product Specifications

Power Supply: DC5 ± 2V
Operating Temperature: -10°C to +65°C
Maximum Current Consumption: 20mA
Particle Detection Size: 0.8 microns
Sensitivity Range: 0.5V / (0.1mg/m³)
Detection Method: Photometry of one pulse of reflected light
Applications: Air purifiers, air quality monitors, industrial and environmental monitoring

Applications

Air quality monitoring in homes and offices
Integration in air purifier systems
Environmental monitoring and studies
Industrial applications for dust detection and filtration systems

Disclaimer:
Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
