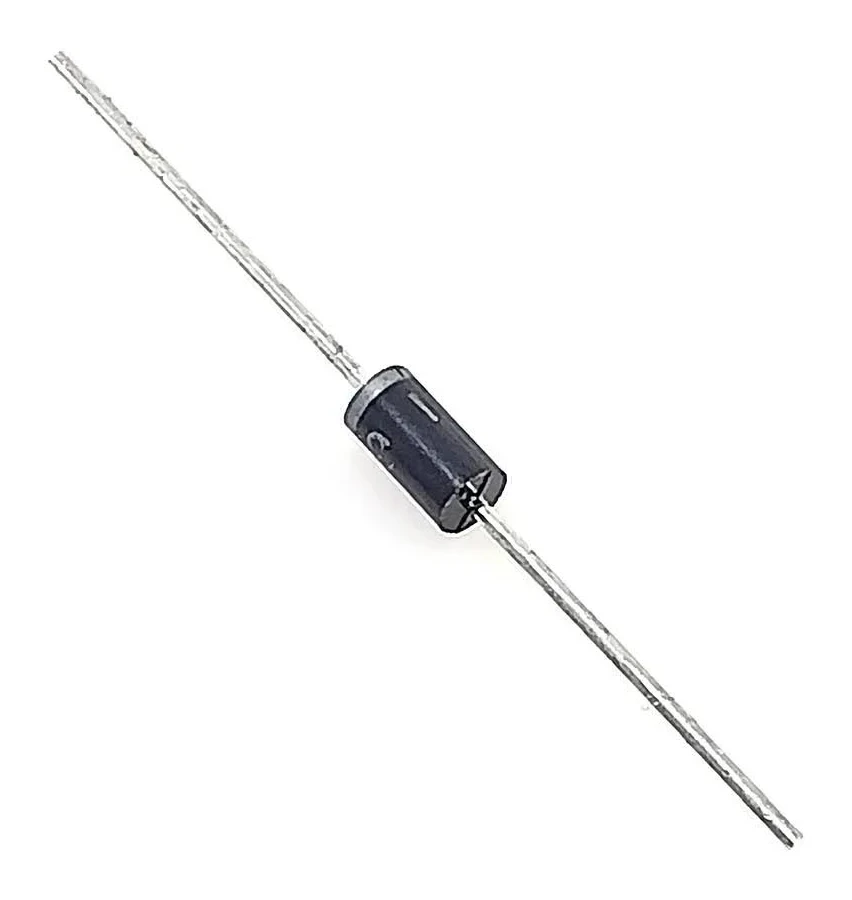

UF4007

In Stock

SKU: R2-A-1-13

UF4007

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹2.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:
The UF4007 is an ultra-fast recovery rectifier diode designed for high-speed switching applications. It is similar to the 1N4007 in voltage and current ratings but features a much faster recovery time, making it suitable for switching power supplies and high-frequency circuits.

Specifications:

Type: Ultra-Fast Rectifier Diode
Maximum Repetitive Reverse Voltage: 1000V
Forward Current: 1A (continuous)
Peak Surge Current: ~30A
Forward Voltage Drop: ~0.7V – 1.7V
Reverse Recovery Time: ~50ns – 75ns
Package: DO-41 (axial)

Features:

Ultra-fast switching speed
High voltage handling capability (1000V)
Suitable for high-frequency applications
Low reverse recovery loss
Reliable and durable

Applications:

Switching power supplies (SMPS)
Inverters and converters
Freewheeling / flyback diode
High-frequency rectification
Motor drive circuits

Polarity Identification:

Cathode → Marked with a band
Anode → Opposite side

Important Note:

Preferred over 1N4007 for high-frequency circuits
Ensure proper current and voltage ratings
Use heat management in high load conditions

Package Includes:

1 × UF4007 Diode

Disclaimer:
No warranty. No guarantee. No return. No replacement.
