IN5819

In Stock

SKU: R2-A-1-10

IN5819

(0) | 0 Reviews | 1 Orders | 0 Wish Listed

₹3.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:

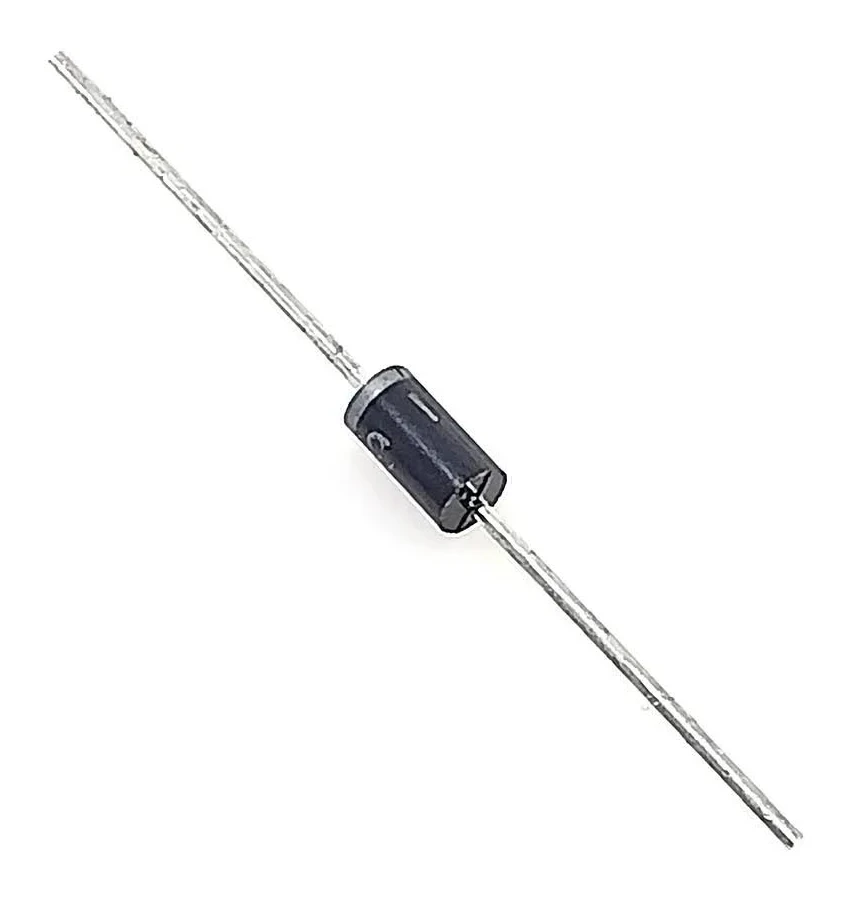

The 1N5819 is a Schottky barrier rectifier diode designed for low-voltage, high-efficiency applications. It features a low forward voltage drop and fast switching capability, making it ideal for power supply circuits, DC-DC converters, and reverse polarity protection.

Specifications:

Type: Schottky Diode
Forward Current: 1A
Reverse Voltage: 40V
Forward Voltage Drop: ~0.45V
Package: DO-41 (axial)
Mounting: Through-hole
Reverse Leakage Current: Low
Operating Temperature: up to 150°C
The 1N5819 provides efficient rectification with reduced power loss, suitable for compact and energy-efficient circuits

Features:

Low forward voltage drop
Fast switching speed
High efficiency
Low power loss
Reliable performance

Applications:

DC-DC converters
Power supply rectification
Battery-powered circuits
Solar applications
Reverse polarity protection

Polarity Identification:

Cathode → Marked with a band
Anode → Opposite side

Important Note:

Not suitable for high-voltage applications
Higher leakage current compared to standard diodes
Ensure proper current and thermal limits

Package Includes:

1 × 1N5819 Schottky Diode

Disclaimer:
No warranty. No guarantee. No return. No replacement.
