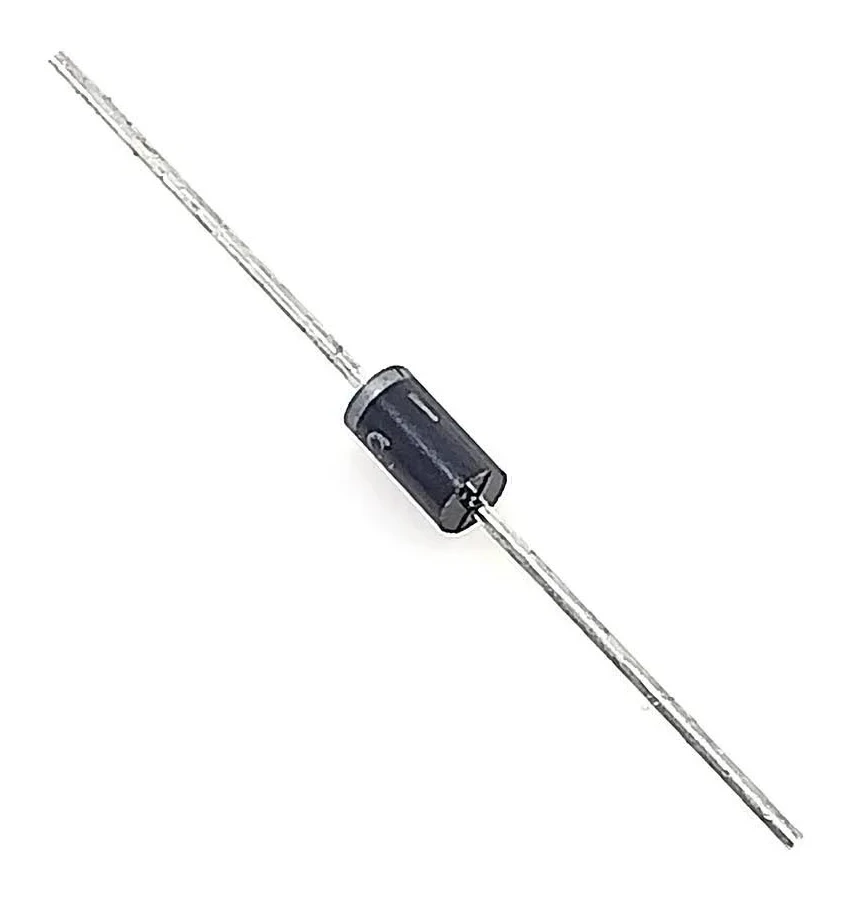

FR306

In Stock

SKU: R2-A-1-11

FR306

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹5.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:
The FR306 is a fast recovery rectifier diode designed for high-speed switching applications. It offers quicker recovery time compared to standard rectifier diodes, making it suitable for SMPS, inverters, and high-frequency circuits.

Specifications:

Type: Fast Recovery Diode
Forward Current: 3A
Reverse Voltage: 600V
Forward Voltage Drop: ~1.3V
Recovery Time: ~150ns
Package: DO-201AD (axial)
Mounting: Through-hole
Reverse Leakage Current: Low
Operating Temperature: up to 150°C
The FR306 provides efficient high-speed rectification, suitable for switching power applications

Features:

Fast recovery time
High voltage capability
Handles higher current (3A)
Reliable and durable
Better performance than standard rectifiers in high-frequency circuits

Applications:

SMPS (Switch Mode Power Supply)
Inverter circuits
Freewheeling diode applications
High-frequency rectification
Motor drive circuits

Polarity Identification:

Cathode → Marked with a band
Anode → Opposite side

Important Note:

Not as fast as ultra-fast diodes (UF series)
Ensure proper heat dissipation at high current
Use appropriate snubber circuits if required

Package Includes:

1 × FR306 Fast Recovery Diode

Disclaimer:
No warranty. No guarantee. No return. No replacement.
