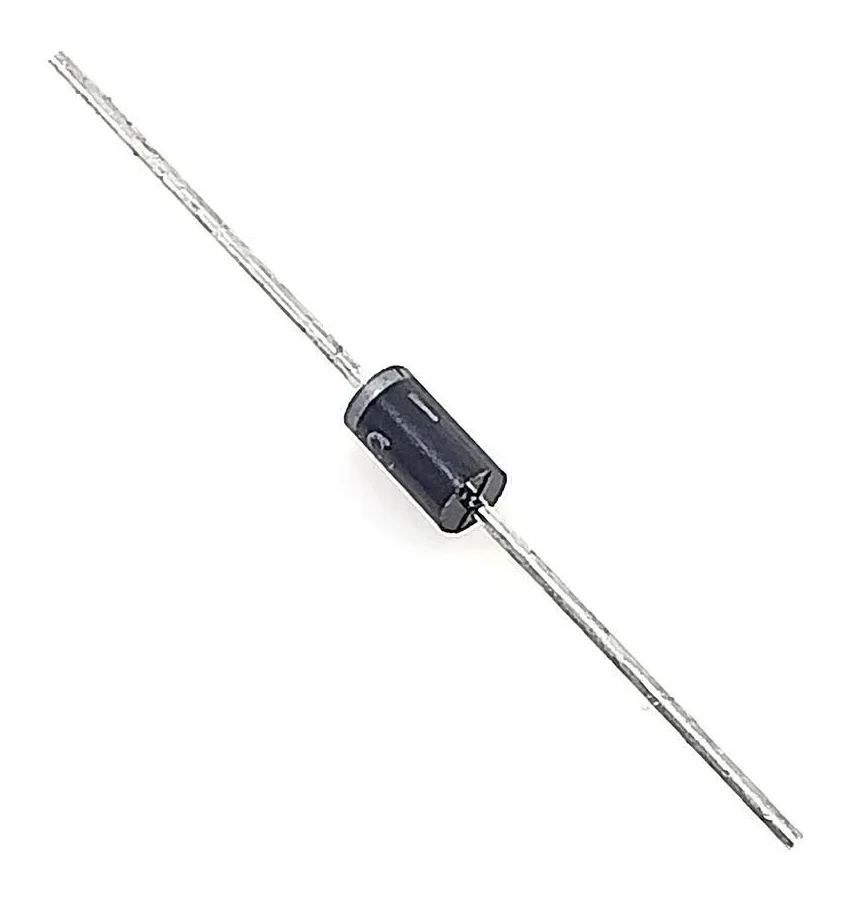

IN4004

In Stock

SKU: R2-A-1-6

IN4004

(0) | 0 Reviews | 2 Orders | 0 Wish Listed

₹1.50 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:
The 1N4004 is a general-purpose rectifier diode used for converting AC to DC and for protection in power circuits. It is part of the widely used 1N400x series, offering moderate voltage handling and reliable performance in low to medium power applications.

Specifications:

Type: Rectifier Diode
Maximum Repetitive Reverse Voltage: 400V
Forward Current: 1A (continuous)
Peak Surge Current: ~30A
Forward Voltage Drop: ~0.7V – 1.1V
Package: DO-41 (axial)

Features:

Suitable for general rectification
Moderate voltage rating (400V)
Reliable and robust design
Low cost and widely available
Easy through-hole mounting

Applications:

AC to DC rectification
Power supply circuits
Reverse polarity protection
Flyback diode for relays and inductive loads
Battery charging circuits

Polarity Identification:

Cathode → Marked with a band
Anode → Opposite side

Important Note:

Not suitable for high-frequency switching (use fast diodes like 1N4148 or UF4007)
Ensure voltage rating is sufficient for your circuit
Use higher-rated diode (e.g., 1N4007) if voltage margin is needed

Package Includes:

1 × 1N4004 Diode
