Description:

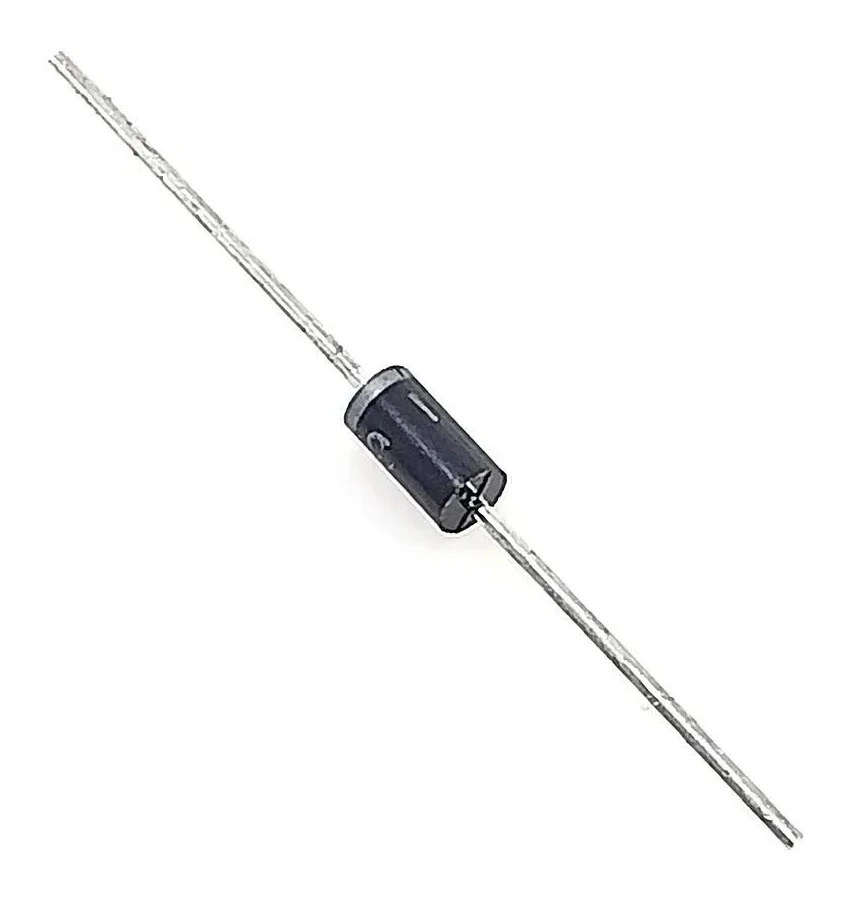

The 1N5337 is a high-power Zener diode from the 1N53xx series, used for voltage regulation and protection. It maintains a stable voltage (4.7V) across loads, making it ideal for power supplies and voltage clamping applications.

Specifications:

Type: Zener Diode
Zener Voltage: 4.7V
Power Dissipation: 5W
Tolerance: ±5%
Package: T-18 / DO-15 (axial)
Mounting: Through-hole
Maximum Impedance: ~2Ω
Reverse Leakage Current: ~5µA
Operating Temperature: up to 150–200°C

The 1N5337 typically provides 4.7V regulation with 5W power handling, suitable for robust voltage control and protection circuits

Features:

High power dissipation (5W)
Stable voltage regulation
Low dynamic impedance
Rugged and reliable design
Suitable for industrial and power applications

Applications:

Voltage regulation circuits
Power supply stabilization
Overvoltage protection
Clipping and clamping circuits
Reference voltage generation

Polarity Identification:

Cathode → Marked with a band
Anode → Opposite side

Important Note:

Requires a series resistor for current limiting
Ensure proper heat dissipation for high power use
Not a rectifier diode—used specifically for regulation

Package Includes:

1 × 1N5337 Zener Diode

Disclaimer:
No warranty. No guarantee. No return. No replacement.
