TTP223 1 Channel Capacitive Touch Sensor Module

In Stock

SKU: TCH_SNR_R2-B-4-1

TTP223 1 Channel Capacitive Touch Sensor Module

(0) | 0 Reviews | 4 Orders | 0 Wish Listed

₹18.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:

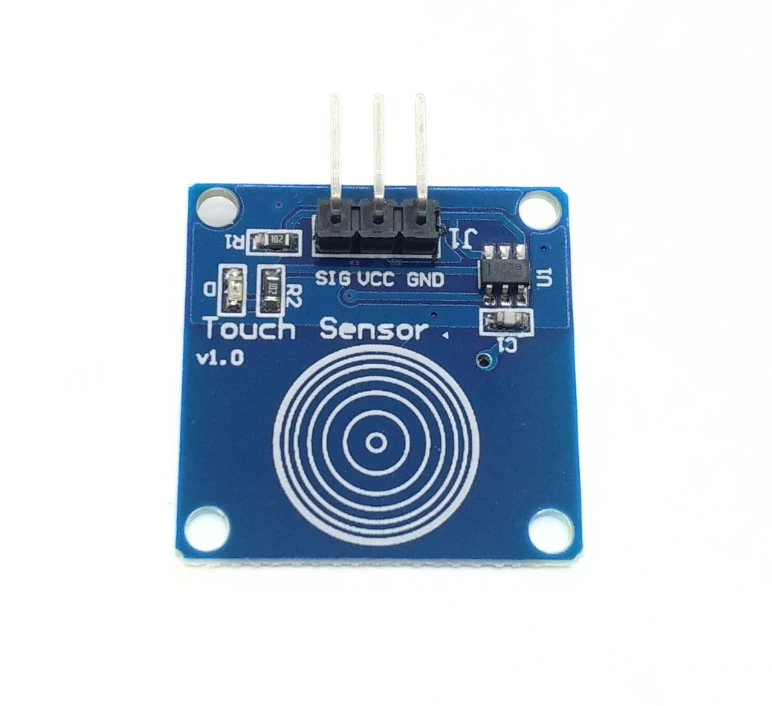

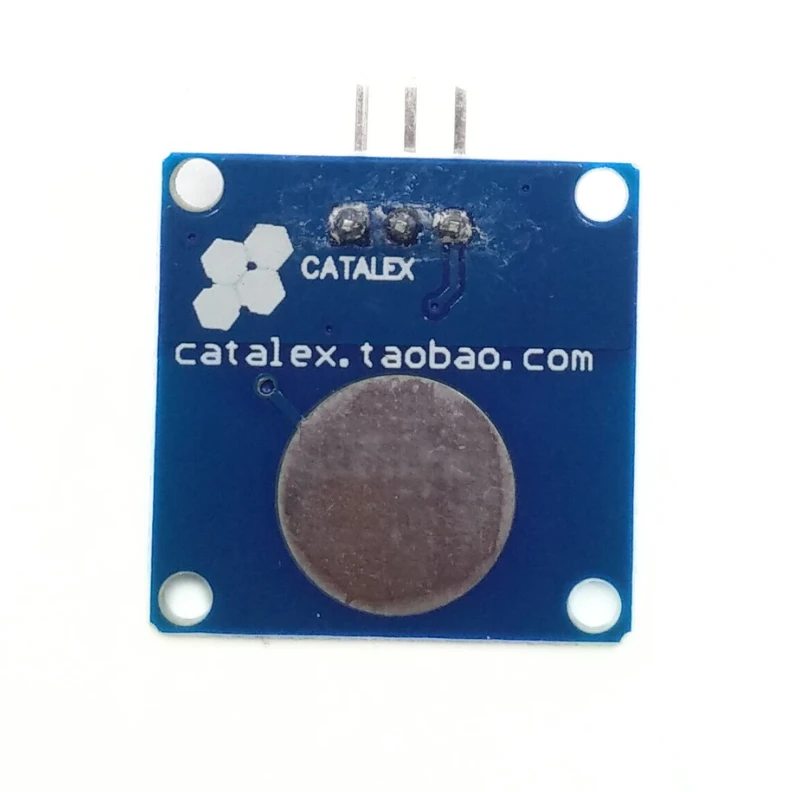

The 1 Channel Capacitive Touch Sensor Module is a low-power, compact touch-sensitive switch designed to replace traditional mechanical buttons. With a touch area resembling a fingerprint icon, this module offers a reliable and quick response time, with an easy-to-install design featuring four M2 screws for mounting. It operates at a wide voltage range of 2V to 5.5V, making it suitable for various applications, from simple control interfaces to more complex projects.

Features:

Operating Voltage: 2V to 5.5V DC
Low Power Consumption: Ideal for battery-powered applications
Compact Size: 24 x 24 x 7.2 mm for easy integration
Response Time: 60 ms (touch mode) and 220 ms (low power mode)
Three-pin Control Interface: GND, VCC, and SIG for easy integration with microcontrollers
Positioning Holes: Four M2 screw holes for secure installation
Power Indicator: Green LED to indicate when power is on

Product Specifications:

Operating Voltage: 2V to 5.5V DC
Output: Digital signal (0V - 3V, high/low)
Output Pin Sink Current: 8 mA (@ VCC = 3V, VOL = 0.6V)
Output Pin Pull-up Current: 4 mA (@ VCC = 3V, VOH = 2.4V)
Response Time: 60 ms (touch mode), 220 ms (low power mode)
Dimensions: 24 x 24 x 7.2 mm
Positioning Holes: 4 M2 screws (diameter: 2.2 mm)

Application:

Ideal for replacing mechanical push buttons
Used in control interfaces and interactive projects
Suitable for Arduino and other microcontroller-based systems

Disclaimer:
Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
