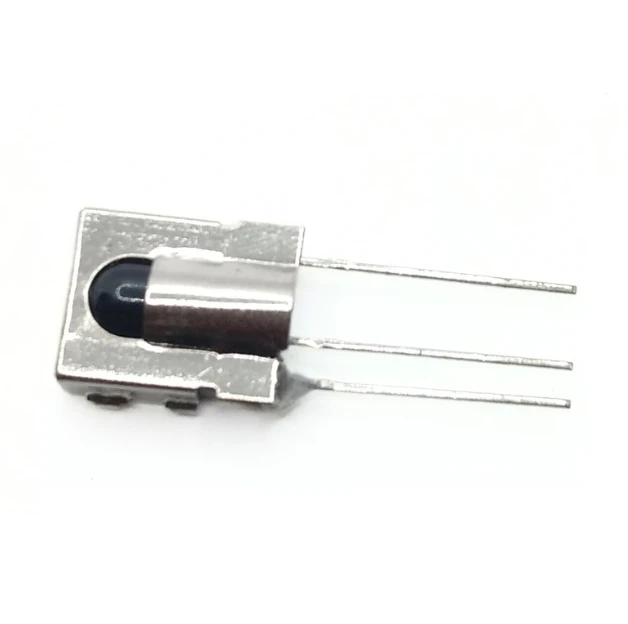

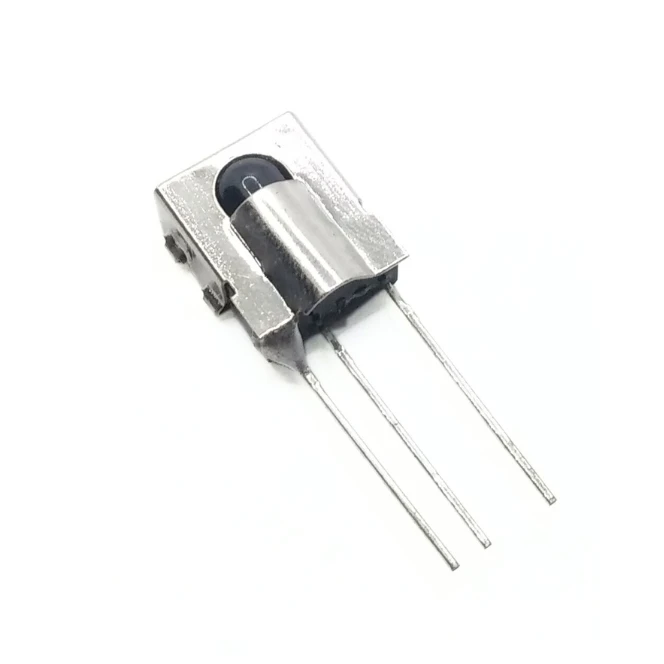

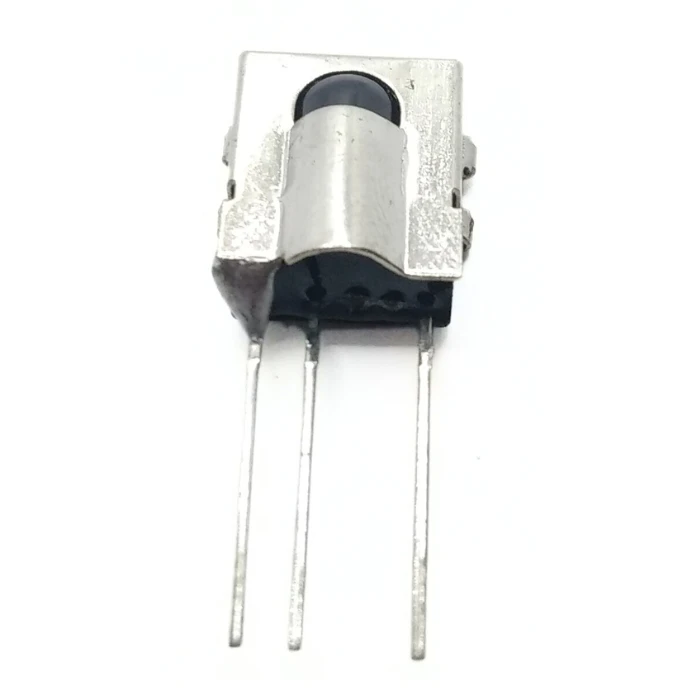

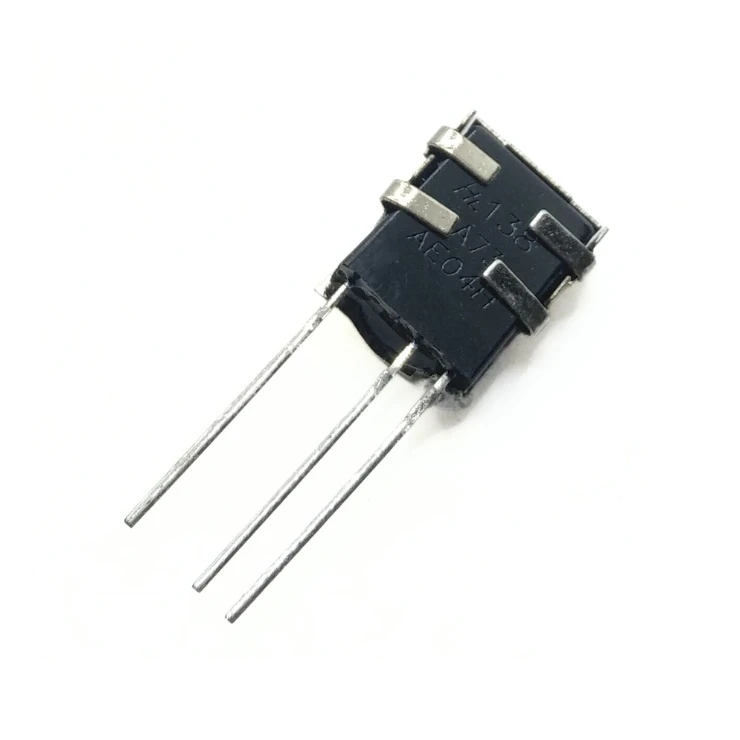

The TSOP1738 is a compact, highly sensitive IR receiver designed for remote control systems and proximity detection applications. It integrates a PIN diode and preamplifier into a single package, filtering infrared signals for enhanced accuracy and noise immunity.
Operates at 38kHz IR frequency
Built-in photo detector and pre-amplifier
TTL and CMOS compatible output (active low)
High immunity to ambient light and electrical field interference
Low power consumption (0.4 to 1.0 mA)
Compact 3-pin male interface for easy connectivity
Supply Voltage: 5V DC
Current Consumption: 0.4 to 1.0 mA
Minimum Irradiation (Ee): 0.35 mW/m² (typical)
Angle of Detection: 90°
Dimensions: 12.5 mm × 10 mm × 5.8 mm (thickness)
Operating Temperature Range: -25°C to +85°C
Output: Active Low Digital Signal
Operating Frequency: 38kHz
Package: Epoxy-encapsulated with IR filter
Infrared remote control systems
Proximity and object detection in robotics
DIY automation and wireless communication projects
Security systems and smart home electronics
Educational kits and technical R&D modules
Disclaimer:
Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
