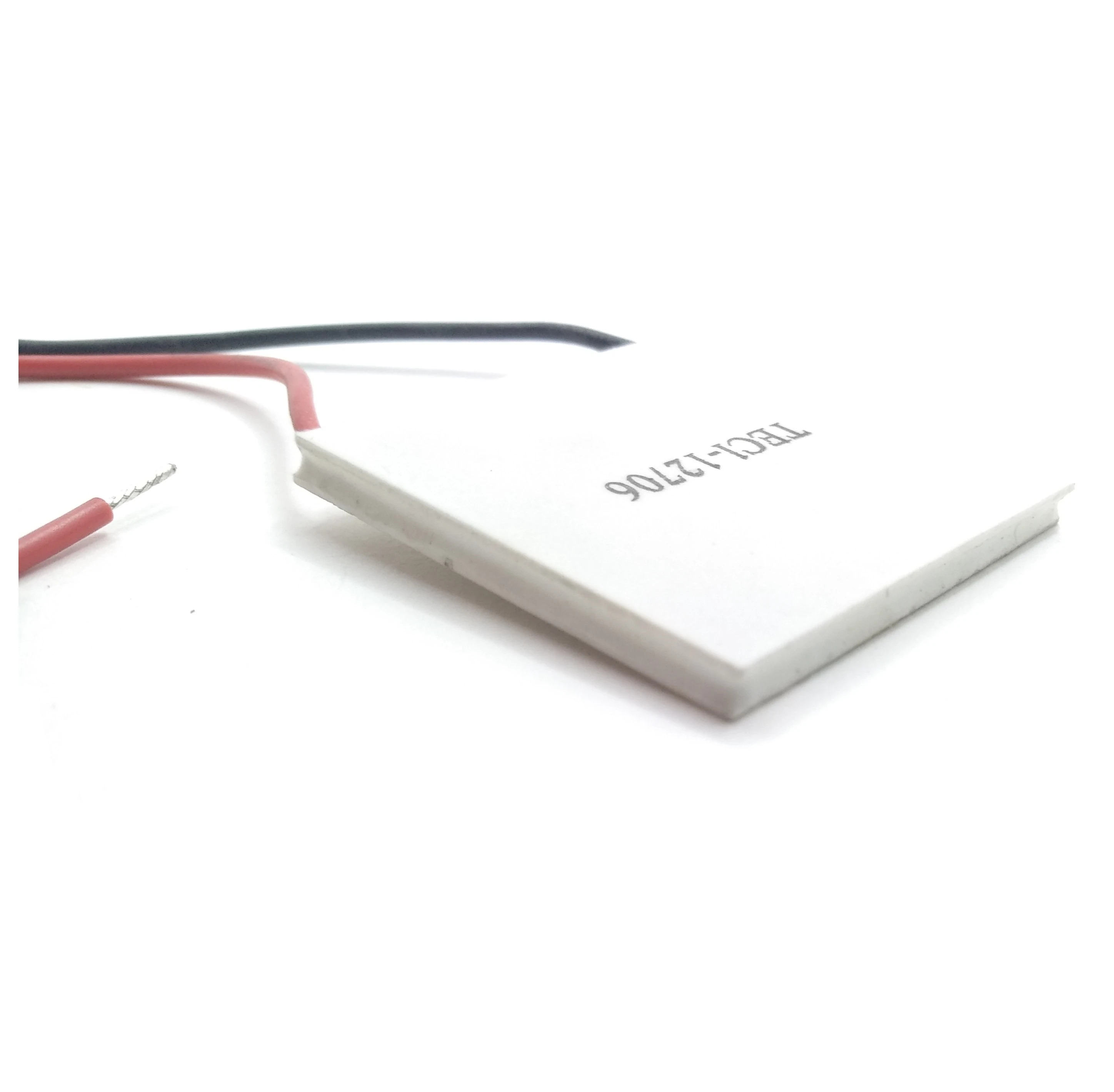

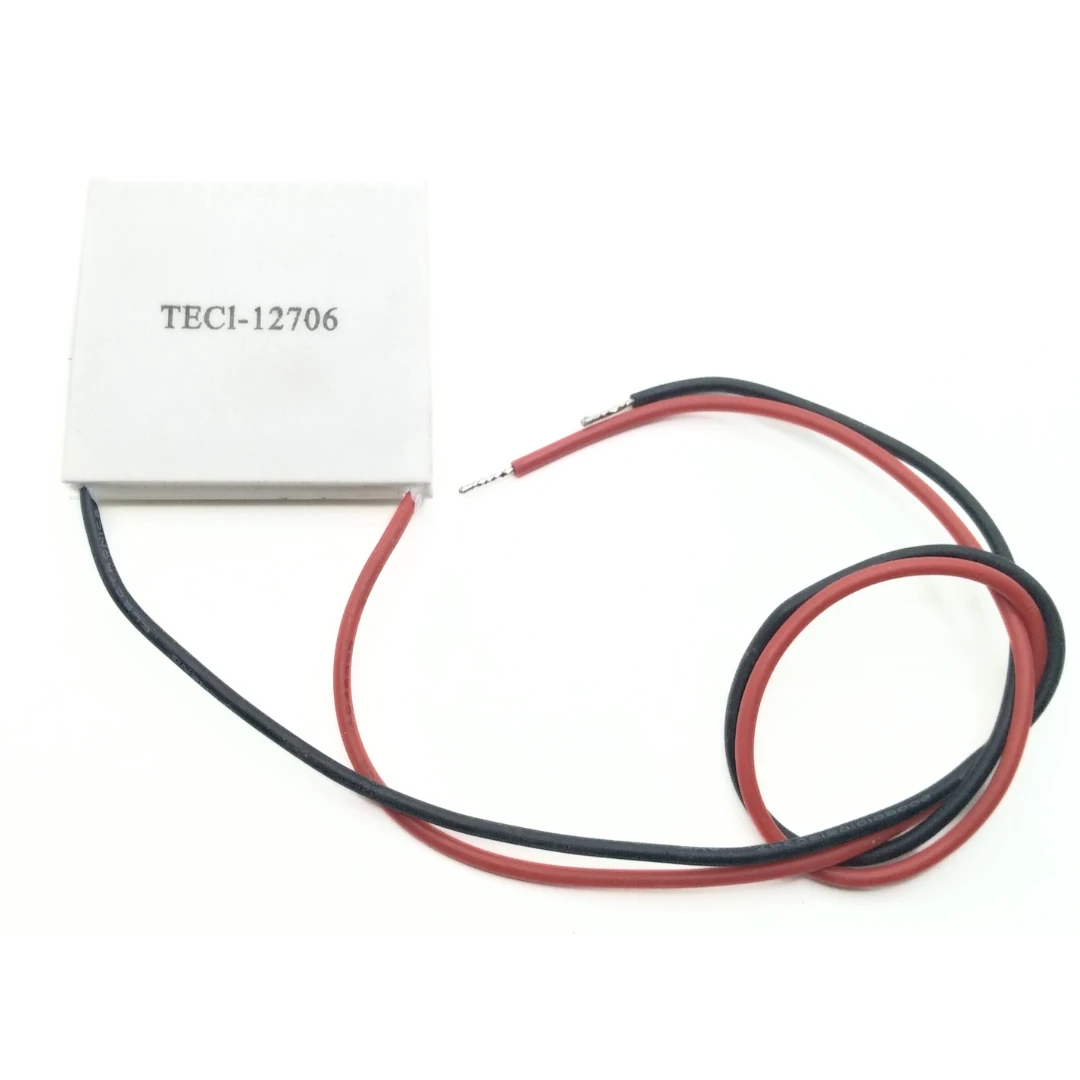

TEC1-12706 Thermoelectric Peltier Sensor Module

In Stock

SKU: PELT_SNR_R2-C-15

TEC1-12706 Thermoelectric Peltier Sensor Module

(0) | 0 Reviews | 2 Orders | 0 Wish Listed

₹132.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

The Thermoelectric Peltier Sensor Module (TEC1-12706) is a compact device that creates a temperature difference between its two surfaces when powered by a DC supply. One side becomes hot while the other gets cold, making it ideal for both cooling and heating applications. This solid-state device also functions as a temperature sensor in certain use-cases and can generate electricity if exposed to a temperature gradient.

Features:

Creates a cold and hot side when powered, using the Peltier effect
Can be used to cool or heat objects, depending on orientation
Generates electricity if exposed to external temperature differences
Contains 127 semiconductor junctions for efficient heat transfer
Compact, lightweight, and easy to integrate into systems
Ideal for educational use in thermodynamics and heat transfer studies

Product Specification:

Model: TEC1-12706
Operating Voltage: 12V DC
Maximum Voltage (Umax): 15.4V
Maximum Current (Imax): 6A
Maximum Power: 92W
Temperature Differential: Up to 90°C (can reach up to 138°C max)
Internal Resistance: 1.98 Ohm ±10%
Module Dimensions: 40mm x 40mm
Power Cord Length: 200mm

Application:

CPU cooling
Portable mini-fridges
CCD camera cooling
Medical diagnostic devices
Lab experiments and academic projects
DIY temperature regulation projects

Disclaimer:
Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
