TEC1-12715 Peltier Module

In Stock

SKU: R2-E-2

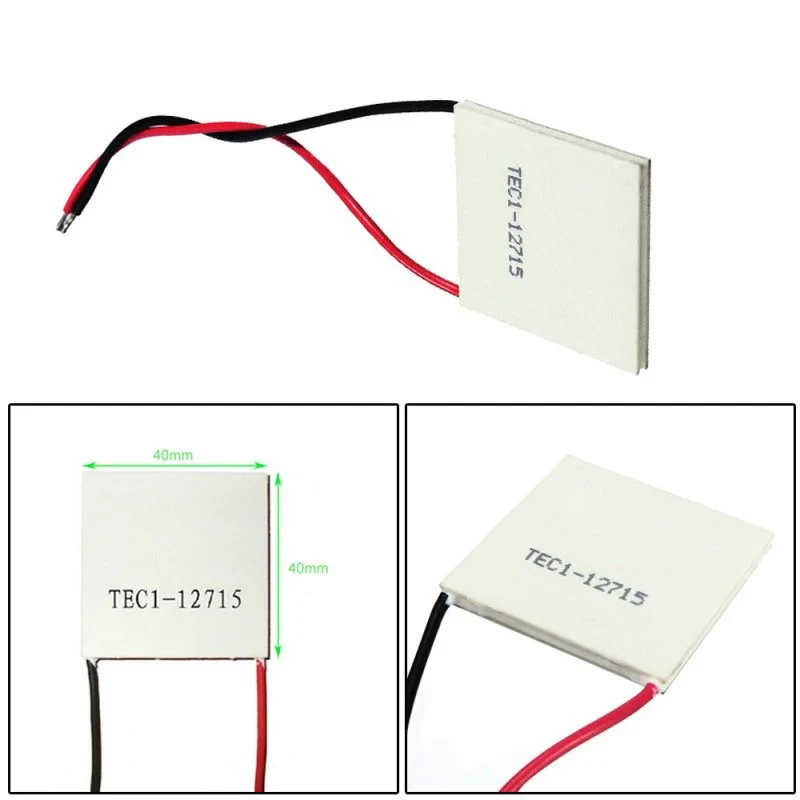

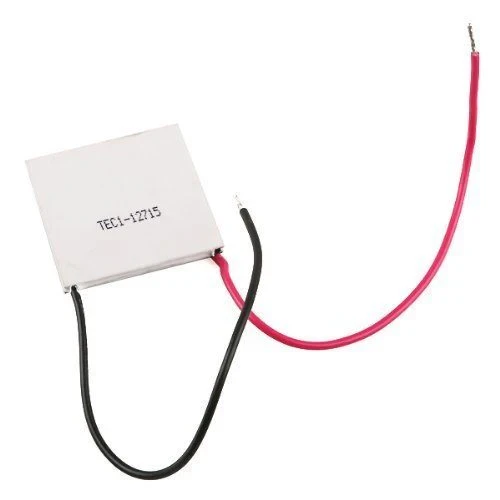

TEC1-12715 Peltier Module

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹282.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:

The TEC1-12715 Peltier Module is a compact thermoelectric cooler designed to create a temperature difference on each side using the Peltier effect.
Perfect for cooling or heating applications, this 40x40mm module includes 127 semiconductor couples and requires proper heat dissipation for effective operation.

Features:

Compact and powerful 40x40mm module.
Generates a cold and hot side by applying DC voltage.
Easy polarity reversal to switch between heating and cooling.
Solid-state design: vibration-free, noise-free, reliable operation.
High-quality, long-life cooling cells.
Requires heat sink for optimal performance.
Simple installation and use.

Product Specifications:

Model: TEC1-12715
Module Size: 40mm x 40mm
Max Current (Imax): 15A
Max Voltage (Vmax): 15.4V
Rated Voltage: 12V
Max Temperature Difference (ΔTmax): Up to 67°C
Power Rating: 136.8W
Couples: 127
Life Expectancy: ~200,000 hours
Failure Rate: 0.2% based on long-time testing
Requirement: Always use with a heatsink when powered.

Applications:

CPU cooling and overclocking projects.
Portable mini-refrigerators.
CCD camera cooling systems.
Medical instrument temperature control.
DIY cooling or heating electronic projects.
Energy harvesting projects based on temperature differentials.

Disclaimer:

Product details, specifications, and colors may change from time to time without prior notice depending on updates or improvements.
Important: Always mount a proper heatsink on the hot side before powering on the module. Operating without a heatsink can permanently damage the Peltier module.
