Soil Moisture Sensor Module

In Stock

SKU: SL_SNR_R2-C-13

Soil Moisture Sensor Module

(0) | 0 Reviews | 28 Orders | 0 Wish Listed

₹44.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:

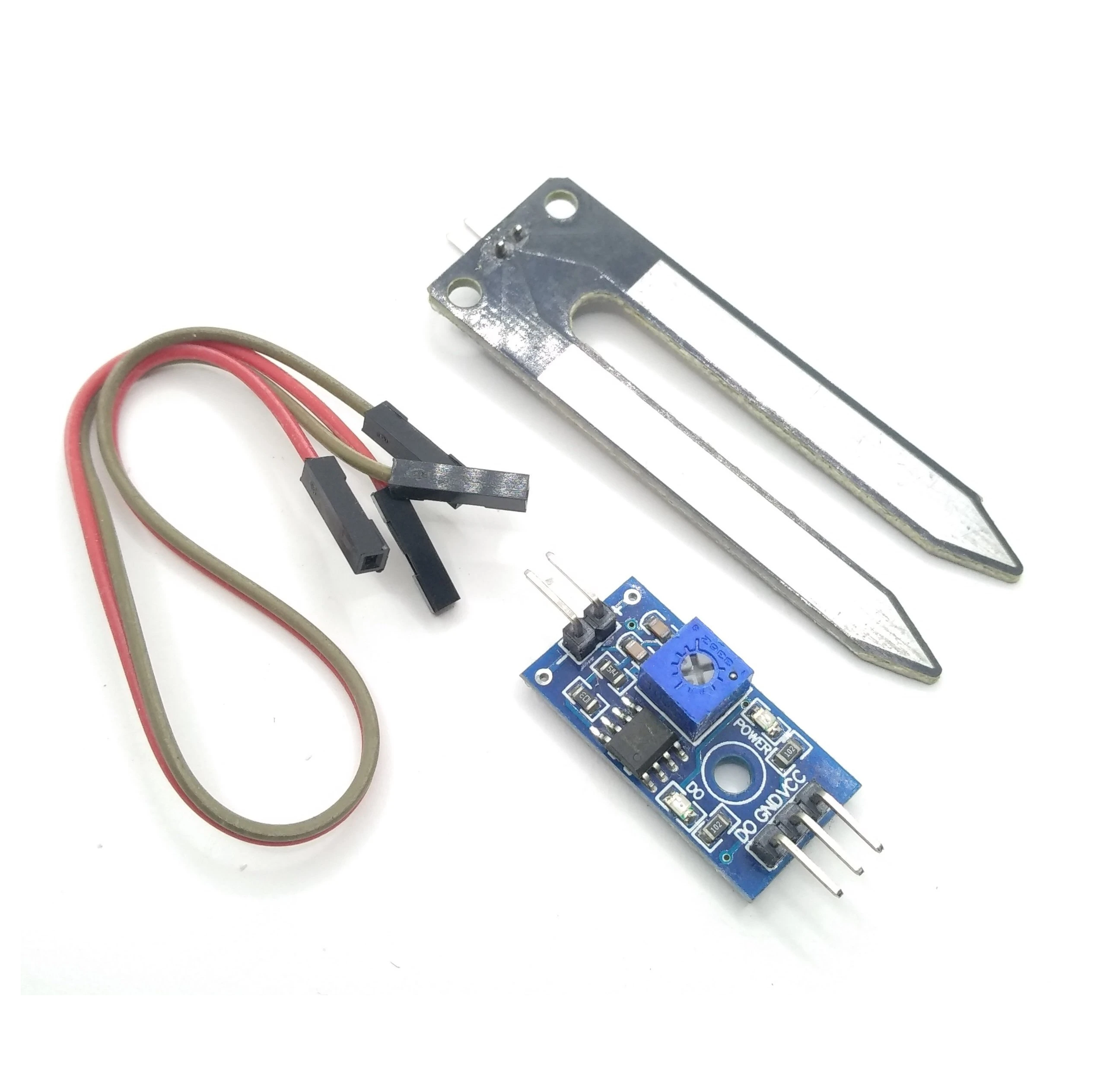

This soil moisture sensor module is used to detect the moisture content of the soil. It measures the volumetric water content and provides the moisture level as output. The module features both digital and analog outputs, with an adjustable potentiometer to set the threshold level.

Features:

Digital and analog outputs for versatile applications
Potentiometer to adjust threshold levels
Easy to interface with microcontrollers like Arduino
Measures soil moisture levels accurately

Product Specifications:

Operating Voltage: 3.3V to 5V DC
Operating Current: 15mA
Digital Output: 0V to 5V, adjustable trigger level
Analog Output: 0V to 5V, based on moisture level
Pin connections:
- VCC: Connect to 3.3V-5V
- GND: Connect to GND
- DO: Digital output interface (0 and 1)

Application:

Used in soil moisture detection for agricultural applications
Can be connected to microcontrollers like Arduino for automated irrigation systems
Ideal for creating smart gardening solutions

Disclaimer:
Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
