Magnetic Reed Switch Sensor Module

Out of Stock

SKU: RD_STH_SNR_R2-B-12

Magnetic Reed Switch Sensor Module

(0) | 0 Reviews | 2 Orders | 0 Wish Listed

₹36.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Out of stock

Overview
Reviews

Description:

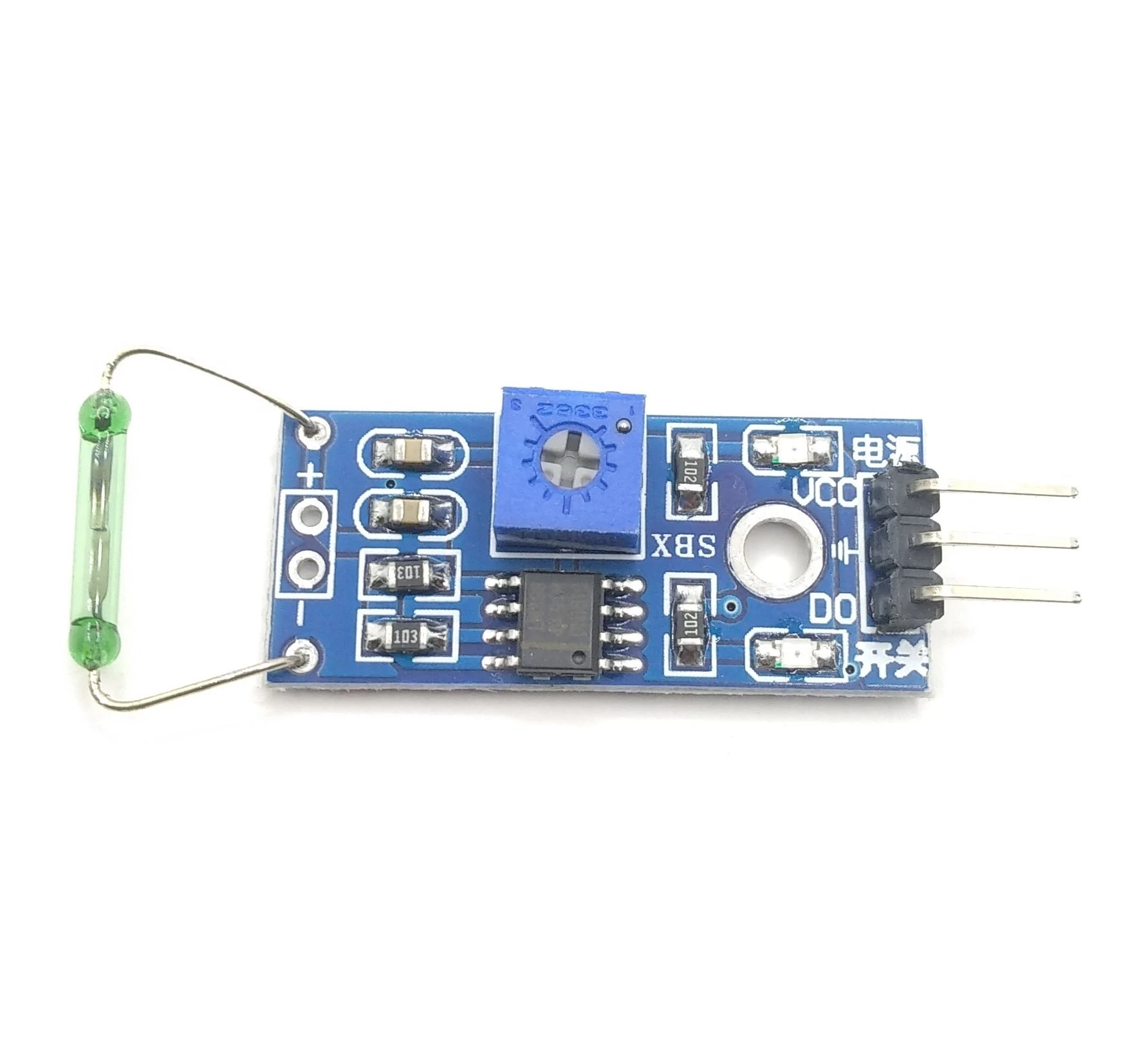

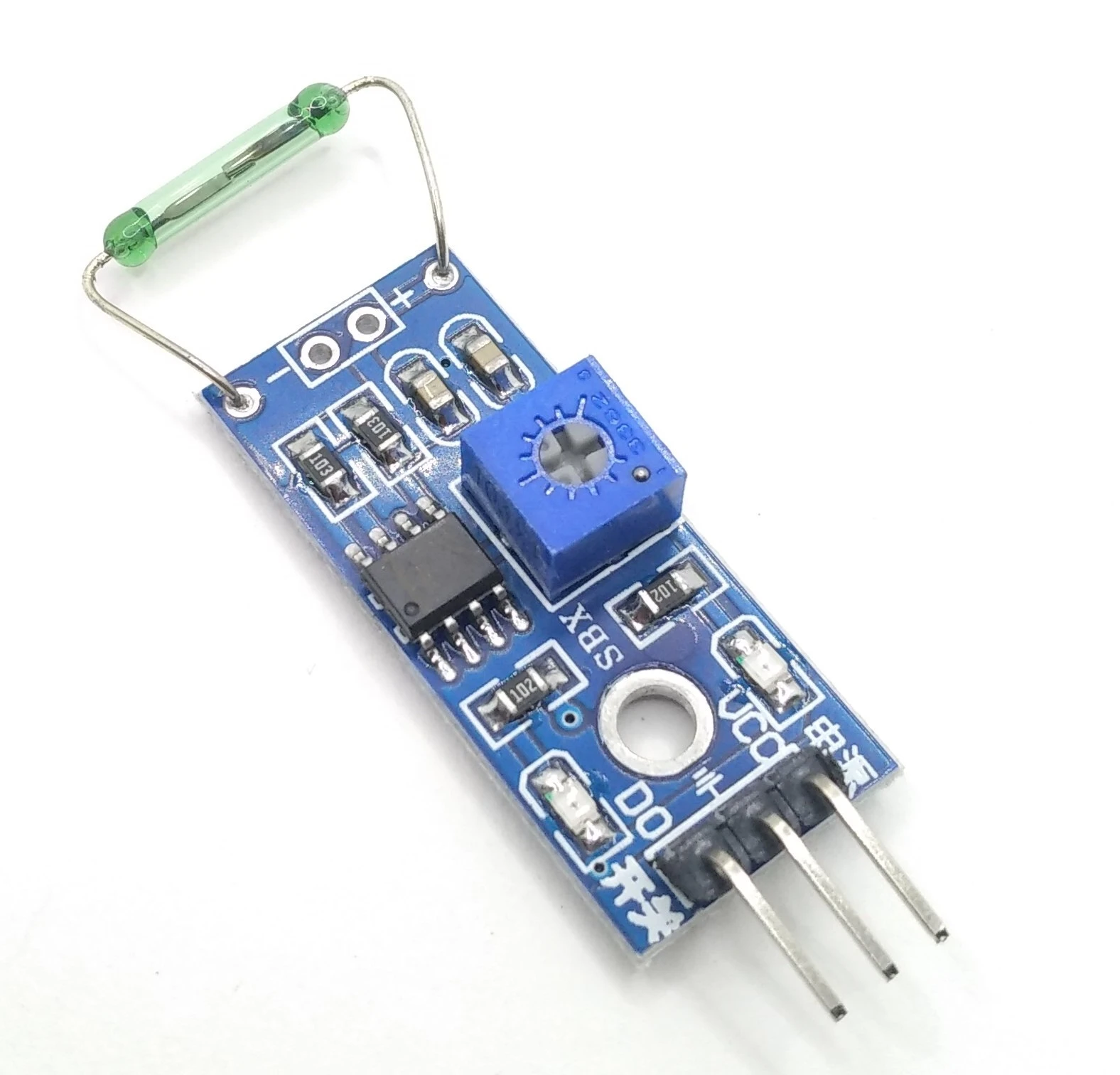

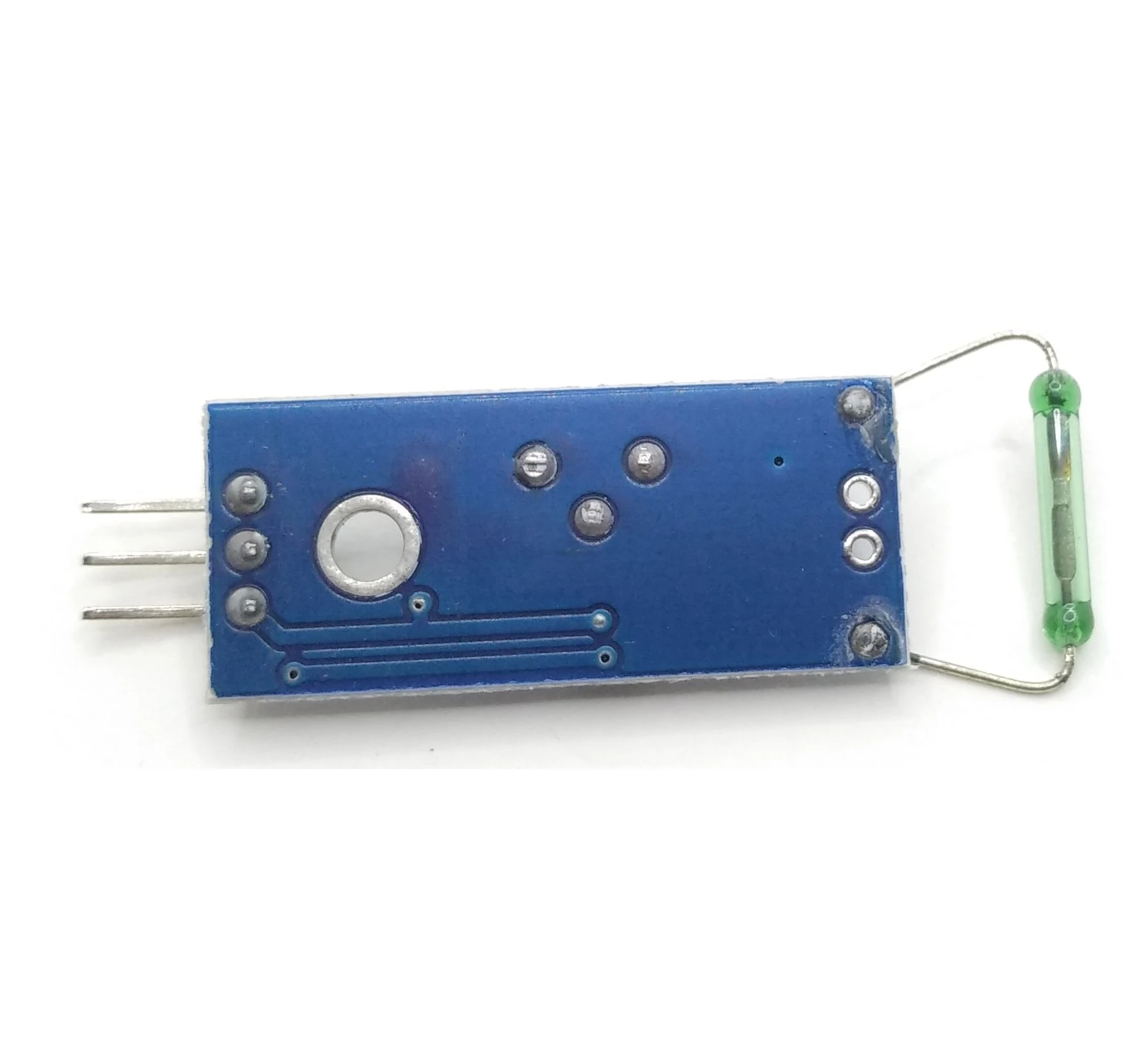

The Reed Switch Module is a magnetically operated switch that provides a contactless way to detect magnetic fields and trigger digital outputs. Enclosed in a robust module for easier handling and mounting, it is ideal for applications requiring simple, non-contact ON/OFF switching. The internal reed switch contains two ferrous metal strips housed in an inert gas-filled glass capsule, which close when exposed to a magnetic field and open when the field is removed.

Features:

Contactless Switching: Operates through proximity to a magnetic field—ideal for non-invasive switching needs.
Digital Output: Outputs a clean digital signal (0 or 1), easily interfaced with microcontrollers.
Comparator-Based Design: Provides clean signal transitions and strong driving capability.
Compact & Easy to Mount: Includes fixed mounting holes for stable and convenient installation.
Durable Module: Protects the fragile reed switch, making it practical for embedded or external use.

Product Specifications:

Working Voltage: 3.3V – 5V
Current Capacity: Up to 1.2A
Output Type: Digital (high/low)
Structure: Open reed switch inside a glass enclosure with inert rhodium gas
Mounting: Bolt holes provided for secure placement

Application:

Magnetic proximity detection
Door/window position sensors
Robotics and automation
Smart home and security systems
Position tracking in moving machinery

Disclaimer:
Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
