PIR Motion Detector Sensor

In Stock

SKU: PIR_SNR_R2-D-1

PIR Motion Detector Sensor

(0) | 0 Reviews | 11 Orders | 0 Wish Listed

₹75.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

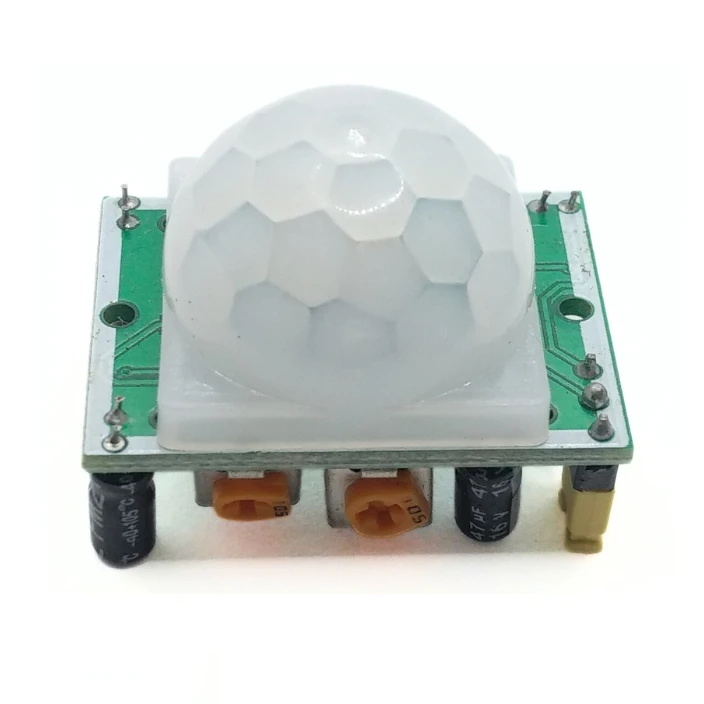

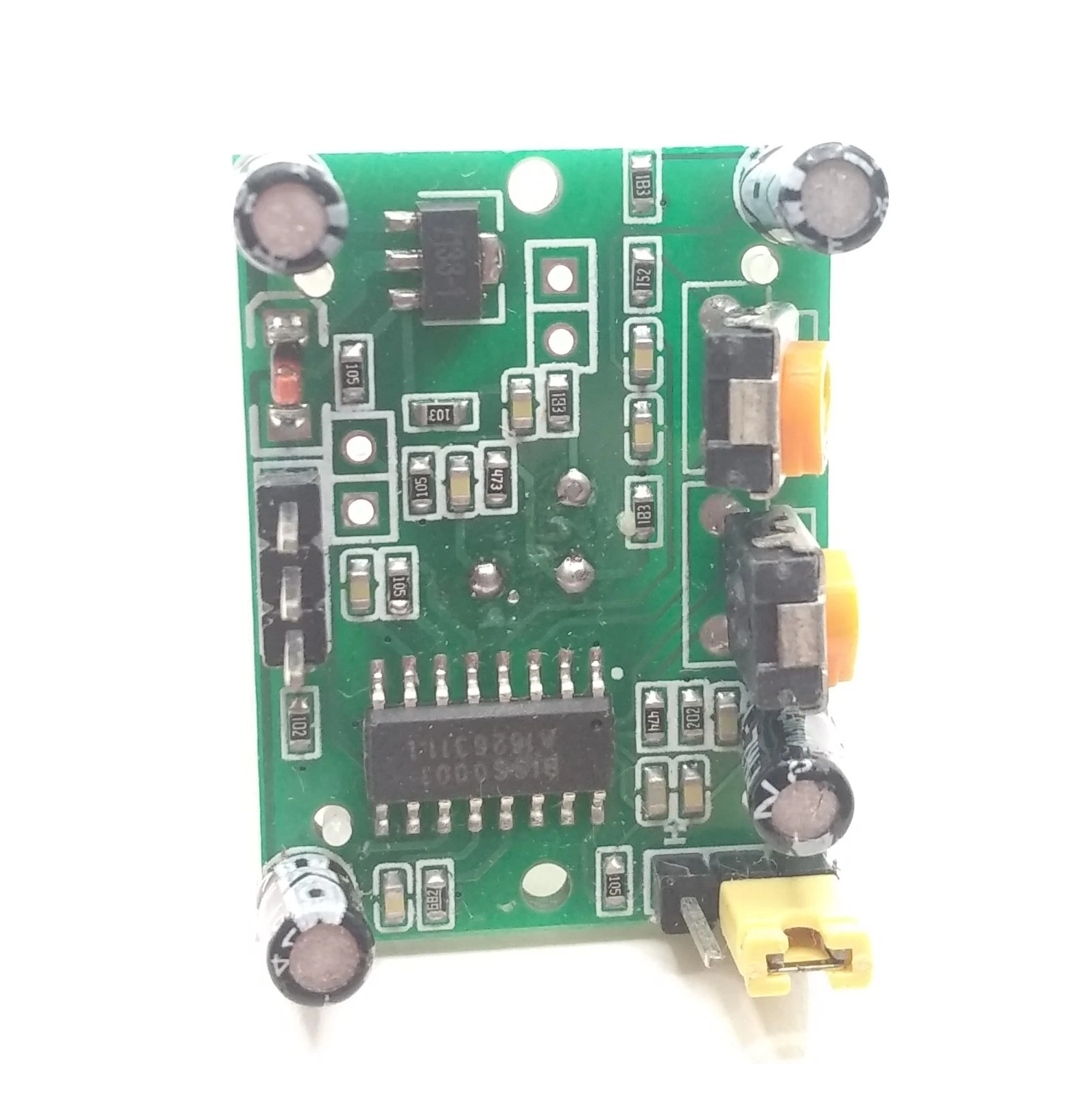

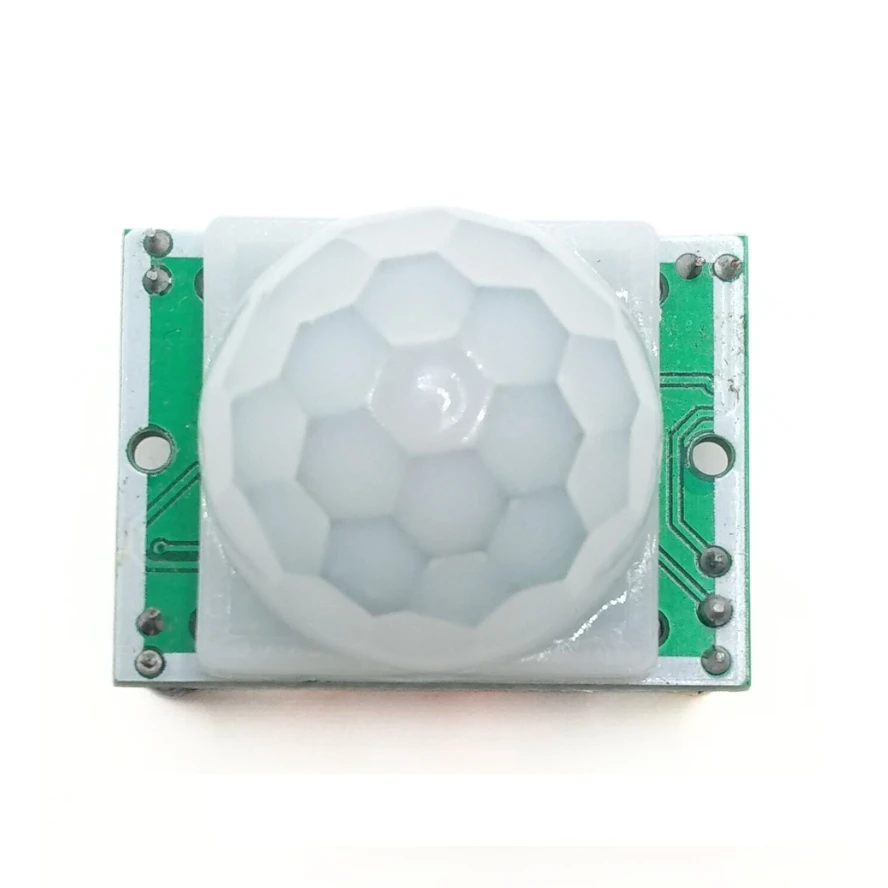

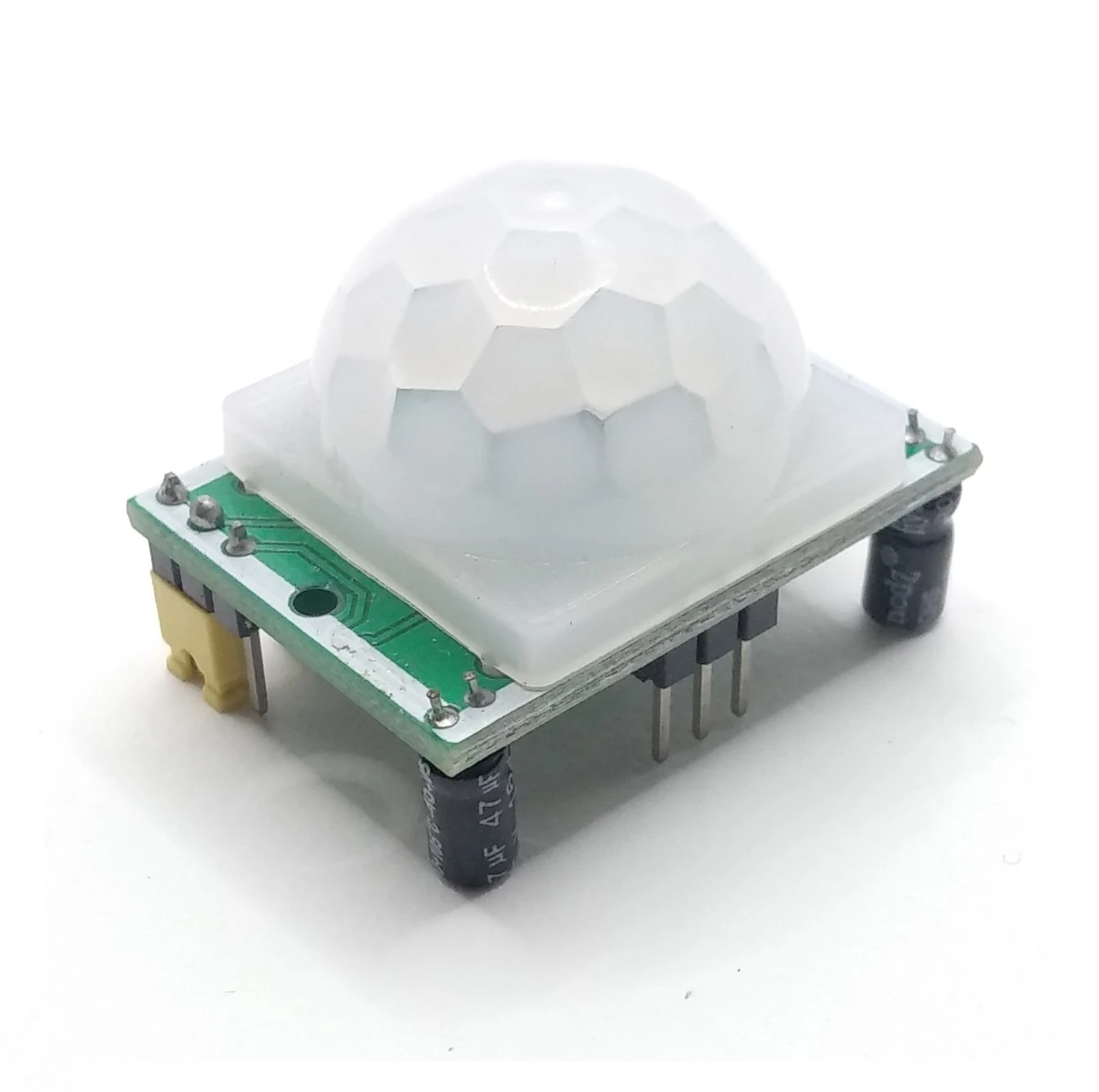

This compact infrared motion sensor module offers reliable motion detection for automation, security, and lighting applications. It includes a built-in control circuit and adjustable sensitivity and delay time, making it suitable for various environments and customizable setups.

Features:

Adjustable detection distance (3–7 meters)
Configurable delay time (5 to 200 seconds)
Low power consumption: <60μA standby
TTL level digital output (High/Low)
Wide voltage operating range: DC 4.5V – 20V
Compact design for easy integration
Available in White + Green or White + Blue

Product Specifications:

Working Voltage: DC 4.5V – 20V
Current Drain: <60μA
Detection Range: <140°
Output Voltage: 3.3V TTL signal (High/Low level)
Detection Distance: Adjustable, 3 to 7 meters
Delay Time: Adjustable, 5 to 200 seconds (±3%)
Blockade Time: 2.5 seconds (default)
Operating Temperature: -20°C to +80°C
Dimensions: Approx. 3.2cm x 2.4cm x 1.8cm
Sensitivity Adjustment:
→ Turn right to increase distance (~7m)
→ Turn left to decrease distance (~3m)
Time Adjustment:
→ Turn right to increase delay (~200s)
→ Turn left to reduce delay (~5s)

Applications:

Motion-activated lighting systems
Security and intrusion detection systems
Automated doors and appliances
DIY electronics and Arduino-based projects

Disclaimer:
Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
