Normally Open Vibration Sensor Module

In Stock

SKU: VIB_SNR_R2-C-6

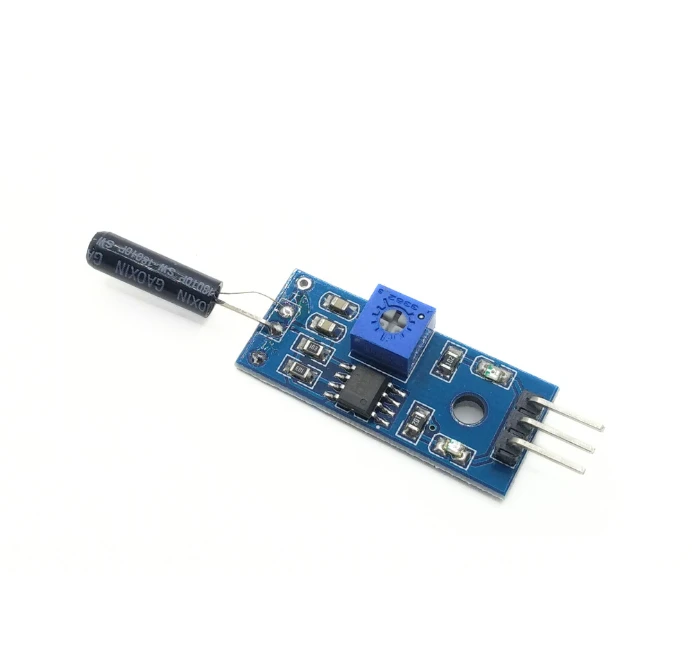

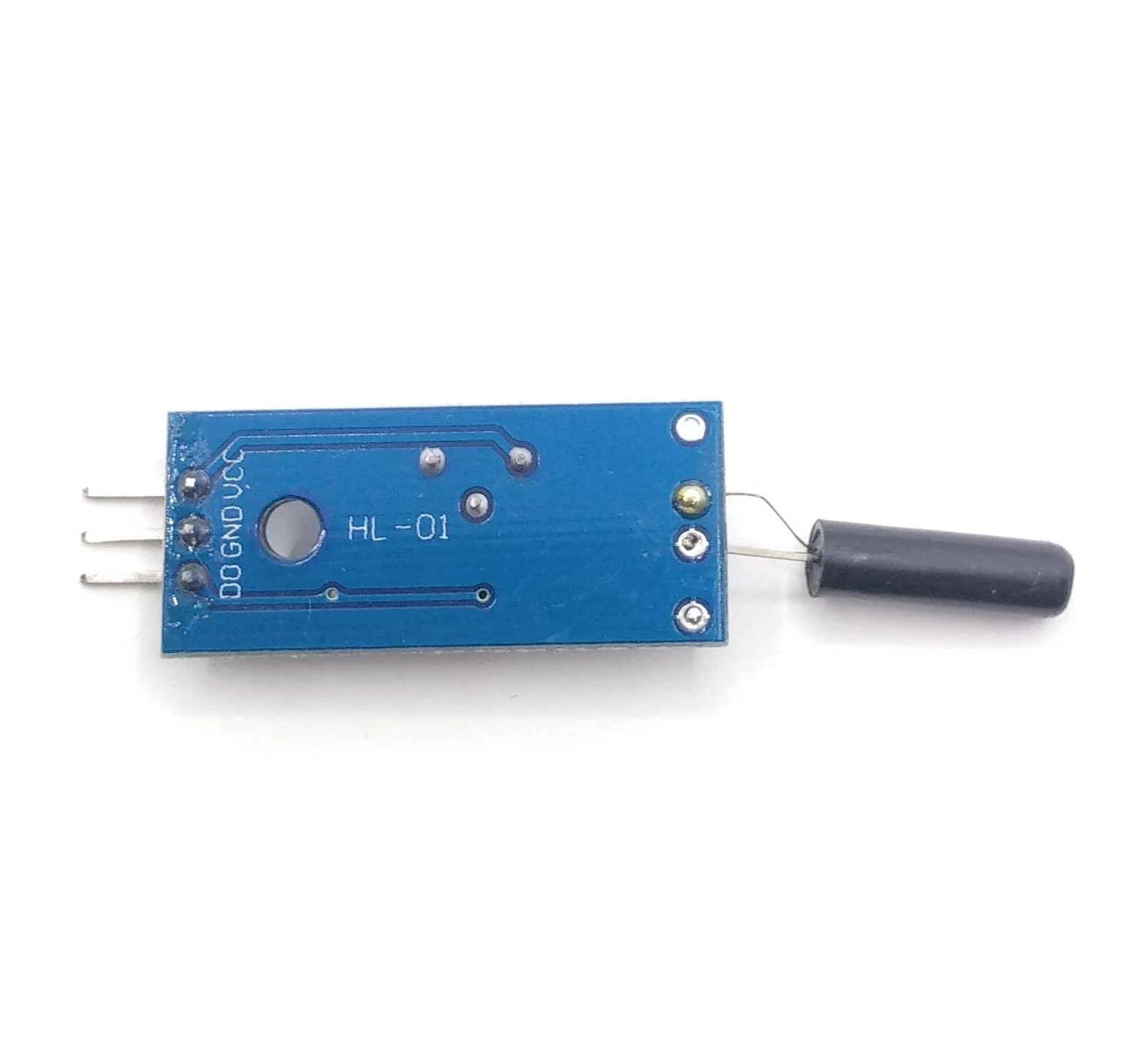

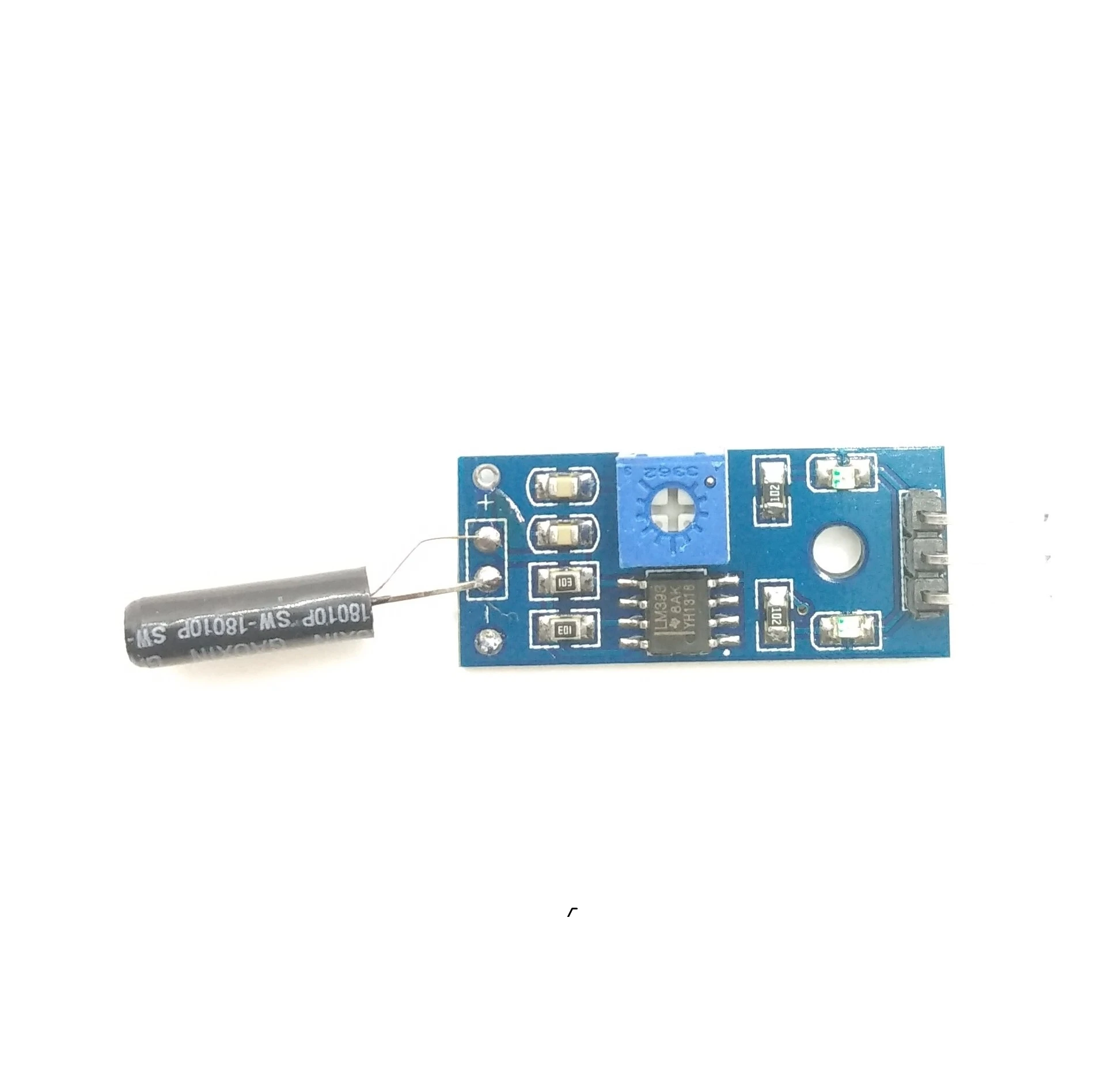

Normally Open Vibration Sensor Module

(0) | 0 Reviews | 1 Orders | 0 Wish Listed

₹36.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:

The Normally Open Vibration Sensor Module is designed for detecting vibrations in various applications such as security alarms, smart cars, and electronic projects. This module features a high-sensitivity SW-18015P vibration sensor and operates with a wide voltage range of 3.3V to 5V. When vibration occurs, the vibration switch momentarily conducts, sending a low signal output and activating the green LED. The module is ideal for detecting environmental vibrations and can be easily interfaced with microcontrollers for triggering alarms or actions.

Features:

Wide Operating Voltage: 3.3V to 5V for compatibility with various systems.
High-Sensitivity Sensor: SW-18015P vibration switch for precise detection.
Output: Clean digital signal output, with a high driving ability of >15mA.
Onboard LED: Green LED indicator lights up when the sensor detects vibration.
Easy Installation: Fixed bolt holes for easy mounting in projects.
Comparator Output: Clean signal with a good waveform, using LM393 comparator.

Product Specifications:

Operating Voltage: 3.3V to 5V
Sensor Type: SW-18015P vibration switch
Output: Digital (High/Low) signal, clean waveform
Output Drive Current: >15mA
Comparator: LM393 for stable and clean output signal
LED Indicator: Green LED lights up on vibration detection
Mounting: Fixed bolt holes for easy installation

Application:

Used in security alarms, smart car systems, and electronic building blocks.
Ideal for environmental vibration detection and triggering actions like alarms or alerts.

Disclaimer:
Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
