Description:

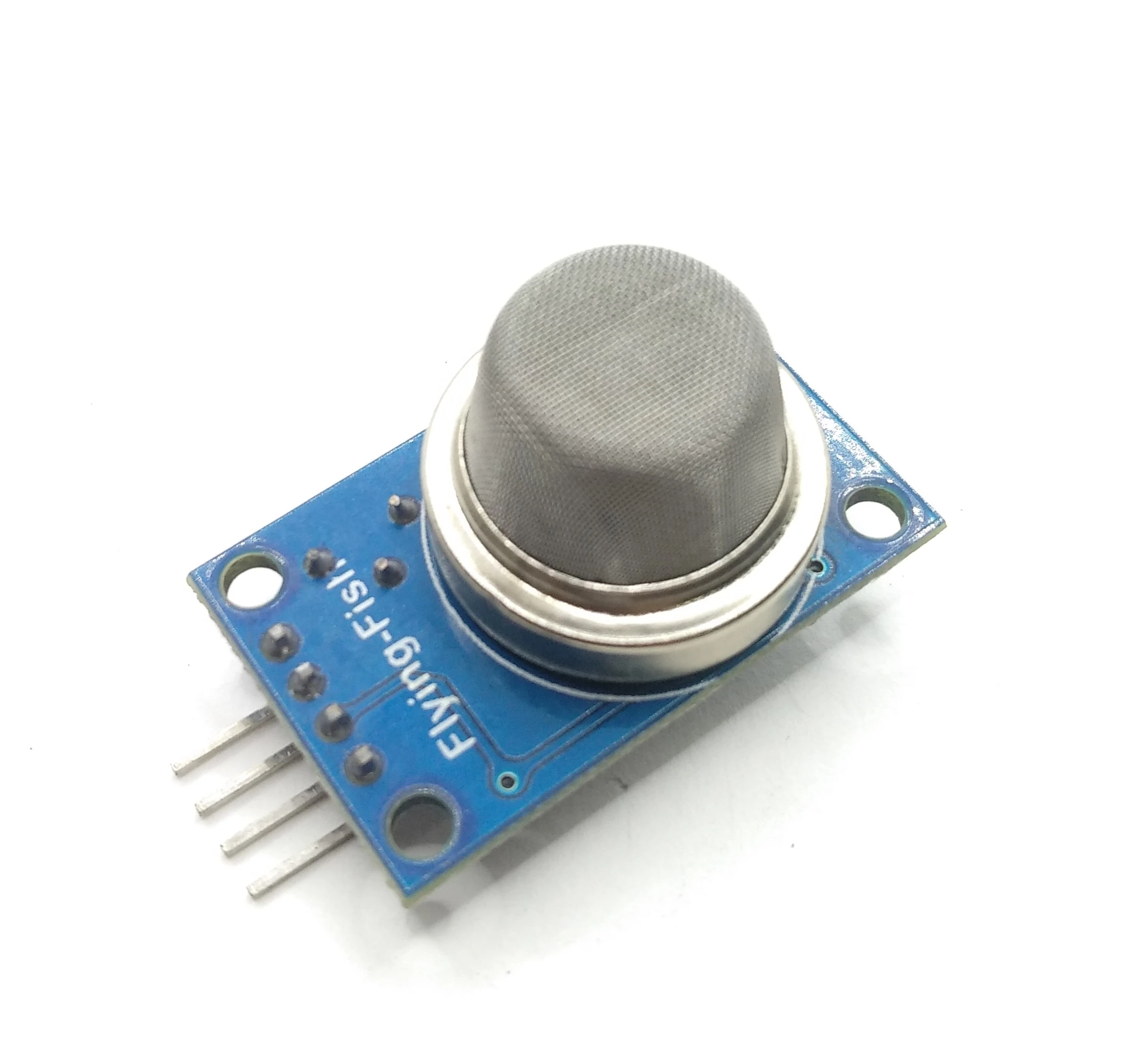

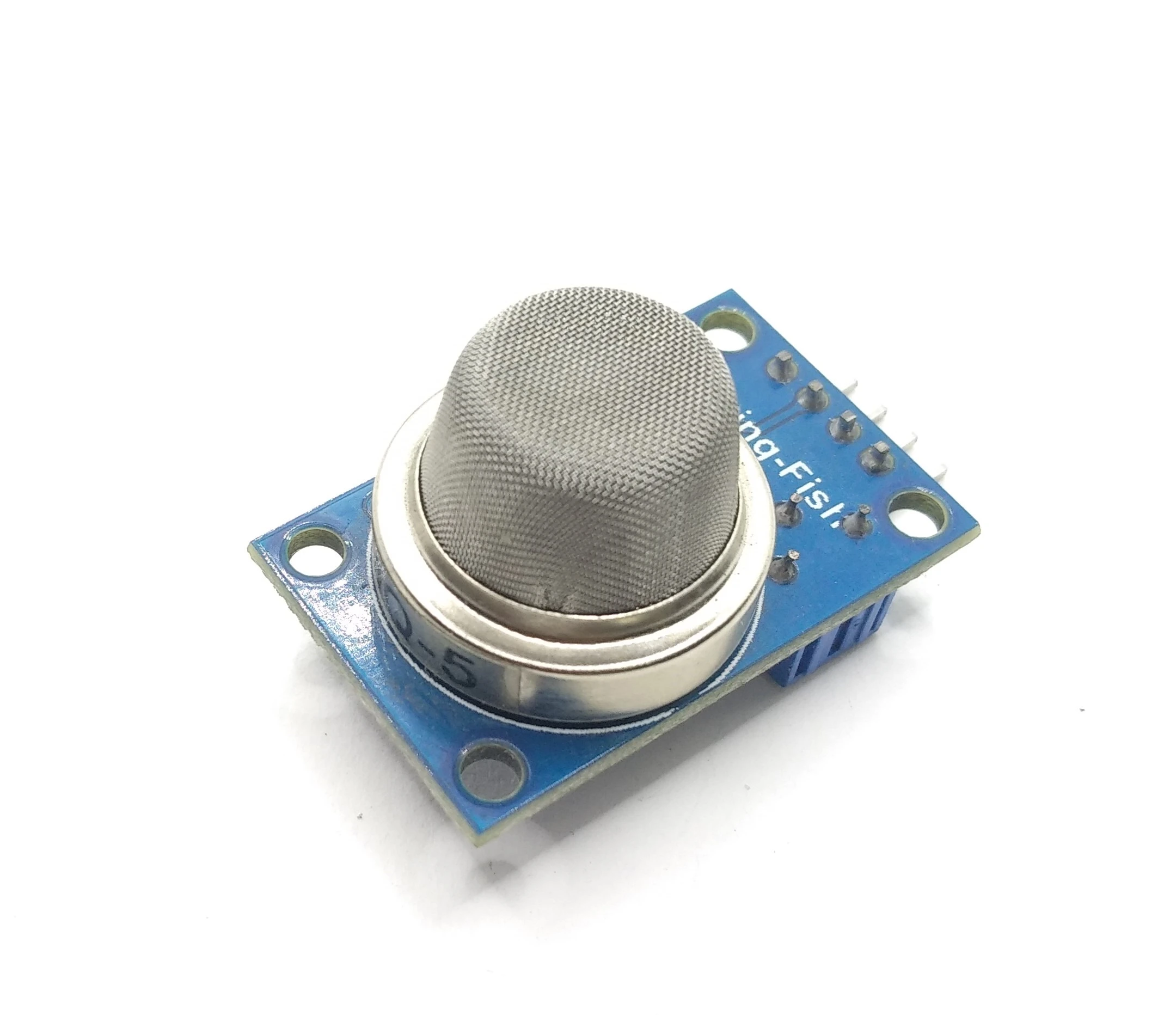

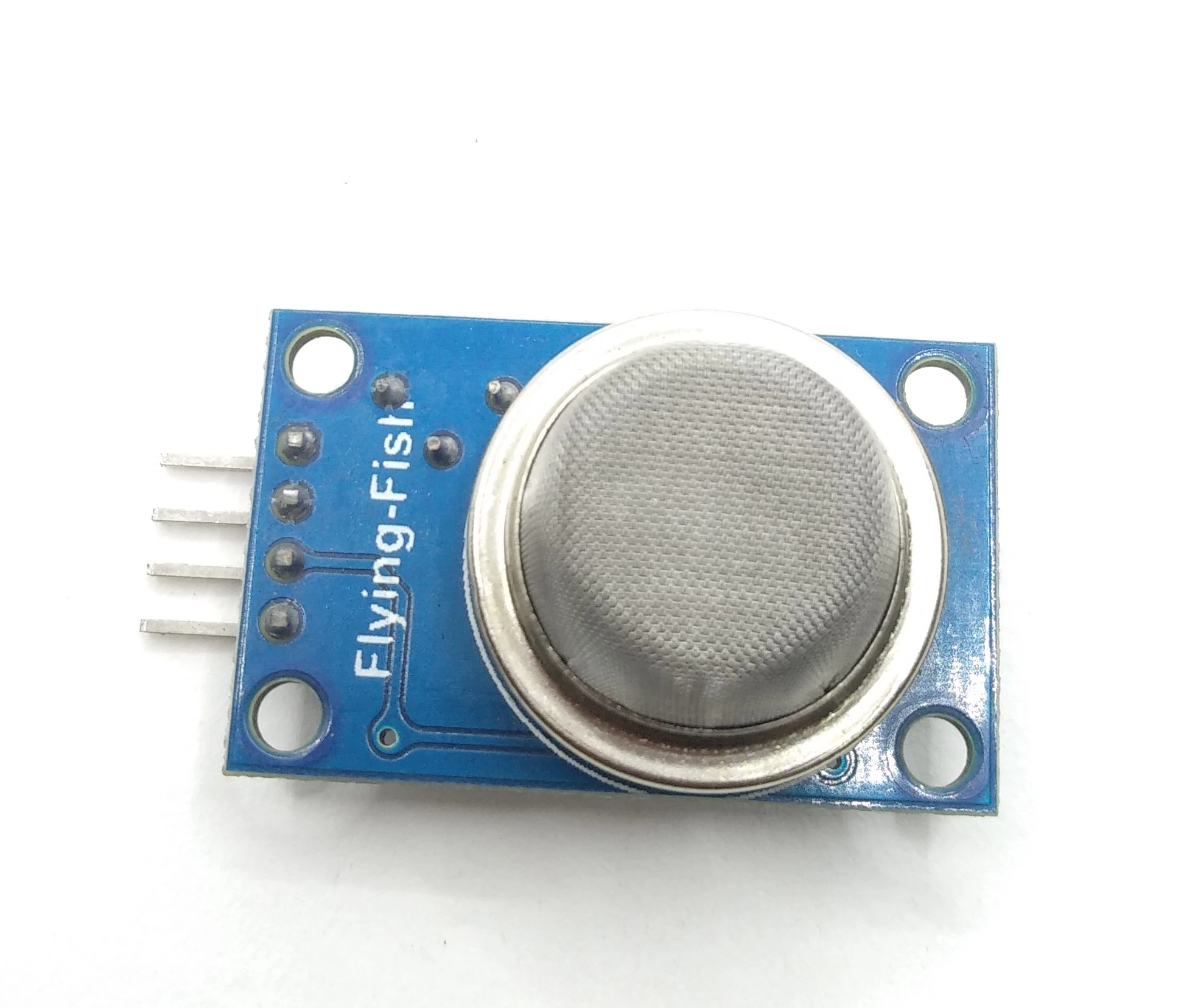

The MQ5 Gas Sensor is designed for gas leakage detection and is suitable for both home and industrial equipment, specifically for detecting LPG, natural gas, and coal gas. The sensor uses SnO2 (tin dioxide) as the sensitive material, which has lower conductivity in clean air. When combustible gases like LPG or natural gas are present in the air, the sensor's conductivity increases in proportion to the gas concentration. This change in conductivity can be measured, and the corresponding gas concentration can be determined.
Features:
Power Supply: 5 Volts
Working Current: 150mA
Heater Voltage: 5.0V
Interface Type: Analog & Digital
DOUT (Digital Output): TTL output
AOUT (Analog Output): Corresponding analog voltage output
Sensitivity: High sensitivity to LPG, natural gas, and town gas
Low sensitivity to alcohol and smoke
Item Weight: 10 grams
Operating Voltage Range: 2.5V ~ 5.0V

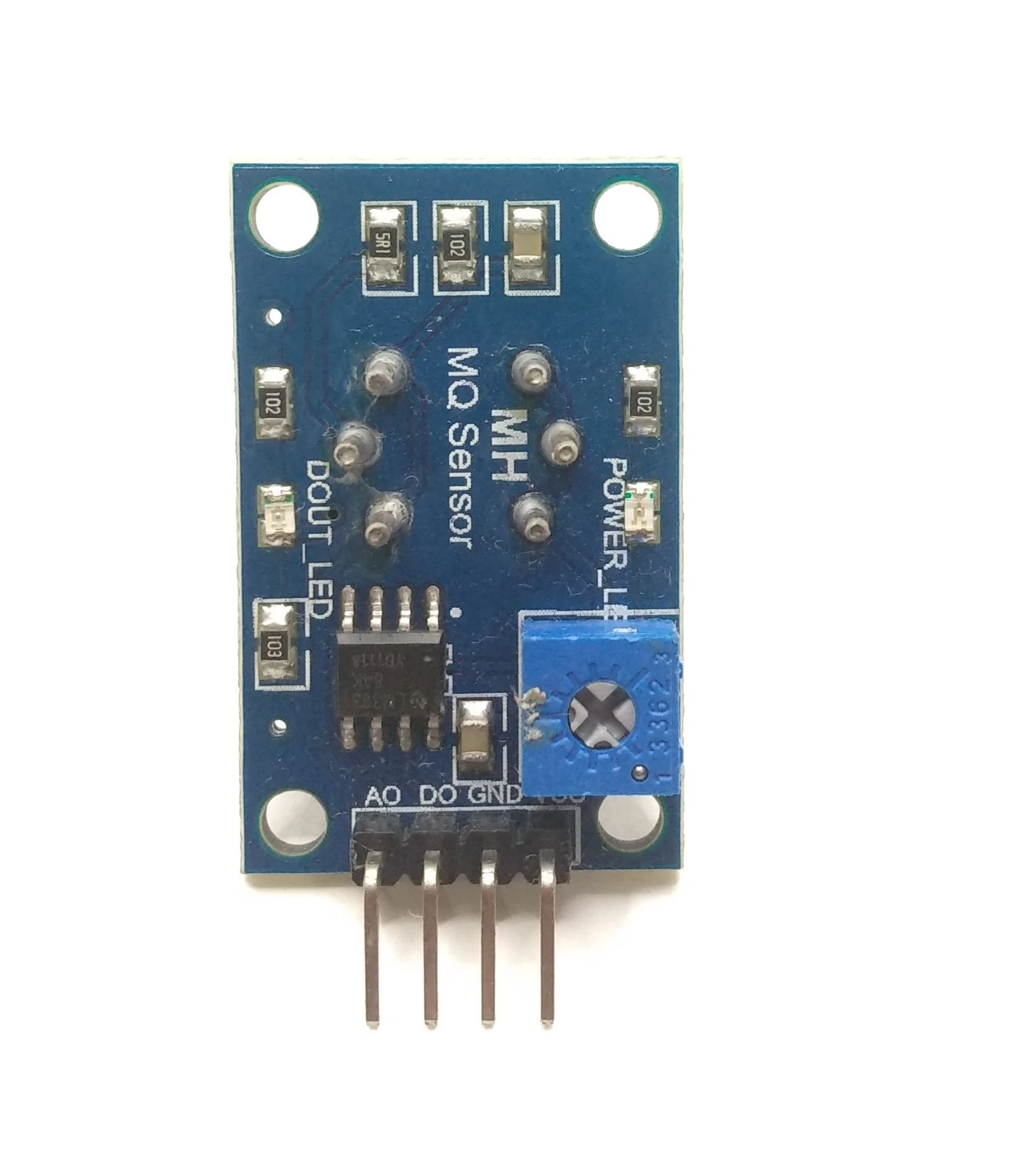

Connectors:
VCC: 2.5V ~ 5.0V
GND: Ground
Aout: MCU.IO (Analog Output)
Dout: MCU.IO (Digital Output)
Application:
Gas leakage detection in homes, kitchens, and industrial areas
LPG, natural gas, and coal gas monitoring
Ideal for use in safety systems to detect hazardous gas concentrations
Disclaimer:
Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
