MQ2 Gas Sensor Module

In Stock

SKU: MQ2_SNR_R2-B-13

MQ2 Gas Sensor Module

(0) | 0 Reviews | 4 Orders | 0 Wish Listed

₹95.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:

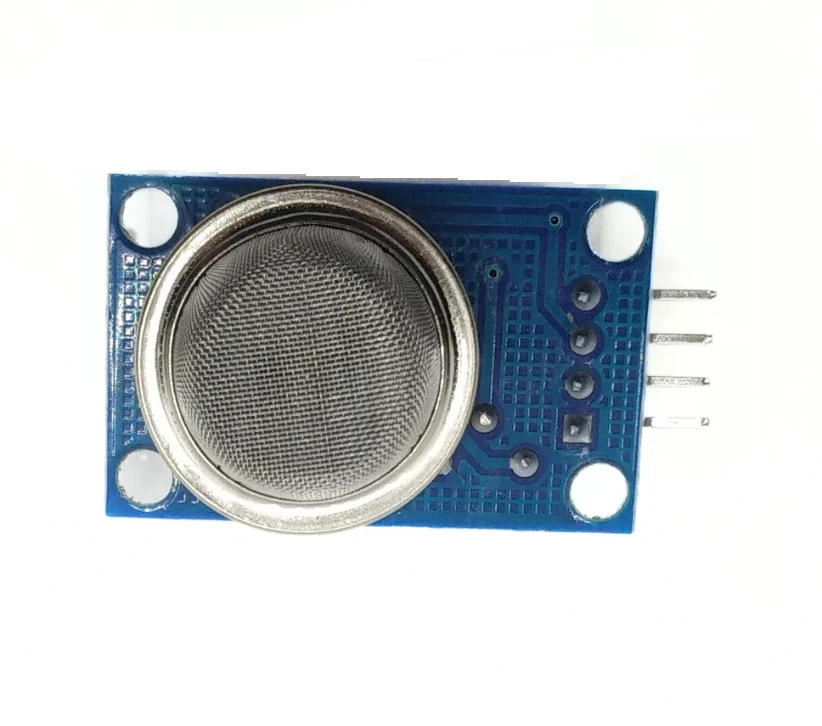

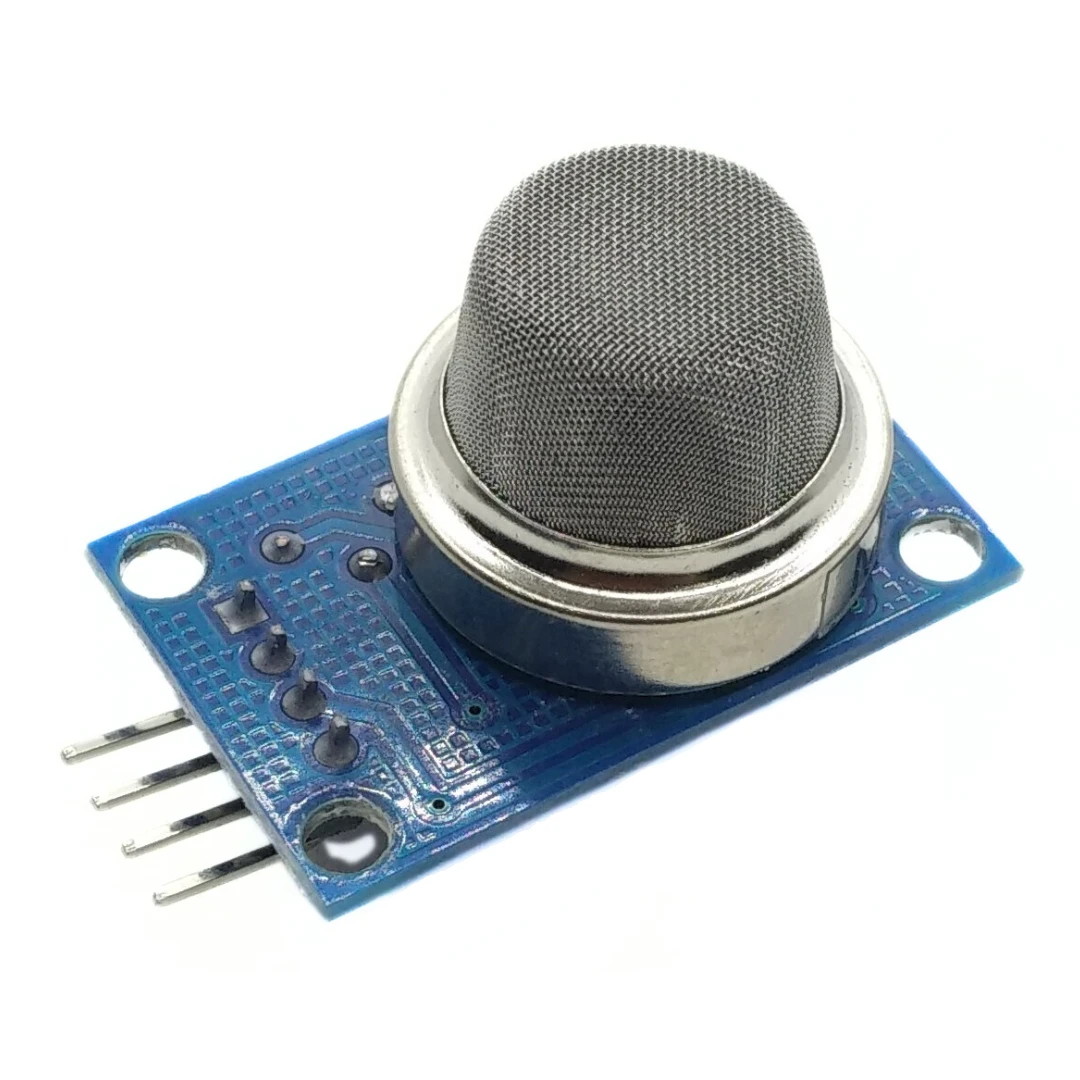

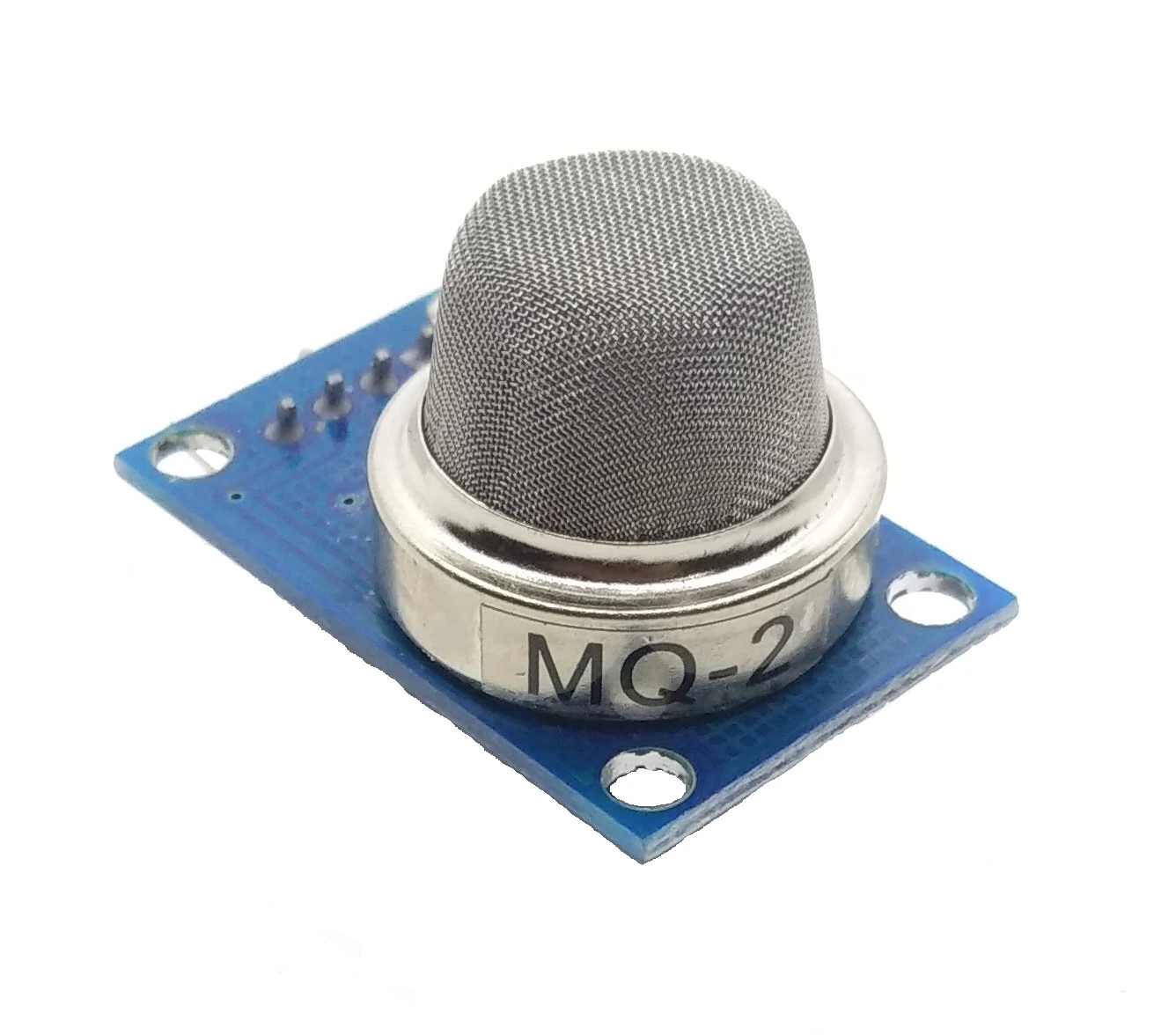

The MQ2 Gas Sensor is a Metal Oxide Semiconductor (MOS) type gas sensor designed to detect gases such as Methane, Butane, LPG, Smoke, Alcohol, Propane, Hydrogen, and Carbon Monoxide. The sensor works by detecting changes in the resistance of the sensing material when it comes into contact with gas molecules. These sensors are commonly known as chemiresistors.

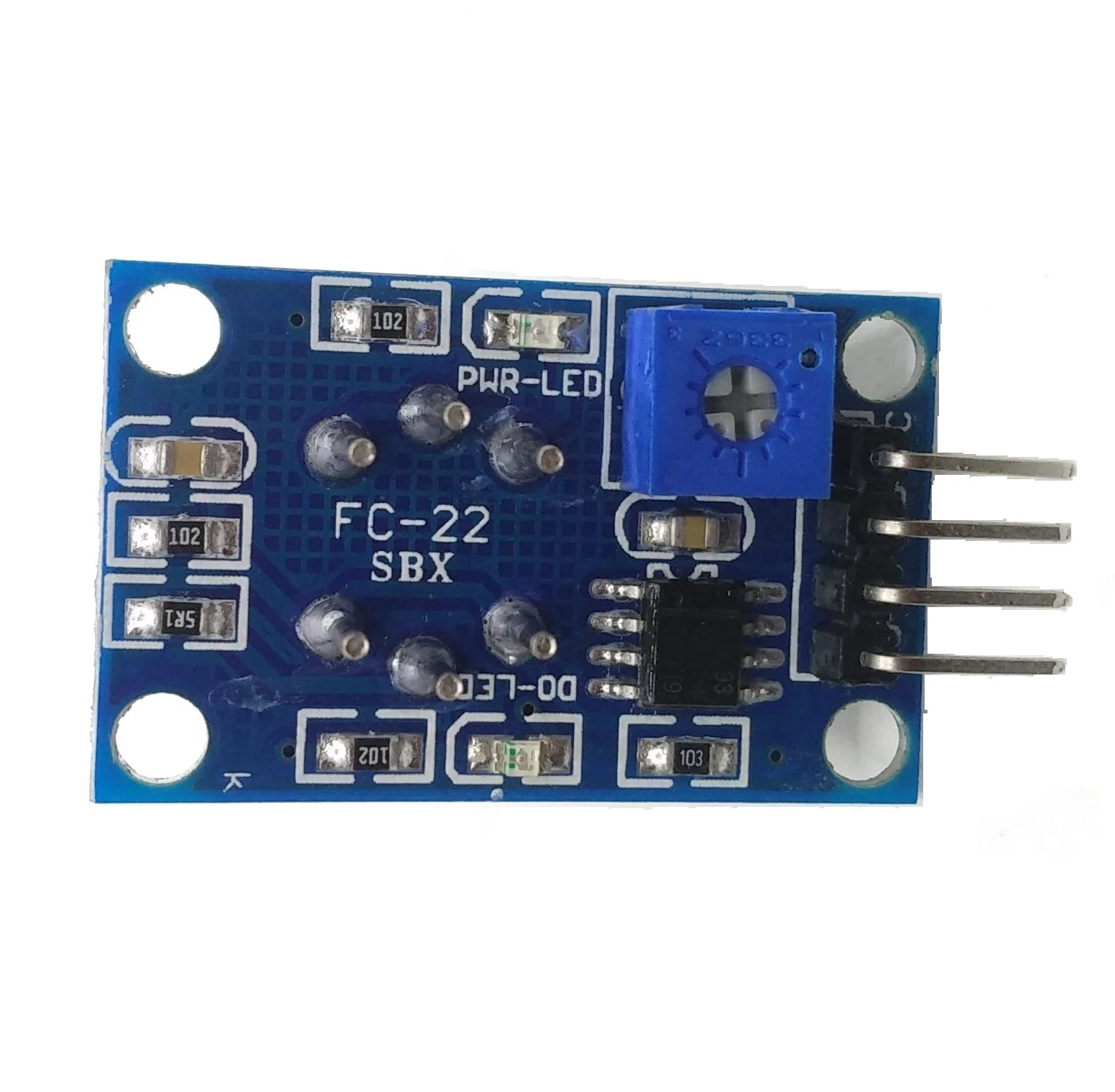

The MQ2 sensor module operates at a 5V DC supply and consumes about 800mW of power. It provides both analog and digital outputs, and the sensitivity of the digital output pin can be adjusted using an onboard potentiometer. The module is ideal for applications like gas leak detection in homes, industrial monitoring, and safety devices.

Features:

Operating Voltage: 5V
Analog Output: 0V to 5V
Digital Output: 0V or 5V (TTL Logic)
Gas Detection Range: 200 to 10000 ppm for gases like LPG, Smoke, Alcohol, Propane, Hydrogen, Methane, and Carbon Monoxide
Preheat Duration: 20 seconds
Sensitivity Adjustment: The sensitivity of the digital pin can be varied using the potentiometer
Application Type: Can be used as a digital or analog sensor
Power LED: Indicates when the device is powered on
Output LED: Glows to indicate the concentration of gas present
Power Consumption: 800mW

Applications:

Gas leak detection in homes and industries
LPG, Methane, Propane, and Alcohol gas monitoring
Smoke detection
Industrial safety systems
Home safety systems

Disclaimer:
Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
