Description:

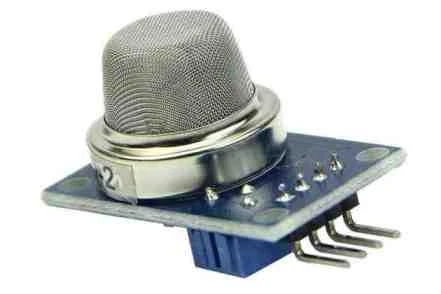

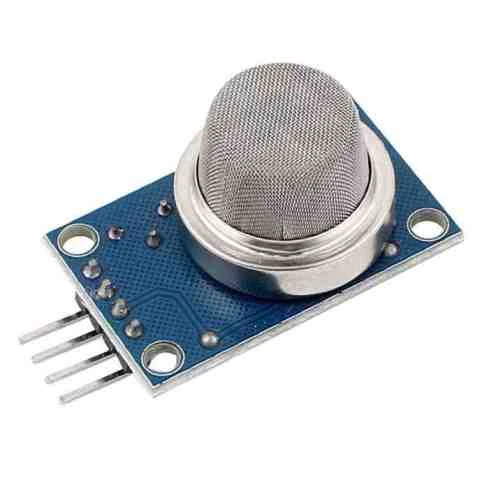

The MQ-2 Smoke LPG Butane Hydrogen Gas Sensor Detector Module is an advanced gas sensor that boasts an impressive detection range of 300-10,000 ppm. It’s designed to detect a variety of gases, including LPG, methane, butane, propane, hydrogen, CO, alcohol, and smoke. This sensor module is highly sensitive, with a fast response time, making it ideal for gas leakage detection in both homes and industrial environments. The sensitivity can be easily adjusted via the onboard potentiometer for more precise measurements.
Wide Detection Range: Detects gas concentrations from 300ppm to 10,000ppm.
Multi-Gas Detection: Suitable for detecting LPG, methane, alcohol, butane, hydrogen, CO, and smoke.
High Sensitivity: Highly sensitive to a variety of gases, especially LPG, propane, and hydrogen.
Adjustable Sensitivity: The potentiometer allows for easy adjustment of the digital pin sensitivity.
Low-Cost Sensor: Affordable solution for a variety of gas detection applications.
Simple Circuit: Requires a simple circuit for signal conversion and output.
Durability: Robust construction and long lifespan.
Gas Types Detected: LPG, Butane, Hydrogen, Methane, Alcohol, Smoke, CO
Detection Range: 300ppm – 10,000ppm
Operating Voltage: 5V DC
Output Type: Analog and Digital (TTL) Output
Adjustable Sensitivity: Adjustable using onboard potentiometer
Response Time: Quick, with fast recovery time
Material: Stannic Oxide (SnO2)
Dimensions: Compact, easy to integrate into various systems
Gas Leak Detection: Used in home and industrial gas leak detection systems.
Portable Gas Detectors: Ideal for portable gas detectors used in emergency situations.
Environmental Monitoring: Suitable for monitoring hazardous gases in various industrial environments.
Fire Detection Systems: Can be used in fire safety systems to detect the presence of smoke or flammable gases.
DIY Projects: Perfect for hobbyist and DIY projects related to air quality monitoring.
Product details, specifications, and colors may update from time to time without prior notice.
