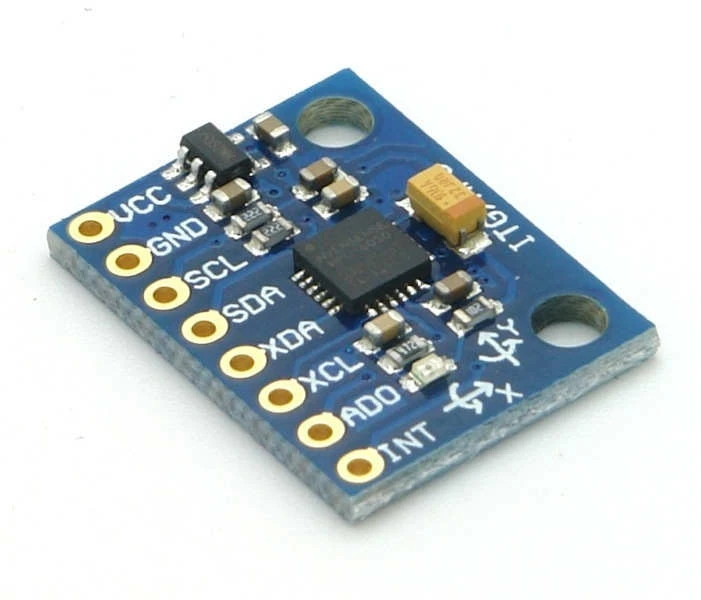

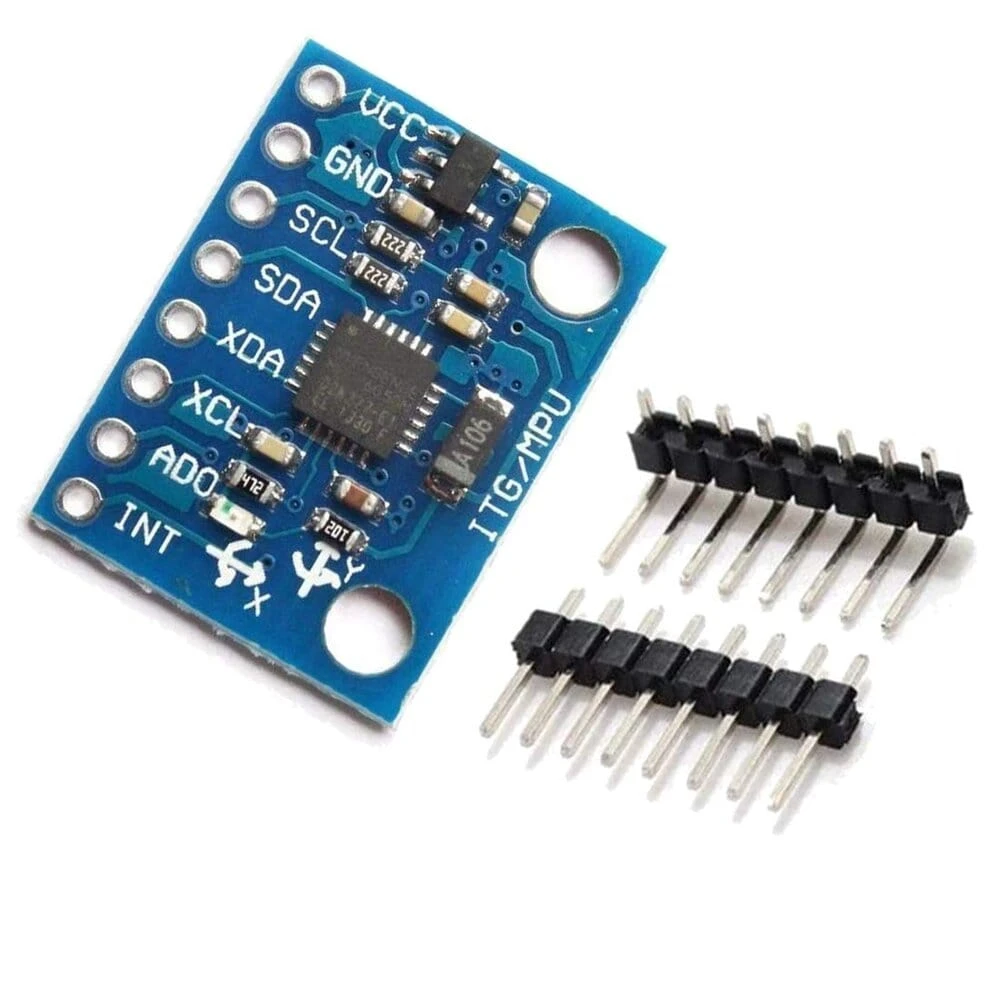

MPU6050 6-Axis Gyroscope and Accelerometer Sensor Module

In Stock

SKU: R2-D-13

MPU6050 6-Axis Gyroscope and Accelerometer Sensor Module

(0) | 0 Reviews | 22 Orders | 0 Wish Listed

₹149.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

MPU6050 6-Axis Gyroscope and Accelerometer Sensor Module

The MPU6050 is a highly integrated motion tracking device that combines a 3-axis gyroscope and a 3-axis accelerometer on a single chip. It is designed to provide accurate motion sensing for a wide range of applications, including drones, robotics, gaming, wearable devices, and mobile phones. The MPU6050 offers low power consumption and high precision, making it ideal for real-time motion tracking and control systems.

Equipped with a Digital Motion Processor (DMP), the MPU6050 can offload complex 6-axis MotionFusion algorithms from the main processor, improving system efficiency. Its I2C interface allows easy integration with microcontrollers like Arduino, Raspberry Pi, and other embedded systems.

Technical Specifications

Sensor Type: 6-axis MEMS MotionTracking device
Axes:
- 3-Axis Gyroscope (X, Y, Z)
- 3-Axis Accelerometer (X, Y, Z)
Gyroscope Range: ±250, ±500, ±1000, ±2000 °/s (configurable)
Accelerometer Range: ±2g, ±4g, ±8g, ±16g (configurable)
Output Resolution:
- Gyroscope: 16-bit
- Accelerometer: 16-bit
Communication Interface: I2C (up to 400kHz)
Power Supply: 3.3V (operates at 2.3V to 3.4V)
Power Consumption:
- Active Mode: ~3.9mA
- Sleep Mode: ~5µA
Digital Motion Processor (DMP): On-chip motion processing
Operating Temperature: -40°C to +85°C
Package Type: LGA-24
Dimensions: Approximately 4x4 mm (chip size)
Additional Features:
- Integrated temperature sensor
- Programmable interrupts
- FIFO buffer for sensor data
Typical Applications: Drones, Robotics, Gaming Controllers, Smartphones, Wearable Devices, Motion Tracking Systems
