Description:

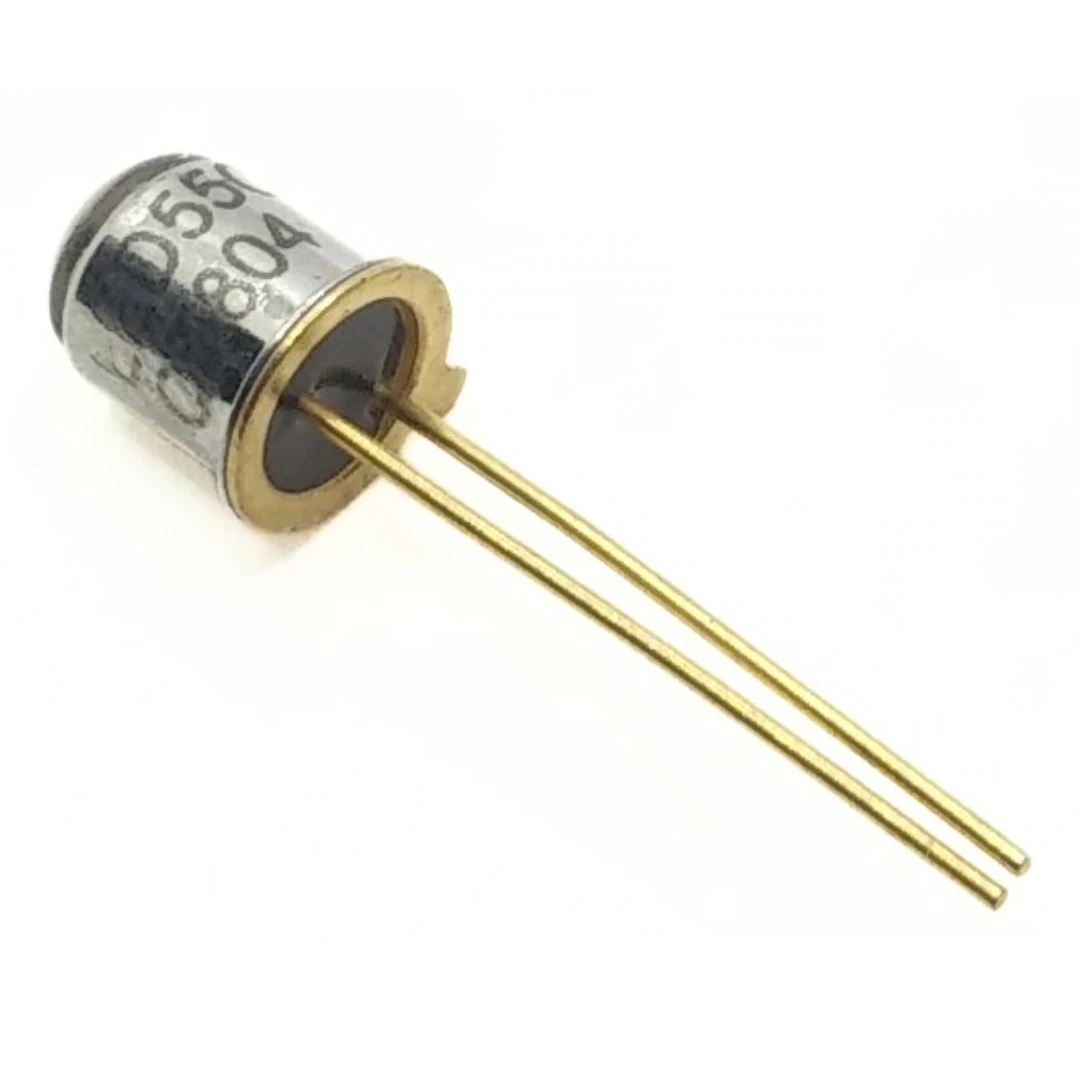

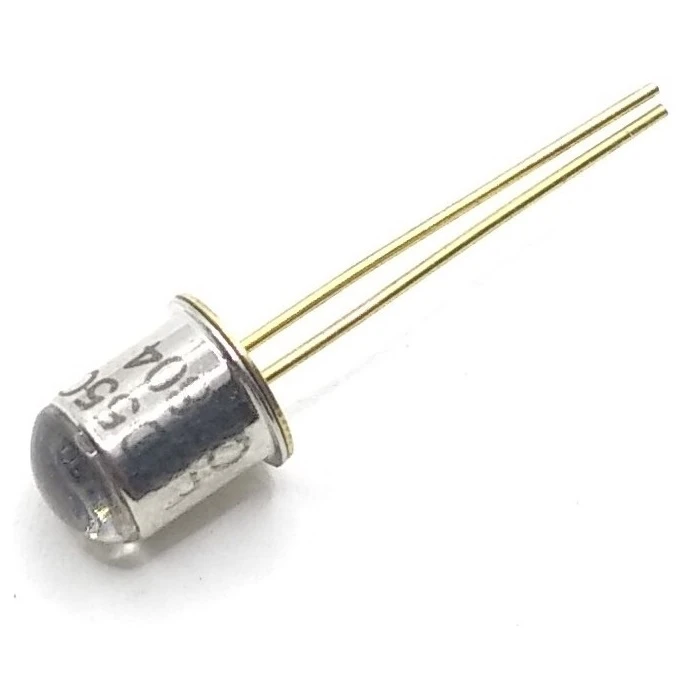

The LED55C is a high-performance 940nm infrared LED housed in a TO-46 metal can package, offering a narrow emission angle. It’s engineered for precision optical applications and pairs well with TO-18 series phototransistors.

Features:

Excellent optical-to-mechanical alignment
Hermetically sealed metal can package
Wavelength and mechanically matched to TO-18 phototransistors
High irradiance with narrow angle output

Product Specifications:

Peak Wavelength: 940 nm
Package Type: TO-46
Operating Temperature: -65°C to +125°C
Storage Temperature: -65°C to +150°C
Continuous Forward Current: 100 mA
Peak Forward Current (1μs pulse @ 200Hz): 10 A
Reverse Voltage: 3 V
Power Dissipation @ 25°C (ambient): 170 mW
Power Dissipation @ 25°C (case): 1.3 W

Application:

Infrared sensing systems
Optical encoders
Remote control transmitters
Industrial automation and counters
Research and development for IR applications

Disclaimer:
Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
