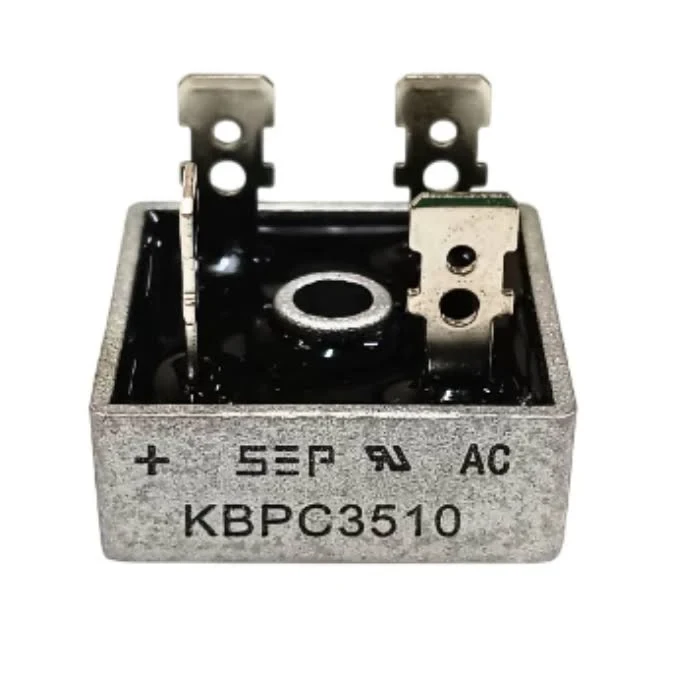

KBPC3510 Bridge Rectifier

In Stock

SKU: R2-A-2-5

KBPC3510 Bridge Rectifier

(0) | 0 Reviews | 0 Orders | 1 Wish Listed

₹90.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:
The KBPC3510 is a high-power single-phase bridge rectifier designed for converting AC input into DC output. It features a robust metal case with mounting provision, making it suitable for high-current applications in power supplies and industrial electronics.

Specifications:

Type: Bridge Rectifier
Configuration: Single-phase (4 diodes)
Forward Current: 35A
Peak Reverse Voltage: 1000V
Forward Voltage Drop: ~1.1V per diode
Output: Full-wave rectified DC
Package: KBPC metal case with mounting hole
Mounting: Chassis mount / panel mount
Terminal Type: Screw terminals / flat pins
Operating Temperature: up to 150°C

Features:

High current capacity (35A)
High voltage rating (1000V)
Durable metal casing
Easy mounting with screw hole
Reliable for heavy-duty applications

Applications:

High-power AC to DC power supplies
Battery charging systems
Industrial equipment
Motor drives
Welding machines

Polarity Identification:

~ → AC input terminals (2 terminals)
- → Positive DC output
− → Negative DC output

Important Note:

Requires proper heat sinking for high current operation
Ensure secure mounting for heat dissipation
Verify correct terminal connections before use
Significant heat generation under load

Package Includes:

1 × KBPC3510 Bridge Rectifier

Disclaimer:
No warranty. No guarantee. No return. No replacement.
