IR Wireless Remote control Sensor Module kit

IR Wireless Remote control Sensor Module kit
SKU: HS_IR_WRL_RMT_CRL_SNR_R2-C-5

(0) 0 Reviews 0 Orders 0 Wish listed

₹72.00

Quantity:

Total price :

(Tax : )

Overview
Reviews

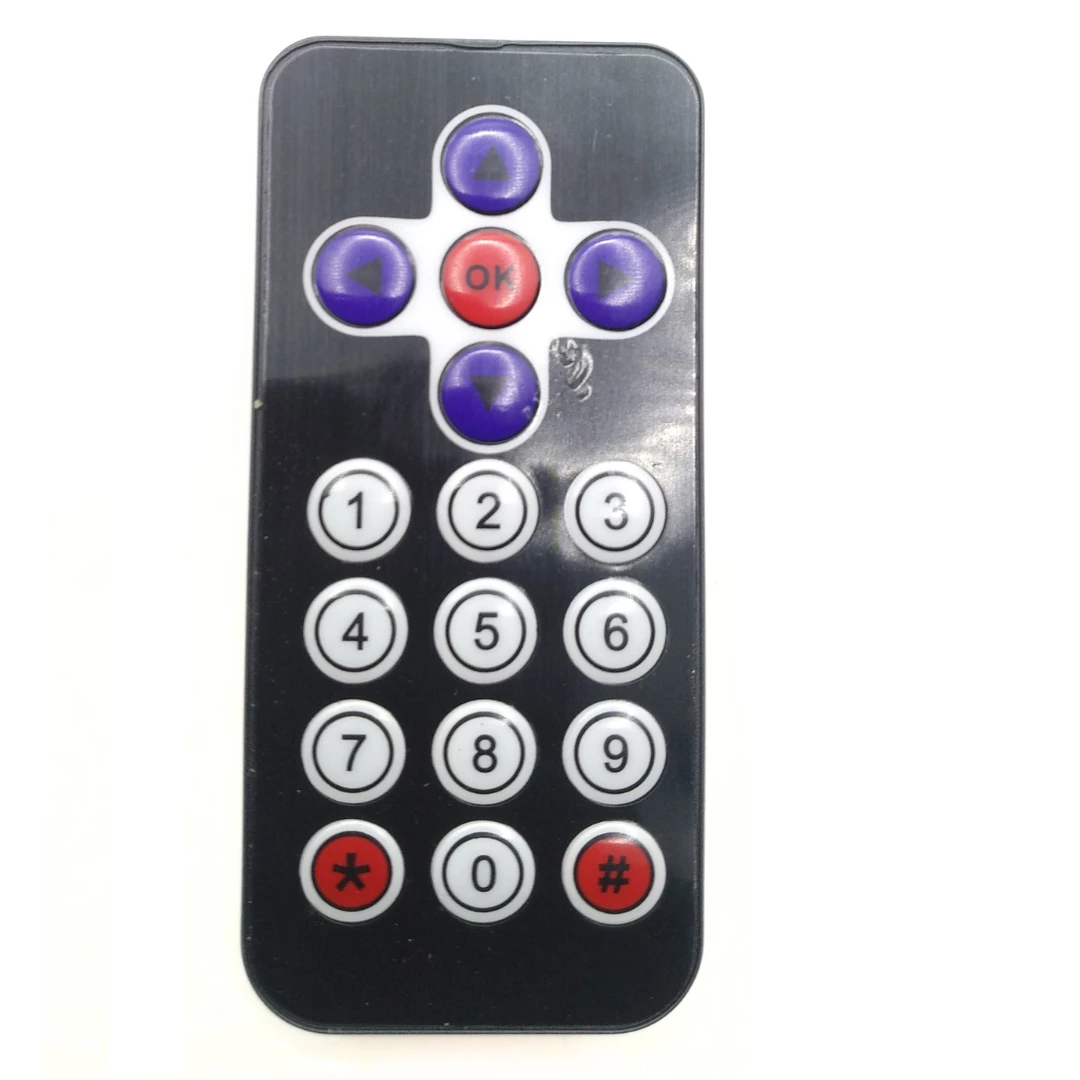

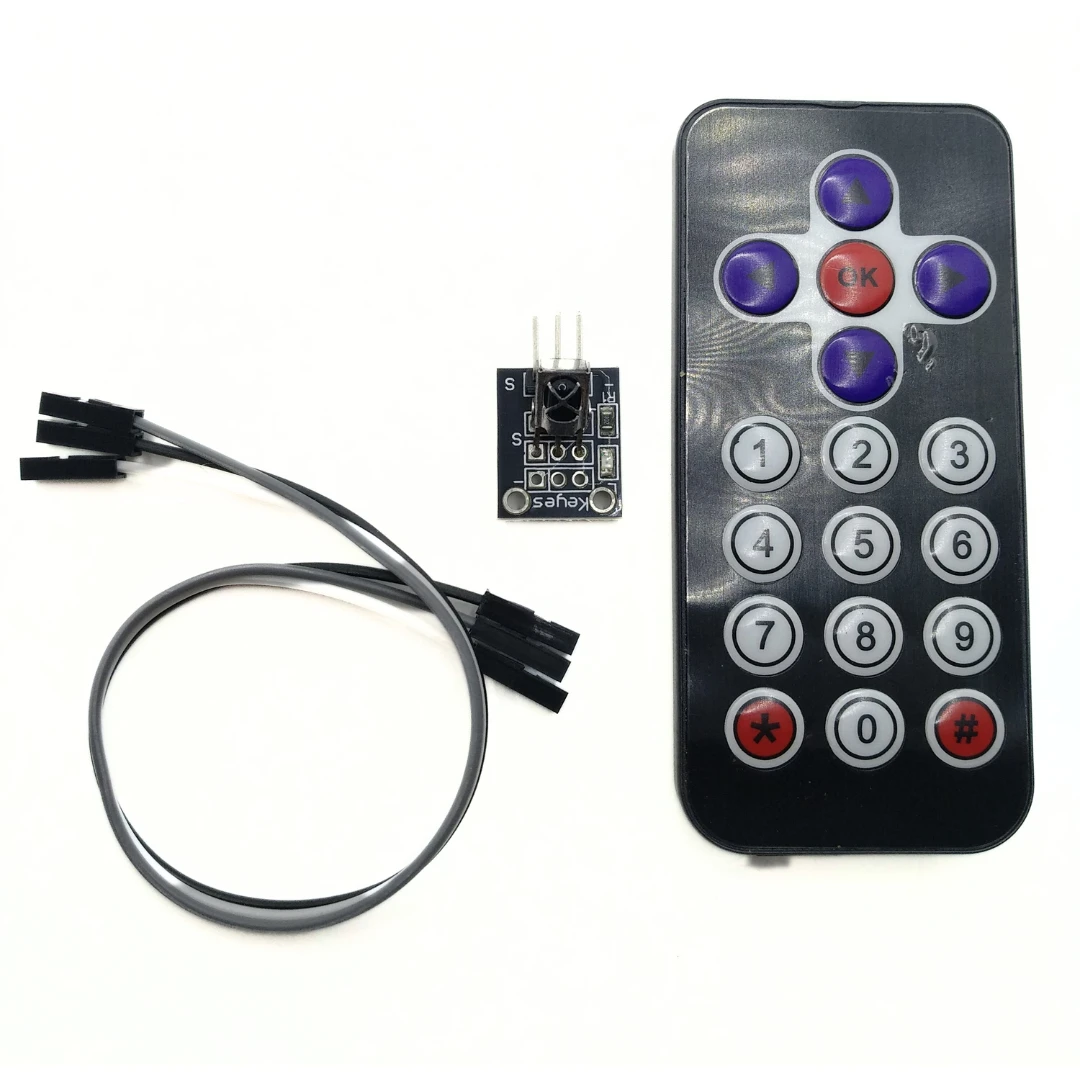

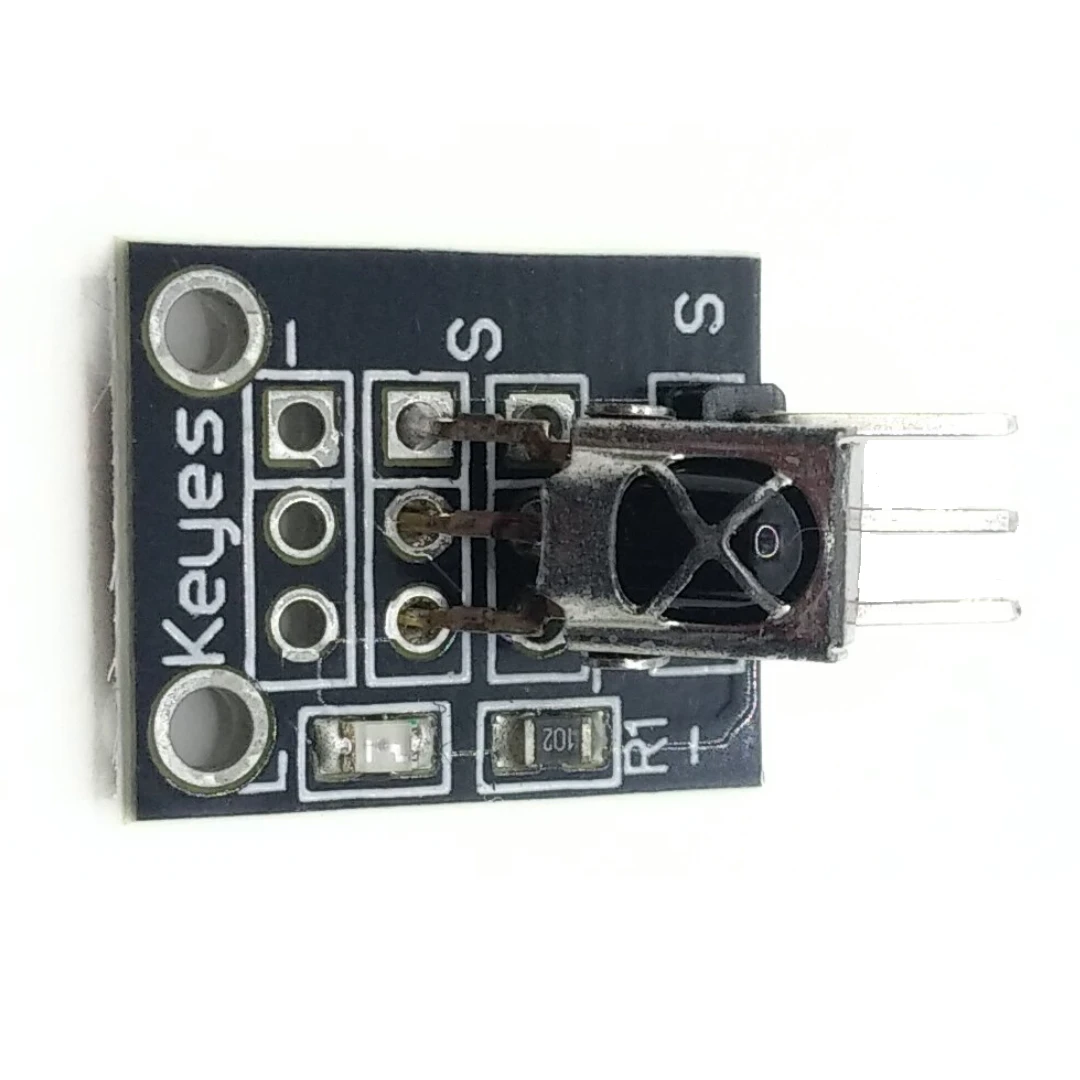

IR Wireless Remote-control Sensor Module The Infrared IR Wireless Remote-Control Module Kit for Arduino consists of ultra-thin infrared remote control and 38KHz infrared receiver module. This mini slim infrared remote control with 20 function keys. Its transmit distances up to 8 meters. Ideal for handling a variety of equipment indoors. IR receiver module can receive a standard 38KHz modulation remote control signal. You can decode the remote-control signal through Arduino programming. You can design a variety of remote-control robots and interactive works. Specifications :- Effective angle: 60 Transmission distance: up to 8m (depending on the surrounding environment, the sensitivity of the receiver, etc). Sticking material: 0.125mmPET Effective life: 20,000 times Static current: 3uA 5uA Dynamic current: 3mA 5mA Battery: CR2025 Button batteries Length (mm): 86 Width (mm):40 Height (mm): 6.5 Weight (gm): 10

Battery: CR2025 160mAh button battery
Effective angle: 60°
Transmission distance: up to 8m (depending on the surrounding environment, the sensitivity of the receiver, etc).
Sticking material: 0.125mmPET
Static current: 3uA – 5uA
