In Stock
SKU: R2-B-8

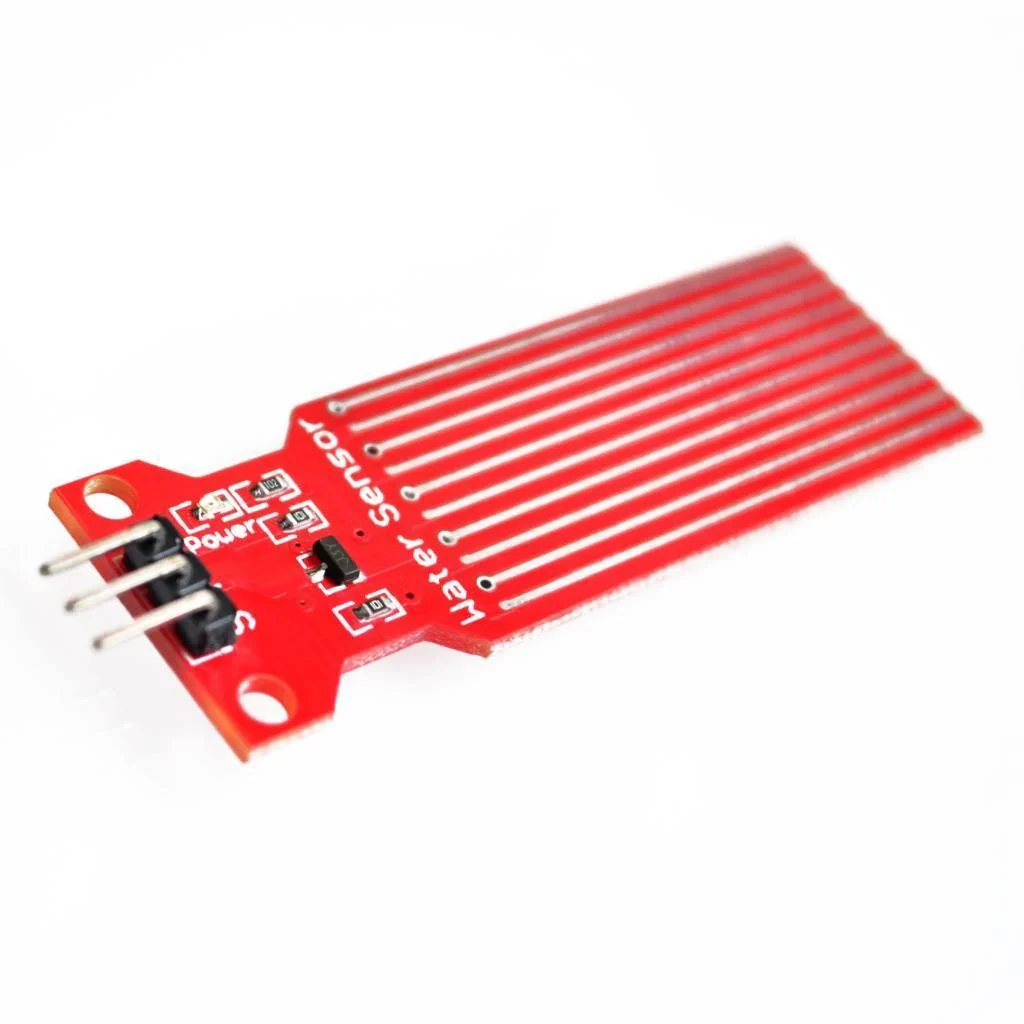

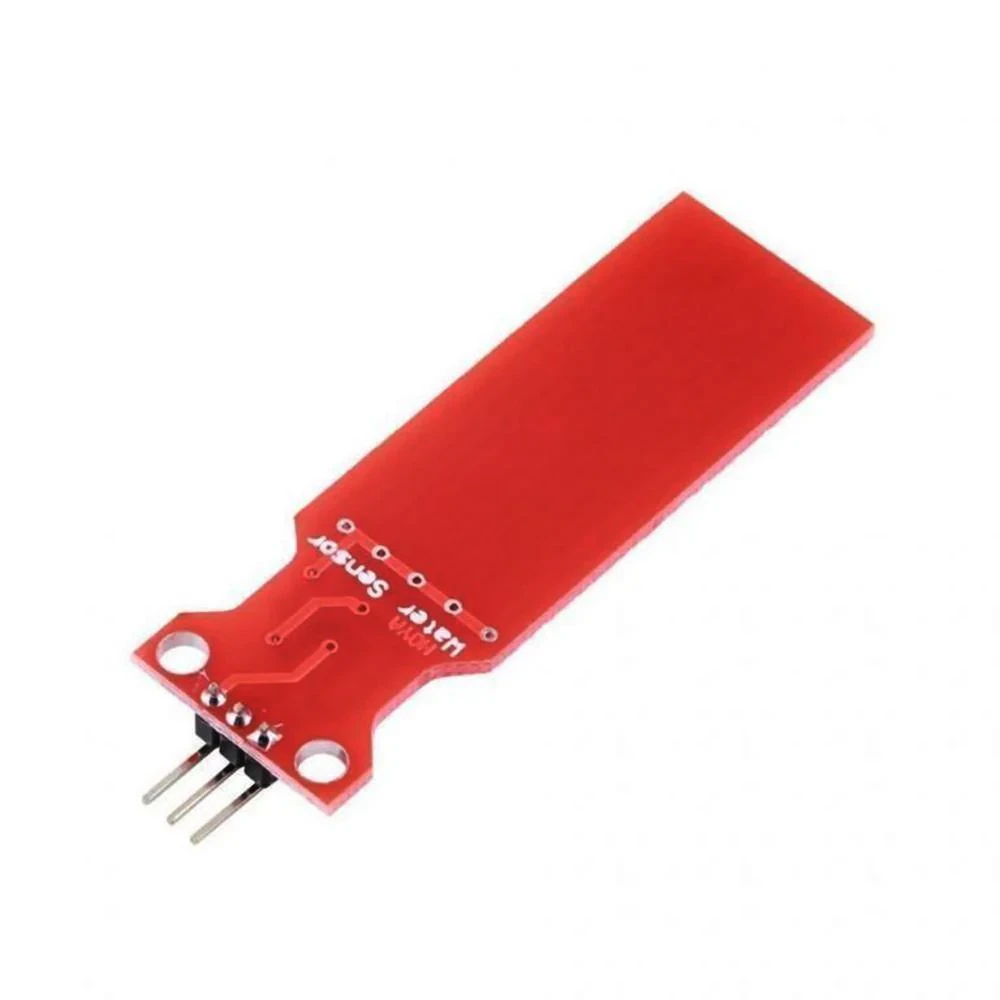

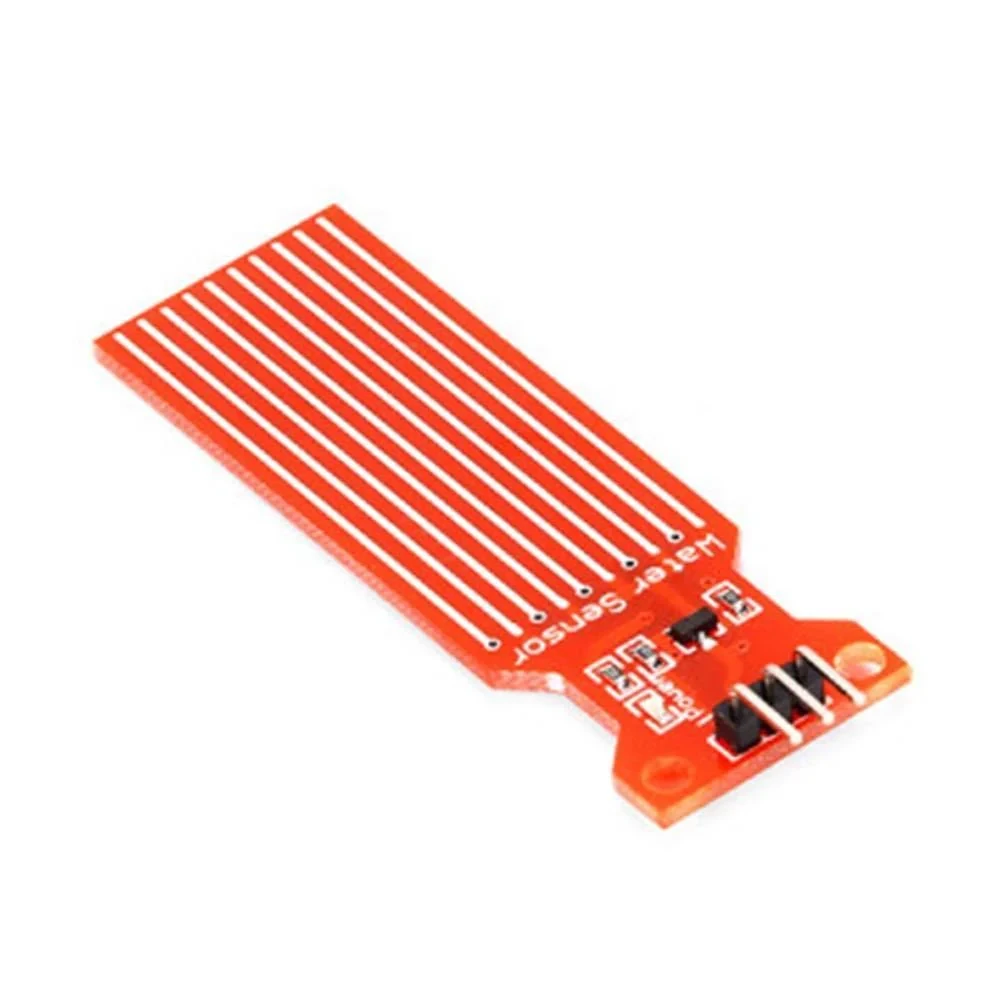

High Sensitivity Water Level Sensor compatible with Arduino

(0) | 0 Reviews | 1 Orders | 0 Wish Listed
₹45.00 (Excluded Tax)
Total price: (Tax : )

Description:
The Water Sensor Brick is specially designed for water detection applications. It can effectively sense rainfall, water levels, or detect liquid leakage. The sensor consists of three main parts: an electronic brick connector, a 1 MΩ pull-up resistor, and multiple bare conducting wires.

This sensor operates by exposing a series of conductive traces connected to ground and sensor traces. When water bridges the traces, it changes the electrical state, allowing the Arduino to detect water presence. You can use this sensor with both digital and analog I/O pins of Arduino boards, such as Arduino UNO, Mega2560, and ADK.

The sensor features high sensitivity, low power consumption, and converts water contact into an analog signal, making it easy to integrate into alarm and detection systems for various applications.

Features:

  • Working Voltage: 5V

  • Working Current: <20mA

  • Interface Type: Analog

  • Detection Area Size: 40mm × 16mm

  • Operating Temperature Range: 10°C to 30°C

  • Sensor Size: 65mm × 20mm × 8mm

  • Weight: 3g

  • Output Voltage Range: 0V to 4.2V

  • High Sensitivity: Quickly detects water presence

  • Low Power Consumption: Efficient design for long-term use

  • Arduino Compatible Interface: Easily connect to Arduino boards

  • Durable and Lightweight Design

Pin Definition:

  • S – Signal Output

  • + – VCC (5V Power Supply)

  • - – GND (Ground)

Applications:

  • Rainfall Detection Systems

  • Water Level Monitoring

  • Liquid Leakage Detection

  • Tank Overflow Alarms

  • DIY Water Detection Projects

Package Includes:

  • 1 x High Sensitivity Water Sensor Brick

Disclaimer:

Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
