ECG Sensor Module Kit

Out of Stock

SKU: R2-D-5

ECG Sensor Module Kit

(0) | 0 Reviews | 1 Orders | 0 Wish Listed

₹400.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Out of stock

Overview
Reviews

Description:
The ECG Sensor Module Kit is designed to measure the electrical activity of the heart and display ECG (electrocardiogram) signals. It is widely used in biomedical STEM projects, health monitoring systems, and educational experiments involving biosignal acquisition.

Specifications:

Type: ECG (Electrocardiogram) Sensor Module
Measurement Signal: Heart electrical activity (bio-potential)
Operating Voltage: 3.3V – 5V
Output Type: Analog signal
Amplification: Built-in instrumentation amplifier
Filtering: Onboard noise filtering (baseline and powerline noise reduction)
Lead Configuration: 3-lead ECG (RA, LA, RL)
Gain: Fixed / adjustable (depends on module)
Sampling Compatibility: Suitable for ADC (Arduino, ESP32, etc.)
Mounting: PCB module with electrode connectors

Features:

Detects real-time ECG waveform
High sensitivity and low noise
Built-in amplification and filtering
Easy interfacing with microcontrollers
Compact and educational-friendly design

Applications:

Biomedical signal monitoring
Heart rate and ECG waveform projects
Wearable health systems (basic)
STEM and educational labs
Research and prototyping

Pin Identification:

VCC → Power supply
GND → Ground
OUT → Analog signal output
LO+ / LO− → Lead-off detection (optional)
RA → Right Arm electrode
LA → Left Arm electrode
RL → Right Leg (reference)

Important Note:

For educational and experimental use only (not medical grade)
Proper electrode placement is required for accurate readings
Avoid electrical noise and interference during measurement
Do not use on individuals with medical implants without supervision

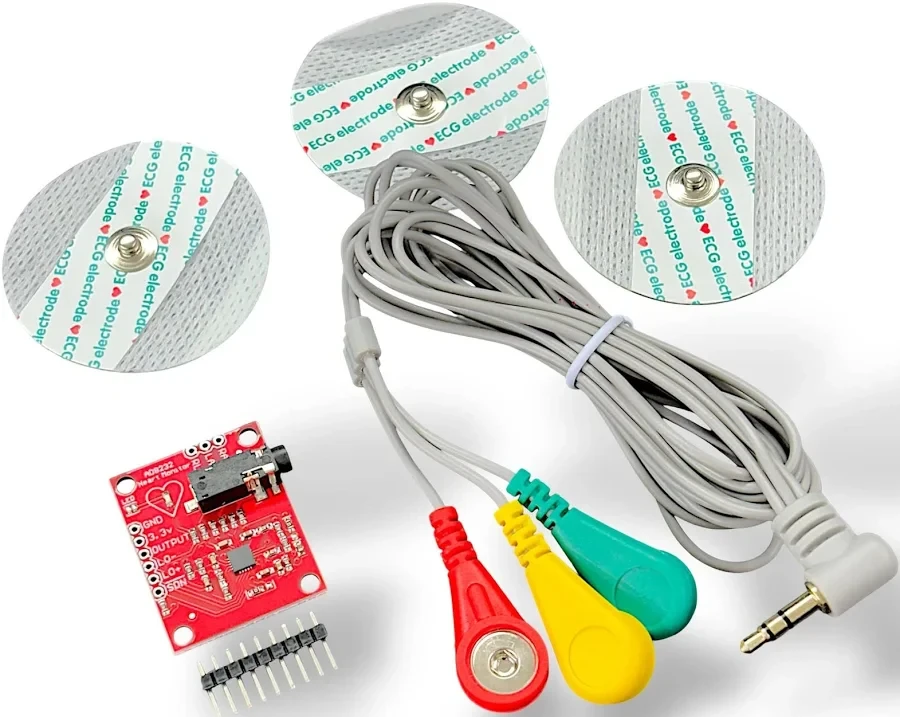

Package Includes:

1 × ECG Sensor Module
1 × Electrode cable set
3 × Disposable electrodes

Disclaimer:
No warranty. No guarantee. No return. No replacement.
