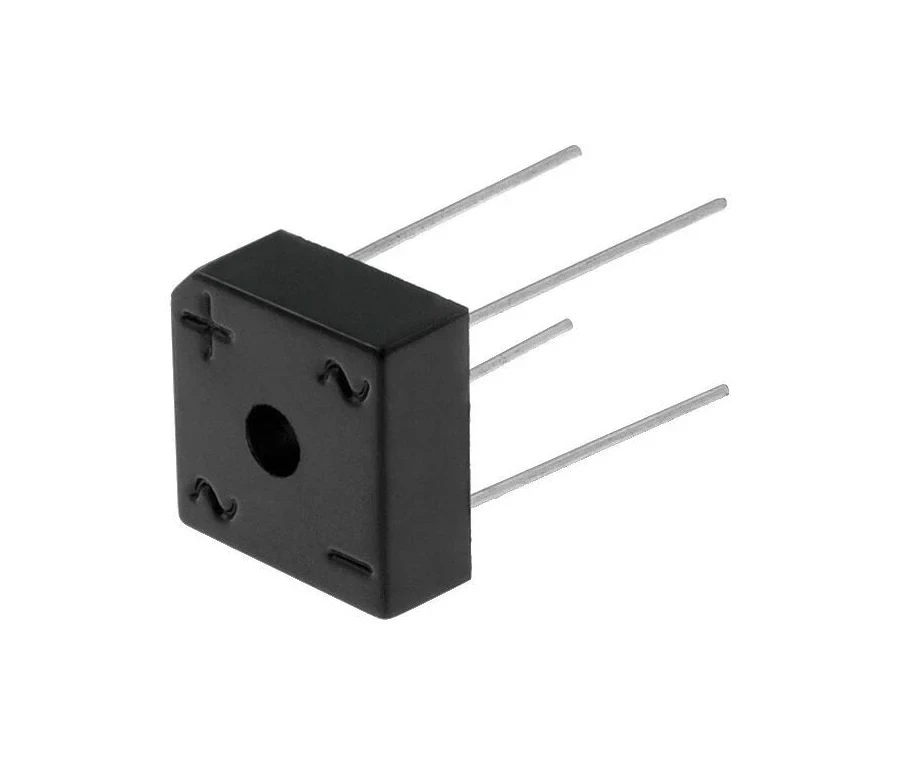

BR34 Bridge Rectifier

In Stock

SKU: R2-A-2-1

BR34 Bridge Rectifier

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹60.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:
The BR34 is a single-phase bridge rectifier used for converting AC input into DC output. It integrates four diodes in a compact package, making it suitable for power supply and rectification applications in electronics and STEM projects.

Specifications:

Type: Bridge Rectifier
Configuration: Single-phase (4 diodes)
Forward Current: 3A
Peak Reverse Voltage: 400V
Forward Voltage Drop: ~1.1V per diode
Output: Full-wave rectified DC
Package: BR type (round / inline)
Mounting: Through-hole
Operating Temperature: up to 150°C

Features:

Compact integrated design
Full-wave rectification
Good current handling capability
Reliable and durable
Easy to use in circuits

Applications:

AC to DC power supplies
Battery chargers
Adapter circuits
SMPS front-end rectification
General-purpose rectification

Polarity Identification:

~ → AC input terminals (2 pins)
- → Positive DC output
− → Negative DC output

Important Note:

Two diodes conduct at a time causing voltage drop
Ensure proper heat dissipation at higher loads
Verify correct pin connections before use

Package Includes:

1 × BR34 Bridge Rectifier

Disclaimer:
No warranty. No guarantee. No return. No replacement
