Description:

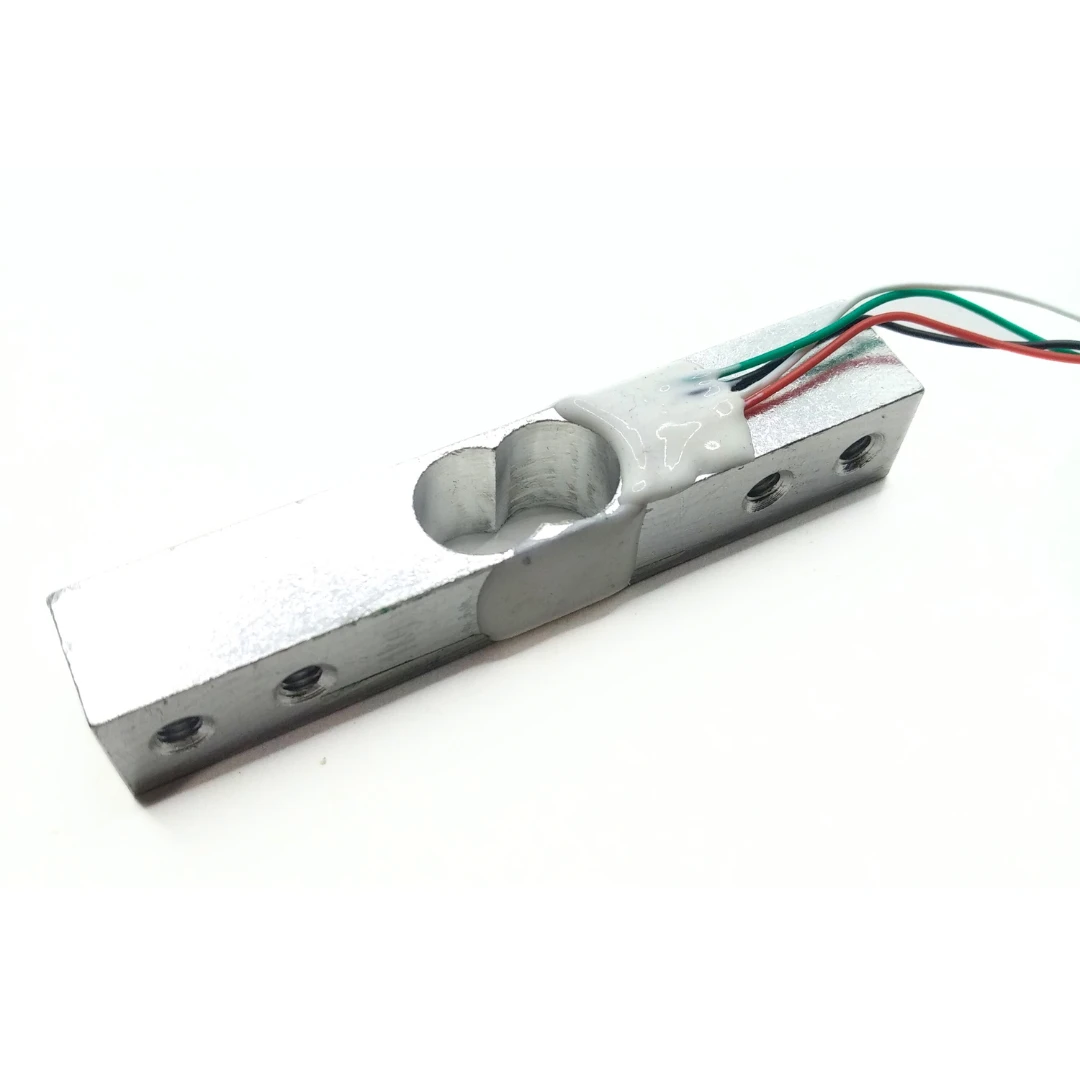

The 5kg Load Cell is a high-precision force sensor designed to convert weight or force into an electrical signal. It uses strain gauges arranged on a flexible element, which deform under applied force, altering their electrical resistance. This change in resistance is then translated into an electrical output, making it ideal for applications such as weighing systems, industrial machines, and force measurement systems.
Features:
High accuracy with combined error of <±0.030% RO
Made of durable aluminium, suitable for various industrial and testing applications
Output in millivolts, requiring an ADC or instrumentation amplifier to interface with a microcontroller
Wide operating temperature range from -35°C to +80°C for diverse applications
Safe overload capacity up to 150% RO, making it reliable for heavy-duty use
Product Specifications:
Capacity: 5kg
Rated Output (MV/V): 2.0 ± 0.15
Accuracy Class: C2
Combined Error (%RO): < ± 0.030
Creep (%RO/30min): 0.03
Temperature Effect on Sensitivity (%RO/°C): 0.0016
Temperature Effect on Zero (%RO/°C): 0.003
Zero Balance (%RO): 1.0
Input Resistance (Ω): 402 ± 6
Output Resistance (Ω): 350 ± 3
Insulation Resistance (MΩ<50V): 5000
Recommended Excitation Voltage (V): 10-15
Compensated Temperature Range (°C): -10°C ~ +40°C
Operating Temperature Range (°C): -35°C ~ +80°C
Safe Overload (%RO): 150
Ultimate Overload (%RO): 200
Load Cell Material: Aluminium
Connecting Cable: ø4.2x350mm
Method of Connecting Wire: Red (+), Black (-), Green (+), White (-)
Application:
Widely used in electronic weighing scales for accurate weight measurement (up to 5kg)
Ideal for industrial machinery and automation systems requiring precise load detection
Can be used in material testing systems for force measurement
Suitable for use in environments with temperature fluctuations due to its wide operating temperature range
Disclaimer:
Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
