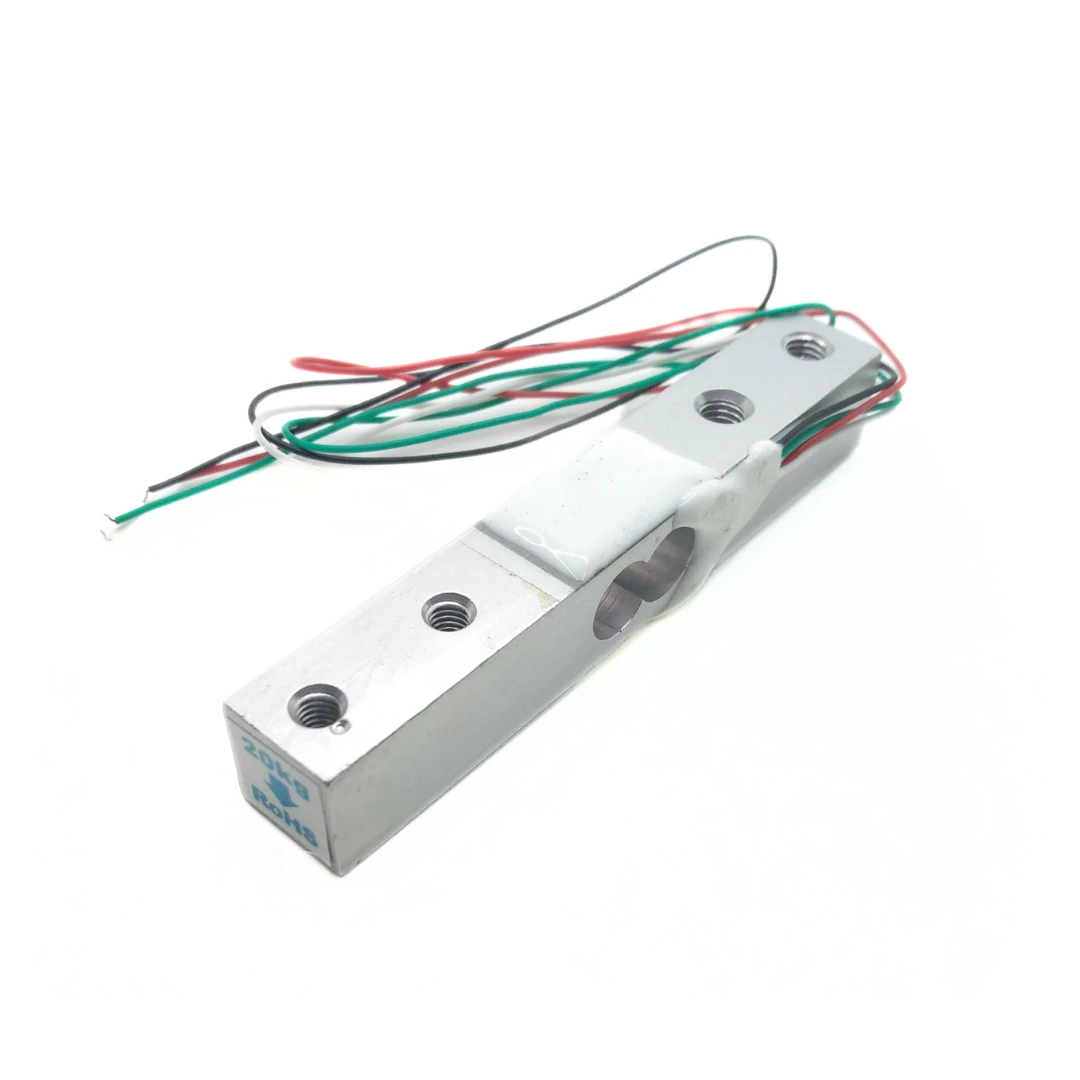

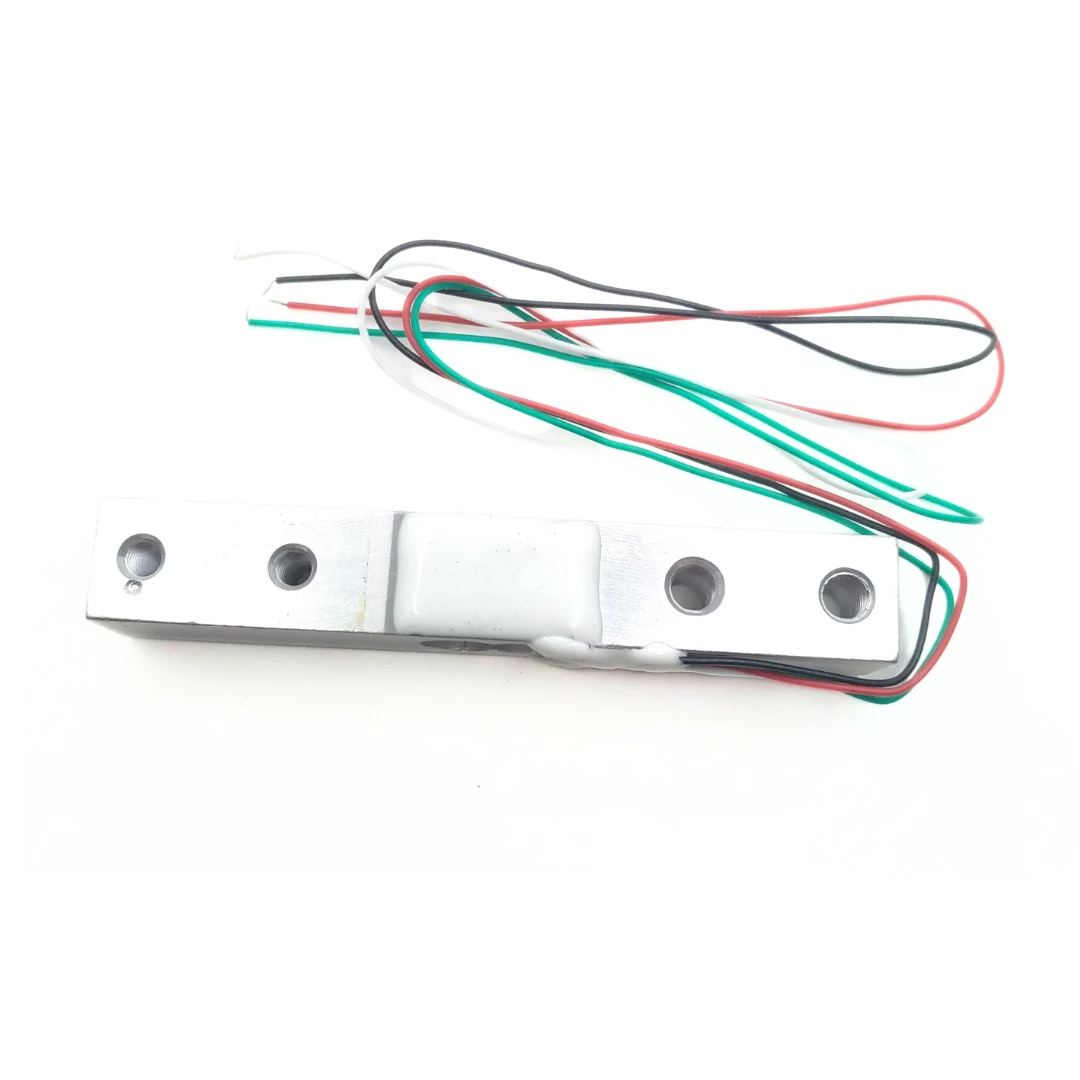

20kg Load Cell Electronic Weighing Scale Sensor

In Stock

SKU: 20KG_SNR_R2-D-2-2

20kg Load Cell Electronic Weighing Scale Sensor

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹96.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:

The 20kg Load Cell is an electronic weighing scale sensor designed to accurately measure weight or force. It uses strain gauges to convert applied force into an electrical signal. This sensor is commonly used in applications like industrial machinery, weighing systems, material testing, and force measurement systems, offering high precision and reliability.

Features:

High accuracy with a combined error of <± 0.030% RO
Wide temperature tolerance, with operating temperature from -35°C to +80°C
Durable aluminium construction for increased reliability
20kg capacity suitable for various weighing applications
Compact platform size (350x350mm) ideal for small to medium scale setups
Easy to connect with a four-wire configuration (Red, Black, Green, White)

Product Specifications:

Capacity: 20kg
Rated Output (MV/V): 2.0 ±0.15
Accuracy Class: C2
Combined Error (%RO): < ± 0.030
Creep (%RO/30min): 0.03
Temperature Effect on Sensitivity (%RO/°C): 0.0016
Temperature Effect on Zero (%RO/°C): 0.003
Zero Balance (%RO): 1.0
Input Resistance (Ω): 402 ± 6
Output Resistance (Ω): 350 ± 3
Insulation Resistance (MΩ<50V): 5000
Recommended Excitation Voltage (V): 10-15
Compensated Temperature Range (°C): -10°C ~ +40°C
Operating Temperature Range (°C): -35°C ~ +80°C
Safe Overload (%RO): 150
Ultimate Overload (%RO): 200
Load Cell Material: Aluminium
Platform Size: 350x350mm
Connecting Cable: ø4.2x350mm
Method of Connecting Wire: Red (+), Black (-), Green (+), White (-)

Application:

Used in electronic weighing scales for accurate weight measurement
Applicable in industrial machinery for force measurement
Ideal for material testing applications requiring precise load detection
Can be integrated into automated systems for weight-based control in various industries

Disclaimer:
Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
