Description:

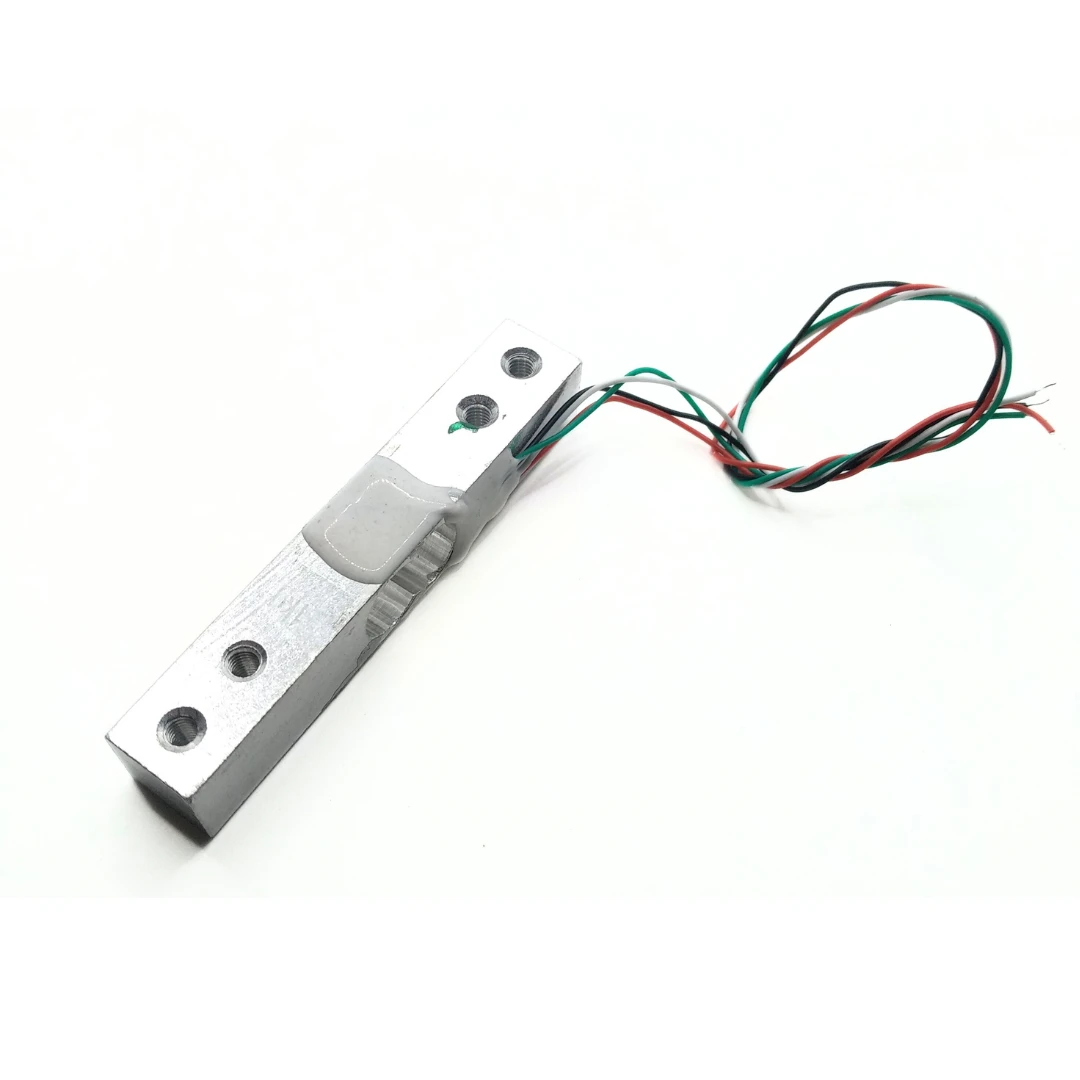

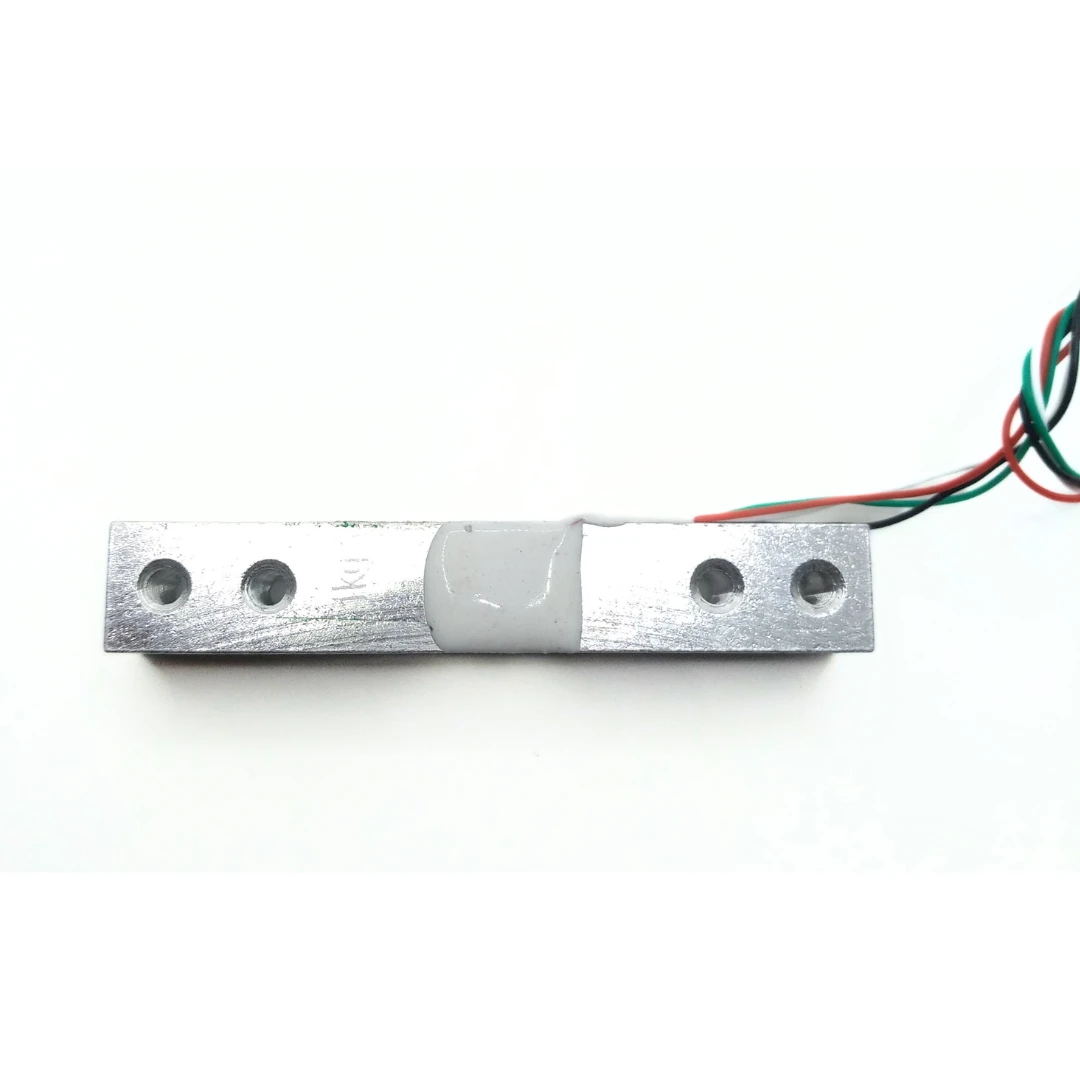

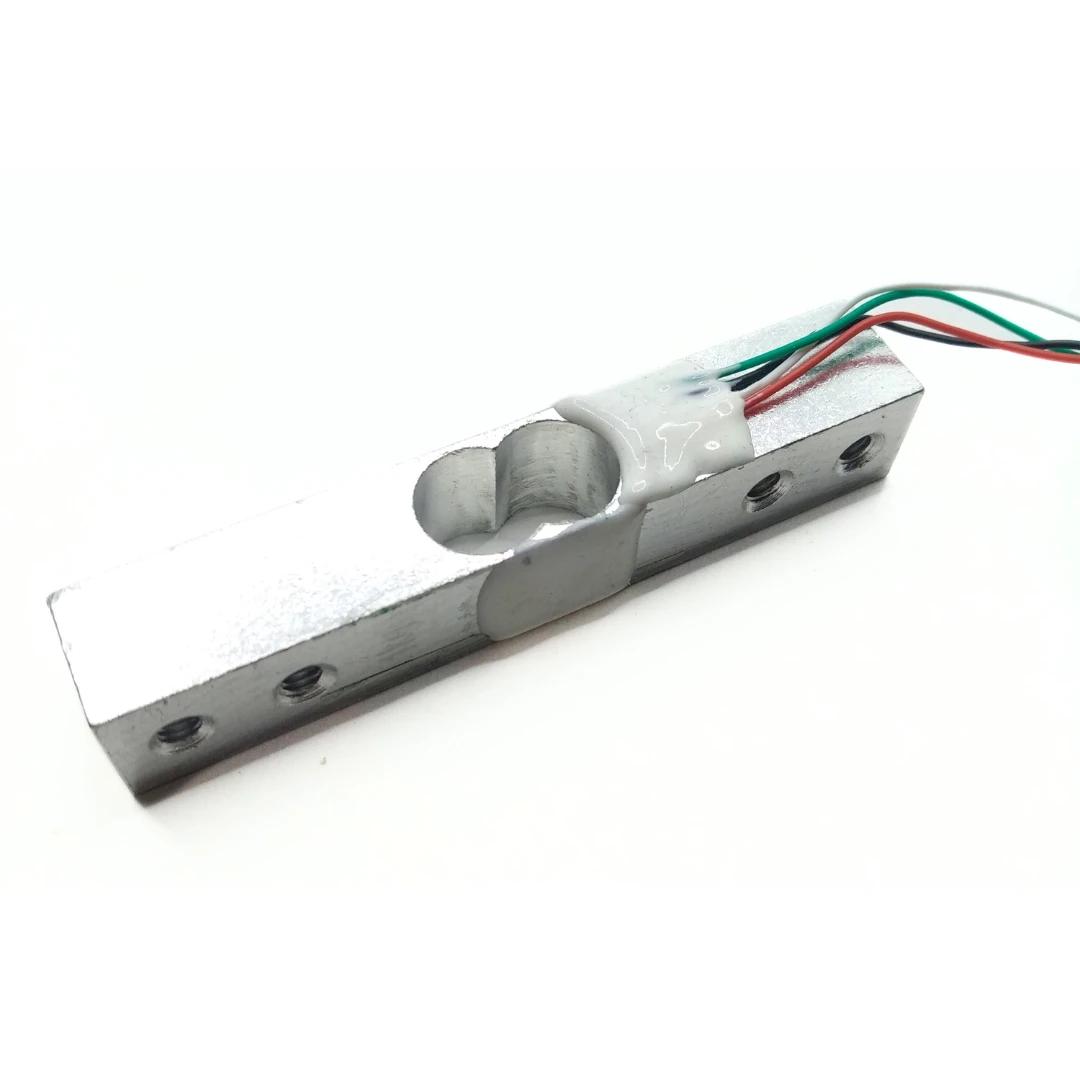

The 1kg Load Cell is a precise transducer used to convert the weight or force applied to it into an electrical signal. Utilizing strain gauges, it measures the deformation caused by applied forces, which results in a change in electrical resistance. This change is then converted into an output signal, making the load cell ideal for use in various weight measurement and force testing applications, such as in industrial machinery, electronic weighing scales, and material testing systems.
Features:
High accuracy with a combined error of less than ±0.030% RO
Constructed from durable aluminium material for long-lasting use
Wide operating temperature range from -35°C to +80°C
Suitable for use in industrial, commercial, and research applications that require precise weight or force measurement
Safe overload protection of up to 150% RO, with ultimate overload capacity of 200% RO
Product Specifications:
Capacity: 1kg
Rated Output (MV/V): 2.0 ± 0.15
Accuracy Class: C2
Combined Error (%RO): < ± 0.030
Creep (%RO/30min): 0.03
Temperature Effect on Sensitivity (%RO/°C): 0.0016
Temperature Effect on Zero (%RO/°C): 0.003
Zero Balance (%RO): 1.0
Input Resistance (Ω): 402 ± 6
Output Resistance (Ω): 350 ± 3
Insulation Resistance (MΩ<50V): 5000
Recommended Excitation Voltage (V): 10 ~ 15
Compensated Temperature Range (°C): -10 ~ +40
Operating Temperature Range (°C): -35 ~ +80
Safe Overload (%RO): 150
Ultimate Overload (%RO): 200
Load Cell Material: Aluminium
Connecting Cable: ø4.2x350mm
Method of Connecting Wire:
I/P: Red (+), Black (-)
O/P: Green (+), White (-)
Application:
Suitable for use in electronic weighing scales to measure weights up to 1kg with high accuracy
Ideal for industrial machinery and automated systems where precise force measurement is required
Can be integrated into material testing systems for force or load measurement
Used in research environments that require consistent, reliable load data
Disclaimer:
Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
